| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W825 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | 1phase, AC220± 10%, 50 Hz | Weight: | 50kg |
|---|---|---|---|
| Extarnal Dimensions: | 600x460x680mm | Water Tank Capacity: | 3.7Ld |
| Sample Chuck Area: | 100cm² | Accuracy: | 0.2%FS |
| Water Pressure Rise Rate: | 10 Or 60 CmH2O/min | Measuring Range: | 500pa-200kpa |
| High Light: | 0.2%FS Tensile Strength Testing Equipment,Capacity 3.7Ld Tensile Strength Testing Equipment,Capacity 3.7Ld Hydrostatic Pressure Tester |
||

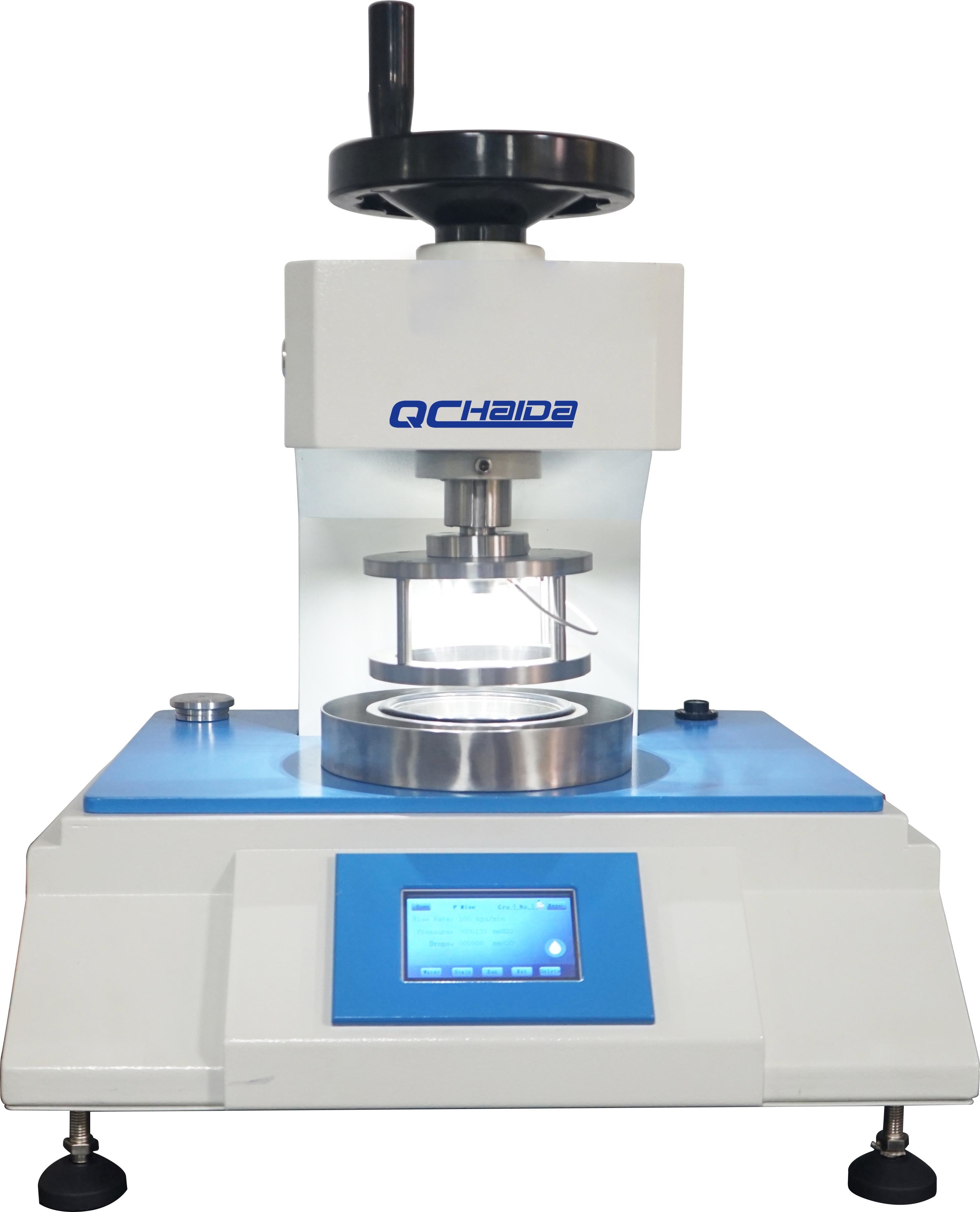

0.2%FS Tensile Strength Testing Equipment Hydrostatic Pressure Tester DIN 53886
Application
Hydrostatic Pressure Tester is used for testing the water permeability resistance to the compact cloth such as canvas, linoleum, tenting, tarpaulin, non-woven fabrics, rain resistant dress fabrics, coating fabrics and so on.
Testing standard
AATCC 127 DIN 53886 JIS L1092 EN ISO 20811 ISO 811
Technical parameters
| Technical Index | HD-W825 |
| Measuring range | 500pa-200kpa |
| Water pressure rise rate | 10 or 60 cmH2O/min |
| Accuracy | 0.2%FS |
| Unit | cmH2O, Pa, kPa, mmHg, mmH2O, PSI, Bar (optional) |
| Sample chuck area | 100cm² |
| Water tank capacity | 3.7Ld |
| Extarnal Dimensions | 600x460x680mm |
| Weight | 50kg |
| Power source | 1phase, AC220± 10%, 50 Hz |
| Test methods | Boost test, Constant pressure timing test, Water leakage test, Deflection test |
