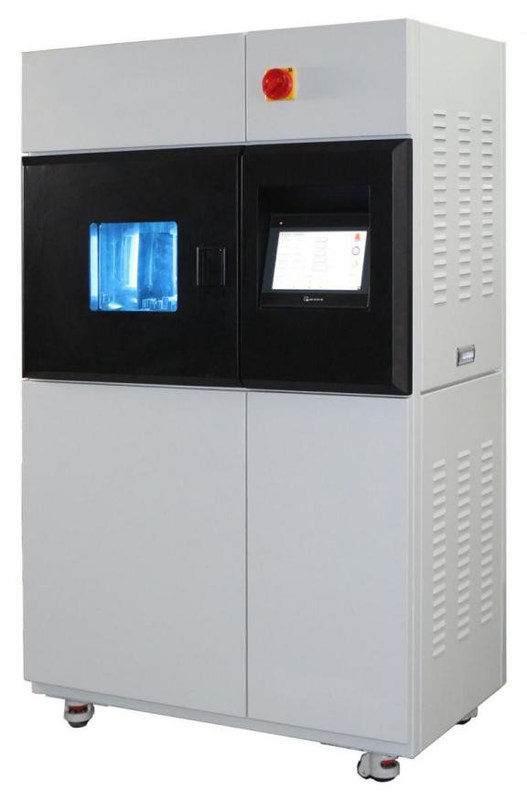

350kg Water Cooling Light Fastness Tester For Rubber/Plastic/Textile,AC380V 10kw

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W832
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Test Time Control Range: ≤10000h
Source: AC380V 50Hz 10KW Weight: 350kg
Dimensions: 1200×900×1800mm Spray Cycle: ≤1000h
Light Cycle: ≤1000h Use: Rubber, Plastic
High Light:

10KW Color Fastness Testing Equipment

,

AC380V Color Fastness Testing Equipment

,

AC380V light fastness tester


Product Description

350kg Water Cooling Light Fastness Tester For Rubber/Plastic/Textile,AC380V 10kw





Usage



Used in rubber, plastic, paint, coating, petrochemical, automobile, textile and other industries products and materials to perform solar radiation simulation light fastness, light sweat composite color fastness and light aging tests, through simulated light, rain, spray , Alternating light and dark, temperature and humidity and other climatic conditions to determine the changes in properties such as fading, aging, deterioration, transmittance, peeling, hardness, and softening of material products.





Testing Standard



Textile: GB/T 8427, GB/T 8430, GB/T 14576, GB/T 16991, GB/T 1865, GB/T 15102, GB/T 15104, ISO 105-B02, ISO 105-B04, ISO 105- B06, AATCC TM 16

Artificial board: GB/T 15102, GB/T 15104

Automotive interior: ISO 105, ASE J1885KJ, ISO 11341, ISO 4892, ISO 03917, ISO 11341, ISO 4892-2

Leather: PV 1303, PV 3929, PV 3930, DVM 0067-MA, HES D6601



Standard features



Technical Index HD-W832
Temperature control range of test chamber

Conventional configuration: 30~90℃;

Resolution: 0.1℃

The humidity control range of the test chamber

Light cycle: 20~70RH%; resolution: 0.1RH%

Dark cycle: 30~95RH%; resolution: 0.1RH%

Standard blackboard thermometer (optional)

35~125℃;

Accuracy: ±1℃;

Resolution: 0.1℃

Blackboard thermometer

35~120℃;

Accuracy: ±2℃;

Resolution: 0.1℃

Test time control range ≤10000h
Irradiance control range

0.60~3.08W/m²@420nm(Standard);

Accuracy: ±0.02W/m²@420nm; digital setting, closed loop automatic compensation;

340nm, 300~400nm or 280~800nm)(optional );

Rated power of xenon arc lamp 6000W
Rotation speed of sample holder 3~7rpm
The number of sample holders that can be loaded 33 pieces of ISO standard, 21 pieces of AATCC standard
Separate timing for each sample holder ≤10000h
Light cycle ≤1000h
Spray cycle ≤1000h
Dimensions 1200×900×1800mm
Weight 350kg
Power source AC380V 50Hz 10KW

























































































FAQ



What is the order process?


Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.




Do you accept customization service?


Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.





How about the packing for machine, is it safely protected during transportation?


Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
