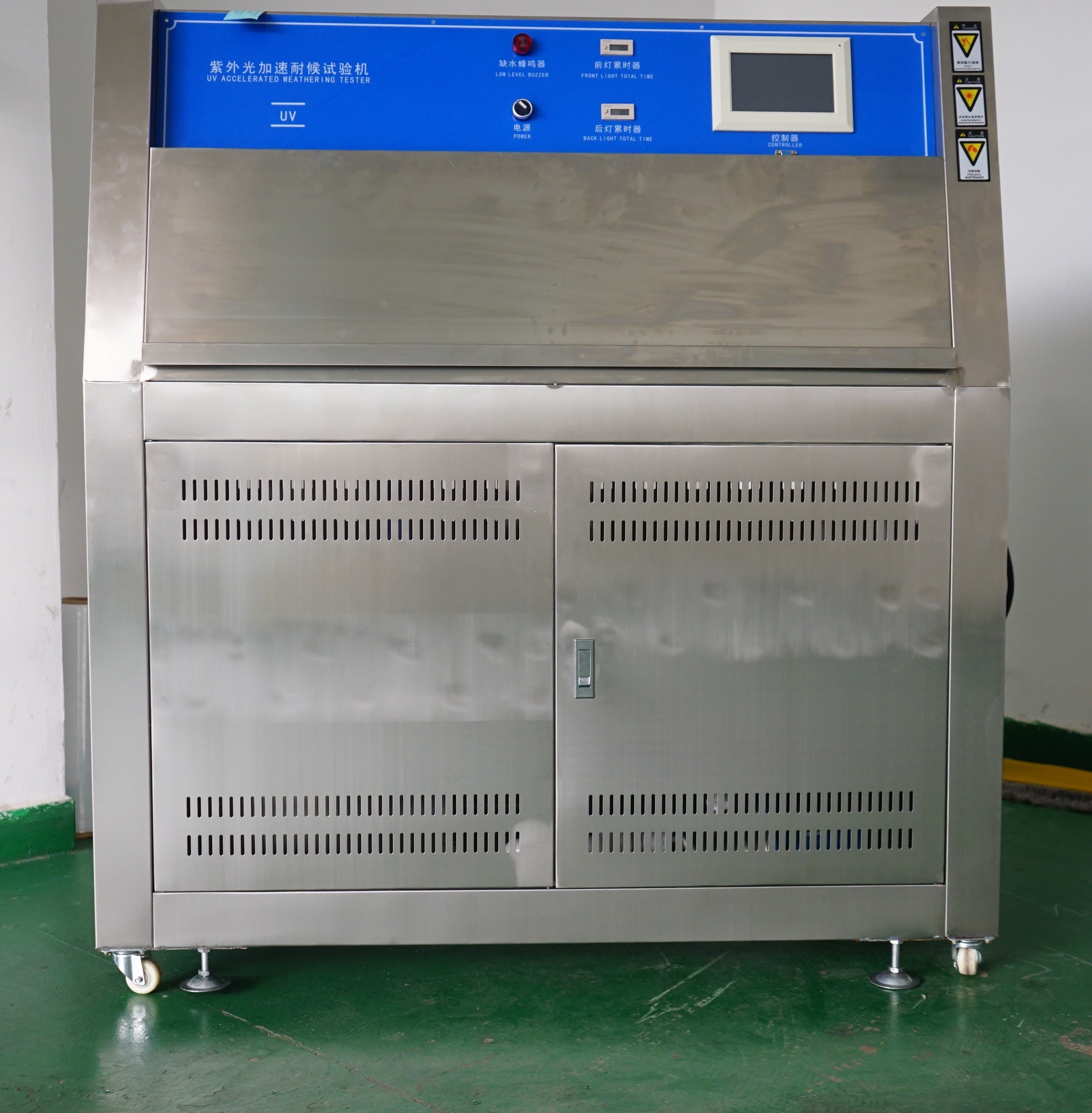

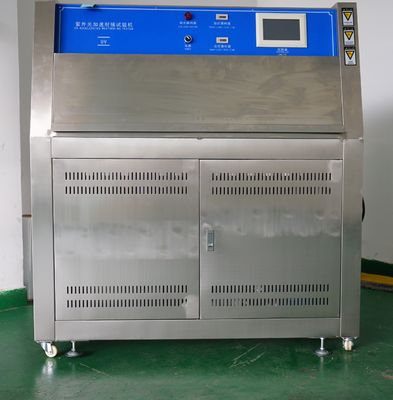

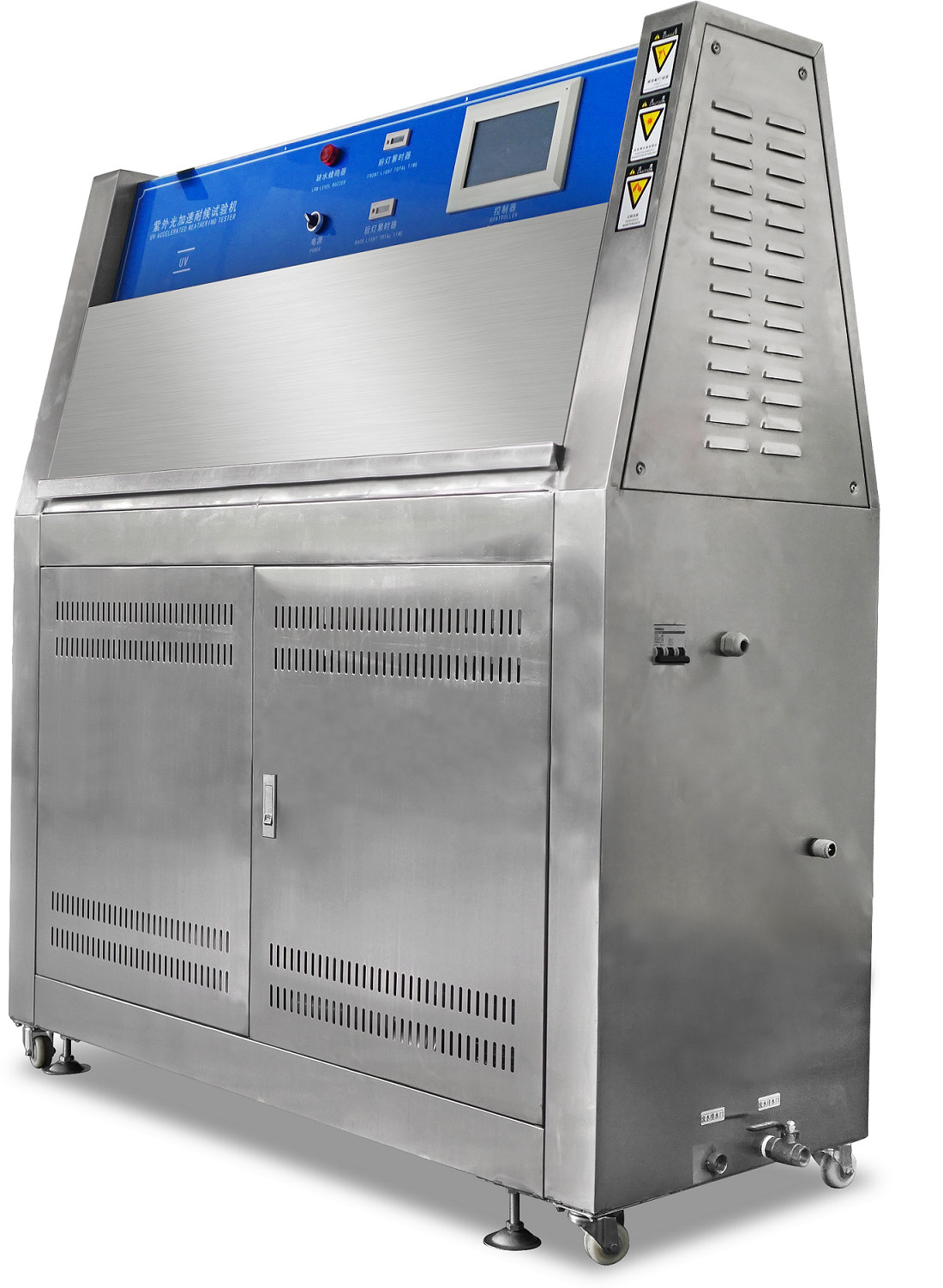

LCD Touch Screen UV Aging Test Chamber Fabric Testing Machine 70 Degree

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E802-1
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Temperature Range: RT To 70℃
Lamp Power: 40W/Piece Testing Time: 0~999H, Adjustable
Material: SUS#304 Stainless Steel Humidity Range: ≥75%RH
Irradiance Range: 0.45~0.90W/m2 Distance From Sample To Lamp: 55±2mm
High Light:

LCD UV Aging Test Chamber

,

SUS304 UV Aging Test Chamber


Product Description

LCD Touch Screen UV Aging Test Chamber Fabric Testing Machine 70degree







UV AGING CHAMBER APPLICATIONS


Simulate the sun, rain spray and condensation resulting damage to test the fabric materials by exposure to sunlight with moisture and temperature.

To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.

Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.







TECHNICAL PARAMETERS



Technical Index HD-E802-1
Chamber Dimension (W*D*H) 1300*500*1460mm
Chamber Material SUS#304 stainless steel
Temperature Range RT to 70℃
Temperature Fluctuation ≤±1.0℃
Temperature Uniformity 3℃
Controller Programmable controller, LCD touch screen
Control Mode Balance temperature humidity control (BTHC)
Test Cycle Setting Exposure, condensation and water spray test cycle is programmable
Water Spray Cycle Spray 18mins in every 120mins / spray 12mins in every 60mins
Distance from Sample to Lamp 55±2mm
Centre Distance between Lamps 65~70mm
Irradiance Range 0.45~0.90W/m2
UV Lamps Atlas UV-A: 315-400nm (8pcs, 1200h lifetime)
Atlas UV-B: 280-315nm (8pcs, 1200h lifetime)
Lamp Power 40W/Piece
Specimen Size 75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm




































TEST CRITERIA

ISO 4892-3, ASTM G154 and etc.











     UV aging test chamber


COMPANY  INFORMATION

Haida International Equipment Co,Ltd is a National "High-tech Enterprise"(certified in 2016),integrating R&D,manufacturing and brand marketing.Our textile testing instruments meets with the requirements of ISO, ASTM, AATCC, BS, GB, DIN, EN, JIS. We are committed to providing high quality testing instruments.We always adhered to the strict and professional concept and strictly control the quality of products, and provide our customers with high-quality testing instruments,first-class service and competitive prices.

We are looking forward to cooperating with customers all over the world. We can not only offer standard textile testing machines, but also customized machines according to your request. Our professional team and global agents(United Kingdom, Vietnam, Bengal, Malaysia&Singapore, Turkey and Pakistan)will provide you with comprehensive pre-sales consultation and timely after-sales service.Don't hesitate to tell us your requirement, we will do our best to meet your needs.
