| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-P306-8 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Interface: | LCD Display |
|---|---|---|---|
| Maximum Stroke: | 24 ± 0.5mm, 60.5 ± 0.5mm | Sample Loading Pressure Hammer: | 2385±10g |
| Dimension: | 600x650x320mm | Use: | Textile The Similar Fabric. |
| High Light: | LCD Display Textile Testing Equipment,600x650x320mm Textile Testing Equipment,Automatic Martindale Abrasion Tester |
||

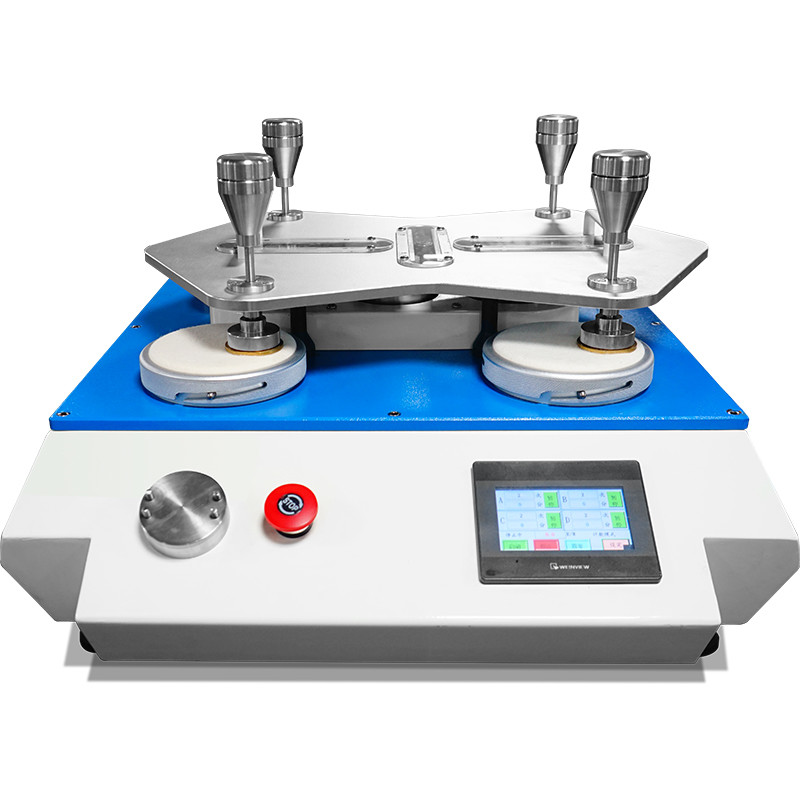

Automatic Martindale Abrasion Tester ,Textile Testing Equipment LCD display
PRODUCT DESCRIPTION
Martindale abrasion tester mainly applies to the pilling & abrasion resistance test of textile the similar fabric.
Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented
for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.
TEST STANDARD
ASTM D4970, ISO12945-2 and other pilling degree test;
ASTM D4966, ISO12947 and other fabric abrasion tests.
STANDARD PARAMETER
| Technical Index | HD-P306-4 | HD-P306-6 | HD-P306-8 |
| Consumables | Baize 4,Testing Cotton 4 | Baize 6,Testing Cotton 6 | Baize 8 ,Testing Cotton 8 |
| Interface | LCD display | ||
| Count display | Projected Count: 0 ~ 999 999 times;Cumulative count: 0 ~ 99 9999 times | ||
| Maximum stroke | 24 ± 0.5mm, 60.5 ± 0.5mm | ||
| Loading : | a. Holder:200±1g | ||
| b. Dress material counter weight: 395±2g | |||
| c. Furnishings/Leather material counter weight: 594±2g | |||
| d. Stainless steel butterfly slice: 260±1g | |||
| Abrasion chunk effective rub diameter | A model: 200g(1.96N,9KPa) , abrasion head￠ 28.8 -0.084mm | ||
| Pace speed of the holder | 50-2r/min | ||
| Sample loading pressure hammer | 2385±10g | ||
| Diameter of abrasion fabric | 140mm | ||
| Diameter of Specimen | 38mm | ||
| Power | AC 220V/50Hz | ||
| Dimension | 600x650x320mm | 750x960x520mm | / |
