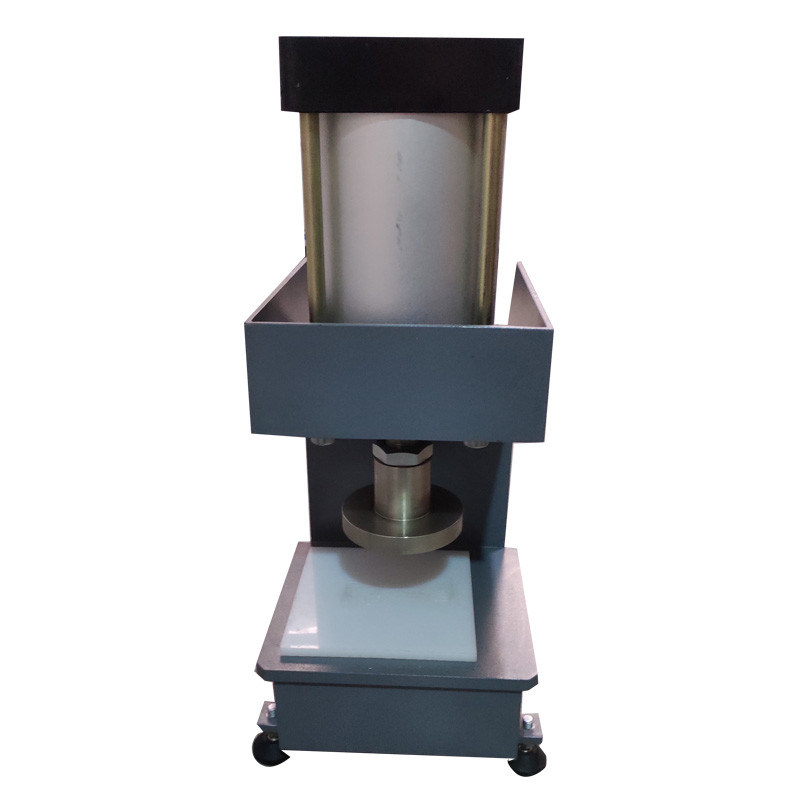

50Mm Pneumatic Cylinder Stroke Automatic Sample Cutter 60HZ Capacity 1T

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P839-1
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Capacity: 1T Pressure Source: Air Pressure More Than Min.5kg/cm2
Pneumatic Cylinder Stroke: 50 Mm Cut Thickness: 15 Mm
Test Space: 400×350×100mm Dimension: 47×40 ×70cm
High Light:

1T Capacity Automatic Sample Cutter

,

50Mm Automatic Sample Cutter


Product Description

Capacity 1T 50 Mm Pneumatic Cylinder Stroke Automatic Sample Cutter 50~60HZ









Application


Pneumatic sample cutter is used to cut many kinds of sample and it is suitable for lab to cut rubber, plastic, leather and so on. Pneumatic sample cutter adopts pneumatic method to offer required pressure to cut all kinds of sample









Specifications



Item Specifications
Capacity 1T
Pressure source Air pressure more than Min.5kg/cm2
Pneumatic cylinder stroke 50 mm
Cut thickness 15 mm
Test space 400×350×100mm
Dimension 47×40 ×70cm
Power 1∮,AC 220V, 50~60HZ, 3A
Weight Approx. 95kg









sample cutter                 sample cutter




Why choose us?



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:

12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con.



Please feel FREE to contact us if you have any needs. If you want to know more information.

Please leave a message below and click " SEND "

Thanks for your time and attention!
