| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W811-4 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | No. Of Boxes: | 4 Nos. |
|---|---|---|---|
| Size Of Wooden Boxes Inside (Before Cork Lining): | 235 X 235 X 235 Mm (As Per Standards) | Digital Counter: | 0–99999 |
| Dimensions: | 1200 X 500 X 800 Mm | Weight: | 60 Kg |
| High Light: | Stainless Steel Pilling Test Equipment,Programmable Pilling Test Equipment,Textile Fabric Pilling Test Machine |
||

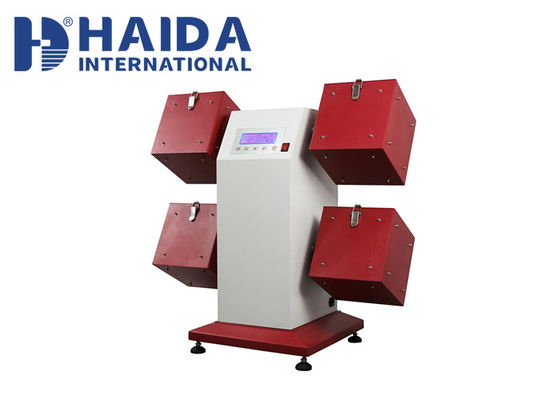

Fully Automatic Programmable Textile Testing Instrument Pilling Test
Product introduction:
Pilling is a fabric surface phenomenon characterized by little balls formed by entangled fibers clinging to the surface. These are formed during wearing or washing by the entanglement of the loose fibers, which protrude from the fabric surface, and development of these into spherical bundles anchored to the fabric by a few unbroken fibers. These give a very unsightly look to the garments. To determine the tendency to form pills, test specimens taken from the fabric sample are rubbed against each other under controlled conditions. The appearance of the test specimen, after rubbing for the specified period, is compared against standard rating photographs (Woven pilling photographs and knitted pilling photographs) for grading the fabric. ICI Pilling and Snagging Tester is specially designed equipment to access resistance to pilling of any type of fabrics as per ICI pilling system.
Introduction
ICI Pilling tester to determine the pilling and snagging resistance of textile fabrics.
Test standard
ISO 12945-1,BS 5811,IWSTM 152,NEXT 19,JIS L1076,M&S P18,M&S P21A,BS 8479
Test Procedure
The fabrics to be tested must be wound on special pipes of polyurethane (by means of the fitting kit) which are then placed into the cork panelled boxes. After setting the required rotation number (99999 max.), press the function key to start testing. Once the preset cycle is over, the pilling forming on the sample is evaluated and classified by comparison with the special set of standard photographs.
When using the kit for the snagging test, the fabrics deterioration caused by the entangling into pointed materials with known characteristics is simulated.
Unmounted Cork Liners Standard Pilling Tubes
Salient Feature
1. Specially designed equipment to access resistance to pilling of any type of fabrics as per ICI pilling system.
2. Two Pilling Boxes for better efficiency of work.
3. Microprocessor based controller with latest aesthetics.
4.3.2mm Standard cork lining inside the boxes for proper pilling action.
5. Finest Quality Molded Polyurethane Pilling Tubes supplied (16Nos).
6. Specially designed standard size boxes meet the standard specifications.
7. Complete with all accessories-pilling tube, template, 19mm PVC Tape etc.
8. Smooth precision engineered components for excellent performance.
9. Innovative specimen-mounting jig saves efforts and reduces the chance of damage or distortion to the sample.
Technical parameter
| No. of Boxes | 4 Nos. |
| Size of Wooden Boxes inside (Before Cork Lining) | 235 x 235 x 235 mm (As Per Standards) |
| Thickness of Cork Lining | 3.2 mm (As Per Standards) |
| Speed of Rotation of Boxes | 60 R.P.M. (± 2 rpm.) (As Per Standards) |
| Size of Test Specimen | Length 140 mm + 1 mm (As Per Standards) |
| Diameter 31.5 mm + 1 mm | |
| Wall Thickness 3.2 mm + 0.5 mm | |
| Weight 52.25 gms. + 1 gms | |
| Digital Counter (Preset Type) | 0–99999 |
| Dimensions | 1200 x 500 x 800 mm |
| Power supply | 220V, 50Hz or 110V, 60Hz |
| Weight | 60 Kg |
About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
