| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W835 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Range: | 0 ~ 1000g |
|---|---|---|---|
| Test Speed: | 1 ~ 40mm/s, Arbitrary Settings | Sample Size: | 100 X 100mm |
| Dimensions: | 500 X 400 X 600 Mm | Weight: | 25kg |
| Source: | 220V, 50Hz | Printing System: | Embedded Thermal Printer |
| High Light: | HAIDA air permeability tester for textiles,40mm/S air permeability tester for textiles,40mm/S air permeability test for fabric |
||

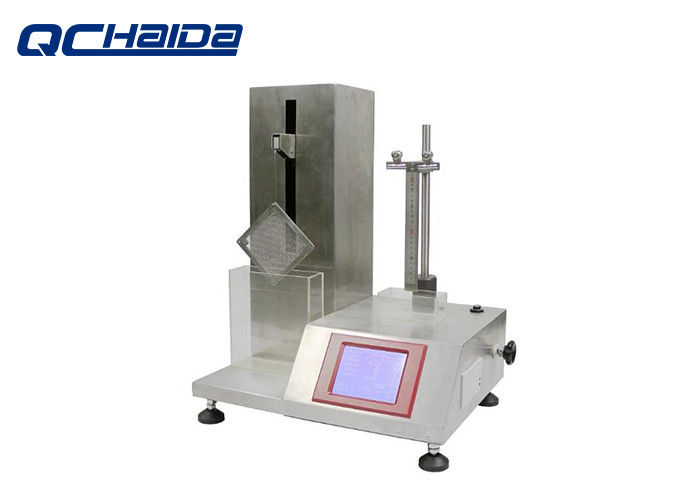

Arbitrary Settings Electronic Specific Absorbency Tester Test Speed 1 ~ 40mm/s
PRODUCT DESCRIPTION
Test methods for the evaluation of some aspects of the behaviour of non-woven fabricsion the presence of liquids. In particular(the liquid absorbency time; the liquid absorptive capacity; the liquid wicking rate).
DESIGN STANDARD
ISO 9073-6:2000 Textiles - Test methods for non-woven Part 6: Absorption
STANDARD PARAMETERS
| Technical Index | HD-W835 |
| Range | 0 ~ 1000g |
| Test speed | 1 ~ 40mm/s, arbitrary settings |
| Liquid drop time | 0 ~ 999s, arbitrary settings |
| Sample size | 100 x 100mm |
| Printing system | embedded thermal printer |
| Dimensions | 500 x 400 x 600 mm |
| Weight | 25kg |
| Power source | 220V, 50Hz |
See what company you will work with?
1. Professional Manufacturer of various kinds of testing equipments over 15 years, defect rate is controlled under 0.02%.
2.Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.
3.ISO 9001:2008 Quality Management System Certificate.
4. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…
5. Our Marketing Investigation Department will send Marketing Research Report to you each season.
6. We are trusted by SCS, INTERTEK, HST, COFCO, ESC, KBMC, LENOVO, PANASONIC, EMC, etc.
7.We accept 100% inspection.
8. Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us.
