HAIDA 1200mm Stroke Leather Tester With DC Variable Speed Drive System

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-B609B-S
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Force Reading: Kgf, Ibf, N, KN, T Etc
Load Cell Resolution: 1/250,000 Load Precision: ≤0.5%
Software: TM 2101 Stoke: 1200mm Including Fixture
Force: 100kg,200kg,500kg,1000kg,2000kg(optional) Control System: LCD ,PC With Win. 10 System(Computer Optional)
High Light:

1200mm Stroke Leather Tester


HAIDA Leather Tester


HAIDA Universal Tensile Test Machine

Product Description

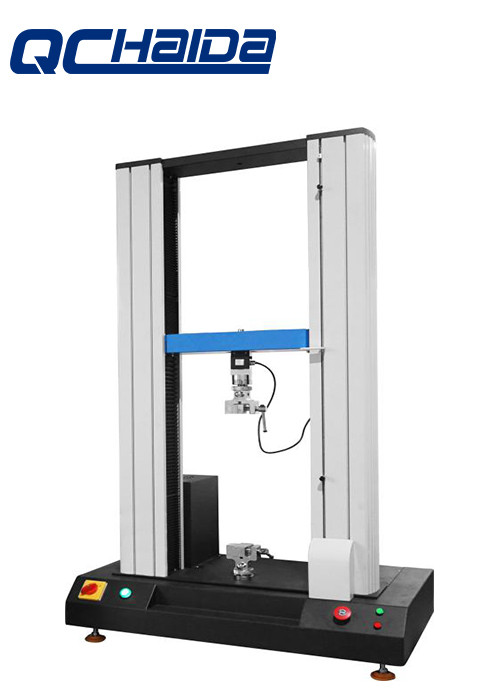

Universal Tensile Test Machine(Double Column) For Textile With DC Variable Speed Drive System



  • Deformation under defined load: Test deformation under defined load of tested sample
  • Load under defined deformation: Test load under defined deformation of tested sample
  • Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
  • This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.



Technical Index HD-B609B-S (Single column) HD-B604B-S (Double column)
Test Fixture Can be customized according to standards
Force 50Kg,100kg,200kg(optional) 100kg,200kg,500kg,1000kg,2000kg(optional)
Load cell Germany brand load cell for high accuracy
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Stoke 900mm including fixture 1200mm including fixture
Test speed 0.1~500mm/min (adjustable by PC)
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features


Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat
