| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-B609-1 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | each set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Working Mode: | CRE Principle, Microcomputer Control | Max. Force: | 2500N |
|---|---|---|---|
| Test Accuracy: | ≤0.2%F·S | Dimension: | 670x480x1440mm |
| High Light: | SS Case Air Permeability Tester For Textiles,0.8m/s Air Permeability Tester For Textiles,Touch Screen Air Permeability Tester |
||

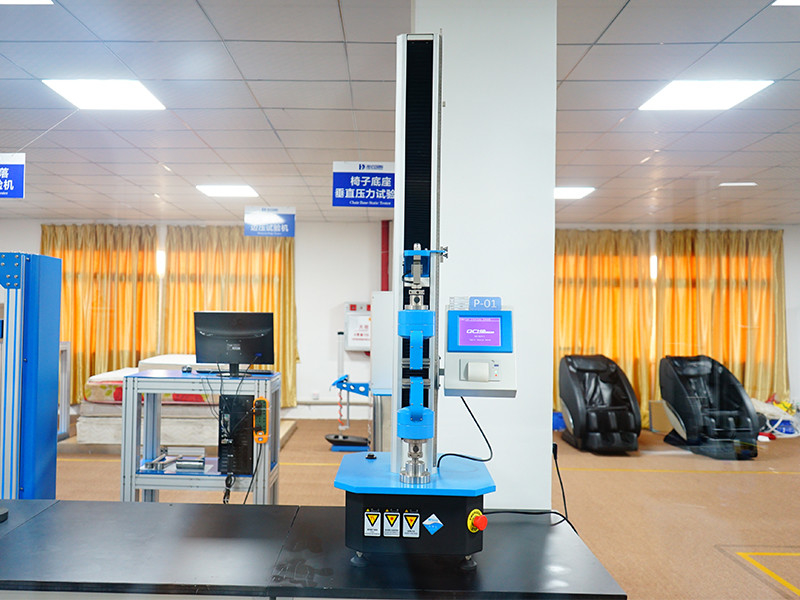

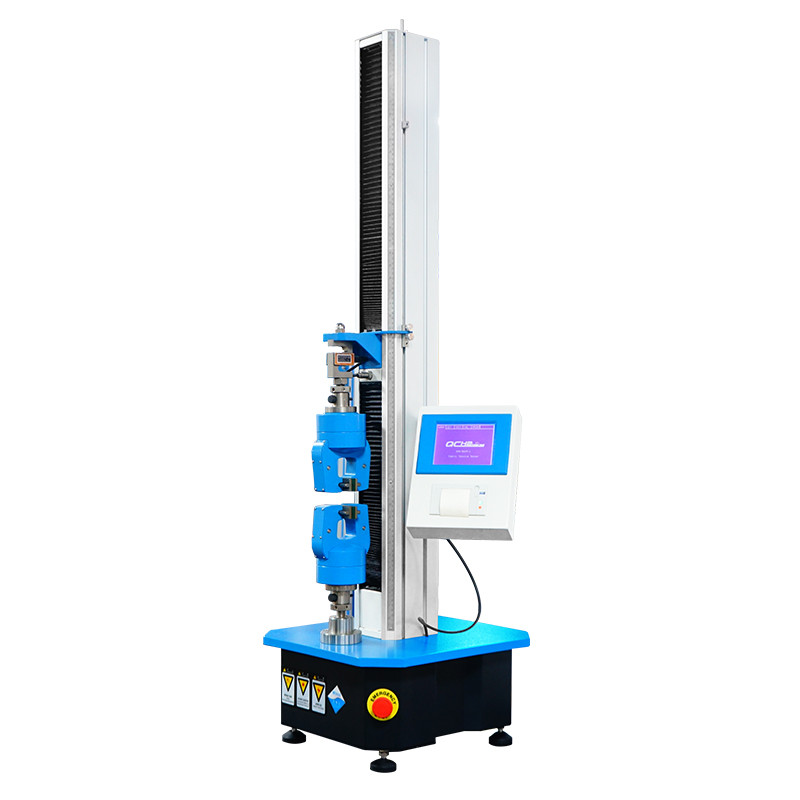

Universal Tensile Teting Machine Strength Testing Equipment For Textile
Application
Used for cotton, wool, linen, silk, wool fiber fabric, non-woven fabric, paper, ribbon and nonwoven fabric yarn tensile breaking strength and breaking elongation of determination
Test Standard
GB/T 3923.1,GB/T 3923.2,GB/T 3917.2,GB/T 19976,ISO 13934.1,ISO 13934.2
ISO 13935.1,ISO 13935.2,ASTM D5035,ASTM D2261,ASTM D 5034
Feature
1, all computer operation, report, curve, as a result, the integration of graphics intuitive and clear.
2, panasonic AC servo driver, ball screw, as a wide range of speed setting, suitable for all kinds of material mechanical properties testing.
3, imported sensors, force measurement precision is higher than 0.2% f. S.
4, equipped with online interface, are professional development materials strength detection software, not only can print, save the test sample report, also can provide material analysis test with the test data.
5, according to customer needs, can provide various standard test function, also can customize according to customer's requirements.
6, tensile and bursting test does not need to replace the sensor.
7, the domestic first sample testing and data processing software using multi-threaded processing, testing really zero wait.
Technical Parameters:
| Working mode | CRE principle, microcomputer control |
| Max. Force | 2500N |
| Test accuracy | ≤0.2%F·S |
| Tensile speed | 0.01~1000mm/min |
| Max.elongation | 600mm |
| Blessing ways | Manually |
| Power | AC220V 50HZ |
| Dimension | 670x480x1440mm |
Accessories Supplied
Main Unit :01 Nos.
Pneumatic Clamp :02 Nos.
1. Tensile clamps
2. Yarn clamps
Test software:01 set
This User’s Manual:01 No.
Inspection & Conformance Certificate:01 No.
FAQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
