| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-P304 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Load: | 250g,500g, 750g,1000g |
|---|---|---|---|
| Counter: | LED 0～99999999 | Rotating Speed: | 60~72r/min(adjustable) |
| Dimension: | 45×35×42cm | Use: | Shoes |
| High Light: | 60r/Min taber type abrasion tester,750g Load taber type abrasion tester,750g Load taber test machine |
||

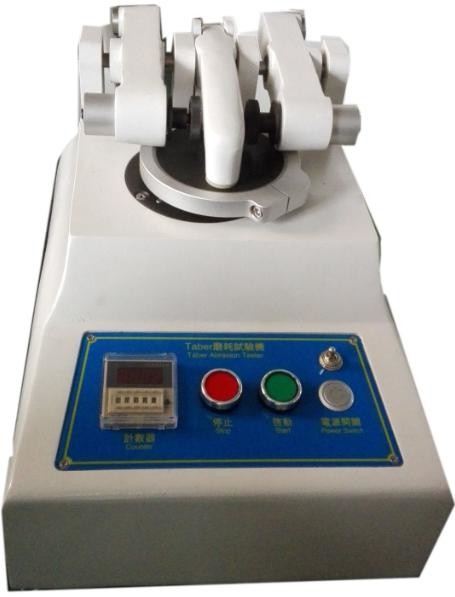

1PC Dust Collector Taber Abrasion Tester Load 250g/500g/ 750g
Application
This machine is used for leather, cloth, coating, paper, floor tile, plywood, glass, natural rubber wear-resistant test.
Standard Features
| Load | 250g,500g, 750g,1000g |
| Specimen: outside dia | Ø108mm; inside dia. Ø 8mm, 3mm(D) |
| Grinding Wheel | Ø2``(max.45mm)1/2``(W) |
| Space Between Grinding Wheels | 63.5mm |
| Grinding Wheel and Plate`s Space: | 37~38mm |
| Rotating Speed | 60~72r/min(adjustable) |
| Counter | LED 0～99999999 |
| Distance Between Specimen and Hose | 3mm |
| Grinding wheel type( optional) | H18,H22, CS10,CS17,CS32,CS33 |
| Dimension | 45×35×42cm |
| Test standard | DIN53754,53799,53109,52347,TAPPI T476, ASTM D3884,ISO 54701, ASTM D 1175 |
| Accessories | 1PC Grinding wheel, 1PC Dust collector, 1 book of English manual |
We are trusted by SCS, INTERTEK, HST, COFCO, ESC, KBMC, LENOVO, PANASONIC, EMC, etc.
365 days, After Sales Service Department provides professional service with you, any questions, just contact us.
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
