| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W803 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Cutting Speed: | 10cm/s | Weight: | 60KG |
|---|---|---|---|
| Cutting Angle: | 30~35 Degree | Power Supply: | AC220V, 50/60Hz, Single Phase |
| Counter: | LED, 6 Digits | Diameter Of Round Blade: | 45±0.5mm |
| High Light: | 10cm/s Textile Testing Equipment,ISO 20344.6.1 Textile Testing Equipment,Single Phase Glove Cut Resistance Tester |
||

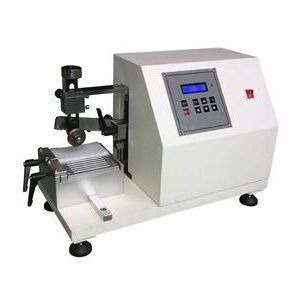

ISO20344.6.1 Single Phase Glove Cut Resistance Tester AC220V 35 Degree Angle
Product description
This Glove Cut Resistance Tester is used to test the blade cut resistance of safety gloves, leather, coated fabrics and other materials, but it's not applied to hard gloves.
Working principle:
A rotating circular blade cutting near placed in special sample device, blade move under the provision of load , automatic number, it will automatic stop when the test end, contrast before and after the test, and then can get test results.
Main technical parameters
| Horizontal travel | 50mm |
| Weight on blade | 5±0.05N |
| Cutting speed | 10cm/s |
| Diameter of round blade | 45±0.5mm |
| Thickness of blade(accessories) |
0.3±0.03mm (Japan OLFA's 45mm REF OLFA RB Blade-10pcs) |
| Sharp scissors(accessories) | For cutting sample-1pc |
| Cutting angle | 30~35 degree |
| Hardness of blade | 740~800HV tungsten steel |
| Specimen size | 100x80mm, 5pcs can be tested |
| Counter | LED, 6 digits |
| Machine size | 550×450×300mm(L×W×H) |
| Weight | 60kg |
| Power supply | AC220V, 50/60Hz, single phase |
| Test standard | EN388.6.2, ISO20344.6.1 |
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
