| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-W862-1 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Use: | Non-woven Fabrics |
|---|---|---|---|
| Product Name: | Strength Tester | Net Weight: | 60Kg |
| Outside Dimension: | 520X400X1600mm | Color: | As Is Shown In |
| Measuring Accuracy: | 50N,100N,300N,500N(Optional) | Max Elongation: | 800mm |
| High Light: | 300N Tensile Strength Testing Equipment,500N Tensile Strength Testing Equipment,500N tensile strength machine |
||

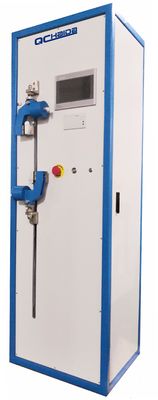

500N Tensile Strength Testing Equipment , Pilling Test Machine For Non Woven
Introduction
Yarn strength Tester is used for various tensile, elastic recovery and peel strength testing of non-woven fabrics, fusible interlinings, multi-layer glued fabrics, hot-melt fusible interlinings and clothing fabrics, interlining and fabric adhesion, coating adhesion, etc.
Technical parameter
| Technical Index | HD-W862-1 |
| Measuring accuracy | ≤0.2%F·S |
| Measuring accuracy | 50N,100N,300N,500N(Optional) |
| Mode | CRE, Microcomputer Control, LCD display Support, online communication |
| Draw speed | 50~1000mm/min |
| Max Elongation | 800mm |
| Fixture distance | 50~500mm,Digital Preset |
| Pre-exerted tension | 0-150cN |
| Power | AC220V 50HZ 250W |
| Outside dimension | 520X400X1600mm |
| Net Weight | 60Kg |
Test standard
GB/T 12914,GB/T 24218.3 ,GB/T 24218.18
