AC220V 100W 0.1um Textile Testing Equipment , Fiber Inspection Microscope

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W819
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Test Area: 1-2000 Um
Test Resolution: 0.1um Packaging Dimension: 1200x500x600mm
Weight: 25kg Use: Animal Fiber, Chemical Fiber, Cotton
High Light:

0.1um Textile Testing Equipment


100W Textile Testing Equipment


AC220V fiber inspection microscope

Product Description

AC220V 100W 0.1um Textile Testing Equipment , Fiber Inspection Microscope

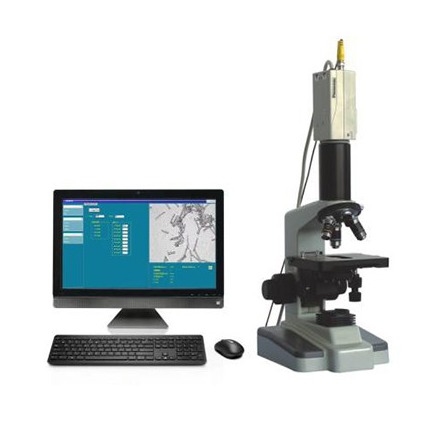

Textile Testing Equipment is used for animal fiber, chemical fiber, cotton fiber diameter, cross section, qualitative, quantitative analysis methods. The optical microscope is connected to the computer through a high-resolution industrial camera, and the fiber diameter and cross-sectional area are tested by professional analysis software. The content of each fiber in the blended fiber and the hollowness of the hollow fiber can be measured.


Testing Standards


Qualitative analysis of fiber: AATCC 20, FZ/T01057.3, etc.

Fiber diameter experiment: GB/T 10685, ISO 137, IWTO-8, etc.

Automatic diameter measurement: GB/T 20732, IWTO-47, etc.

Fiber content experiment: ISO 17751, FZ/T 30003, FZ/T 32004, SN/T 0756, etc.

Fiber cross-section experiment: FZ/T 01101, AATCC 20A, etc.


Technical Parameters


Technical Index HD-W819
Working mode

manual measurement, automatic measurement, multi-point measurement;

Automatic statistical analysis, report printing, and photo printing

Test area 1-2000 um
Test resolution 0.1um
Power AC220V 50Hz,100W
Packaging dimension 1200x500x600mm
Weight 25kg
Other configurations 1 set fiber slicer; 1 box Slides and 1 box coverslips

Please feel FREE to contact us if you have any needs. If you want to know more information.

Please leave a message below and click " contact "


See What Company You Will Work With?


1. Professional Manufacturer of various kinds of testing equipments over 16 years, defect rate is controlled under 0.02%.

2.Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.

3. ISO 9001:2008 Quality Management System Certificate.

4. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…

5. Our Marketing Investigation Department will send Marketing Research Report to you each season.


7.We accept 100% inspection.

8. Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us.
