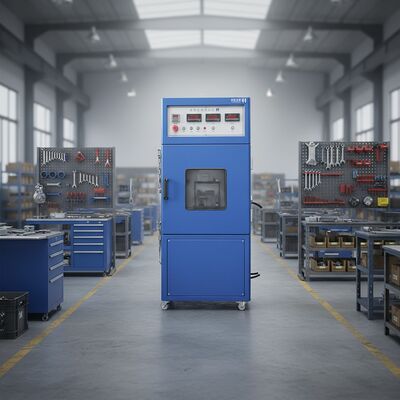

Lithium Battery Forced Internal Short Circuit Tester Battery External Short Circuit Testing Machine Equipment Battery Chamber

Brand Name:	haida
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy Class:

High Accuracy

Accuracy:

±0.5%

Application:

Battery Testing, Short-circuit Testing

Customized Support:

OEM, ODM

Power:

200W

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Internal Dimension:

500*500*500mm(W*D*H)

External Dimension:

700*800*1530mm(W*D*H)

Exhaust Port:

Diameter 100mm

Pressure Relief Port:

200*200mm

Control Mode:

Key Type

Temperature Collection Range:

RT-1000℃

Voltage Acquisition Channel:

Channel 1

Voltage Collection Range:

0-100V

Maximum Short-circuit Current:

1000A

Internal Resistance Of Device Loop:

80±20mΩ

Highlight:

Battery Forced Internal Short Circuit Tester

Lithium Battery Testing Equipment

Product Description

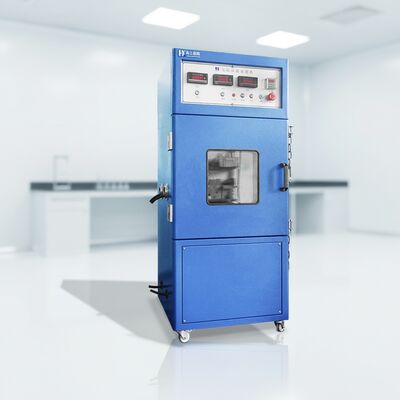

Key Type Single Door Design Battery Short Circuit Test Machine

Product Description

Battery Short Circuit Test Machine is designed according with the requirements of various battery short-circuit test standards. According to the standard, the short-circuit device must meet the internal resistance of 80 ± 20mΩ to obtain the maximum short-circuit current required by test. In addition, the circuit design of the short-circuit device must also be able to withstand large currents impact.

We chose industrial-grade DC electromagnetic contactors, all-copper terminals, and internal copper plates to guide the flow. The wide and thick copper plates effectively improve the heat dissipation effect, make the high current short-circuit device safer, effectively reduce the loss of test equipment, and ensure the test data Accuracy.

STANDARD FEATURES

Item	Specification
Internal Dimension	500500500mm(WDH)
External Dimension	7008001530mm(WDH)
Internal Material	SUS201 stainless steel plate, 1.2mm thick and affixed with Teflon;
External Material	Paint treatment of cold-rolled steel sheet
Observe Window	250*250mm
	Two layers of tempered glass
	Transparent window with stainless steel mesh
Exhaust port	Diameter 100mm
Pressure relief port	200*200mm
Door	Single door design, the door is equipped with a safety limit switch The side is equipped with an explosion-proof chain Only close the door to operate the device to ensure the safety of personnel
Testing Hole	There are two testing hole diameter 50mm, for cable connect.
Control Mode	Key Type
Temperature collection range	RT-1000℃
Temperature Acquisition Channel	Channel 1
Temperature Display Accuracy	±0.5℃
Voltage collection range	0-100V
Voltage Acquisition Channel	Channel 1
Voltage Display Accuracy	±0.5%
Maximum Short-circuit Current	1000A
Current Acquisition Channel	Channel 1
Current Display Accuracy	±0.5%
Internal Resistance of Device Loop	80±20mΩ
Voltage	Single Phase 220V
Power	200W
Machine Weight	85kg
