Battery Cell Testing System Cycle Life Tester Capacity Test Machine Charge & Discharge Test for Li-ion Battery and Acid Battery

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

0.01

Application:

Battery Testing

Customized Support:

OEM, ODM

Power:

Protection Class:

Ip56

Voltage:

380 V

Warranty:

Wiring Method:

AC Three-phase Five-wire

Power Supply Voltage:

380±10% VAC

Power Supply Frequency:

50±5% Hz

Power Factor:

> 0.99

Max. Power Feedback Efficiency:

≥ 75%

Output Current:

30A/60A/100A/150A/300A

Single Channel Voltage Range:

0.8V~5V

Voltage Accuracy:

± 0.02% F.S

Voltage Resolution:

0.1mV

Cabinet Size (Optional):

600*850*1030 / 600*800*1980(W*D*H Mm)

Highlight:

Li-ion Battery Cycle Life Tester

Acid Battery Cycle Life Tester

Battery Cell Testing System

Product Description

HD-H213-5

Battery Cell Test System

Applied in Li-ion battery, lead acid battery, nickel-cadmium battery testing and quality control, can realize the integration of charge and discharge data monitoring.

Specification

AC parameters
Wiring method	Three-phase ﬁve-wire system
Power supply voltage	380±10% VAC
Power supply frequency	50±5% Hz
Power factor	> 0.99
Max. power feedback efficiency	≥ 75%
THD	＜5%
DC parameters
Output current	30A/60A/100A/150A/300A
Single channel voltage range	0.8V~5V
Voltage accuracy	± 0.02% F.S
Voltage resolution	0.1mV
Current accuracy	± 0.02% F.S
Current resolution	0.1mA
Current response time	5ms（10%~90% F.S）
Current switching time	10ms（-90%~90% F.S）
Min. Working Condition Simulation Interval	10ms
Upper computer software function
Charging mode	CC, CV, CCCV, CP etc.
discharge mode	CC, CV, CP, CR etc.
Other working mode	Still,Pause,Working condition test, Pulse test,DCIR
Test cut-of condition	Battey voltage, current, time, capacity, temperature
Data export format	Excel、TXT etc.
Time recording interval	10ms
Editable step	Max. 10000
Programmable step	Max. 10000
Nested loop	Max. 10 layers
Software protection	OCP/OVP/UVP/Reverse or wrong connection protection Protection for abnormal communication
Third-party device integration	Support linkage of temperature box, MTV/MTS, and pressure sensor
Other parameters
IP grade	IP20
Working temperature	0℃~40℃
Cooling method	Air Cooling
Noise	＜75dB
Cabinet size	6008501030 / 6008001980 （WDH mm）
Note: For specific models and parameters, please refer to the corresponding technical specifications

Functions

Battery capacity test Charge/discharge test Static/dynamic SOC test Charge retention test

Cycle life test Temp. performance test High-speed DCIR test

working condition pulse test

Advantages

* Support single battery voltage consistence test

* Support multi-channel charge-discharge curve comparison

* Support multi-channel parallel

* Power factor value up to 0.99

* Anti-reverse connection and data protection

* Battery discharge and energy feedback efficiency ≥90%

* Modular design, easy for maintenance

* Support RS485/CAN communication, baud rate is changeable

* Support DBC import at one-click

* Support user-defined BMS values as control/protection parameters

* BMS voltage and current following test

* User-defined login management rights are supported

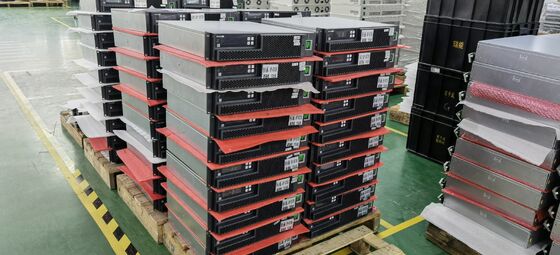

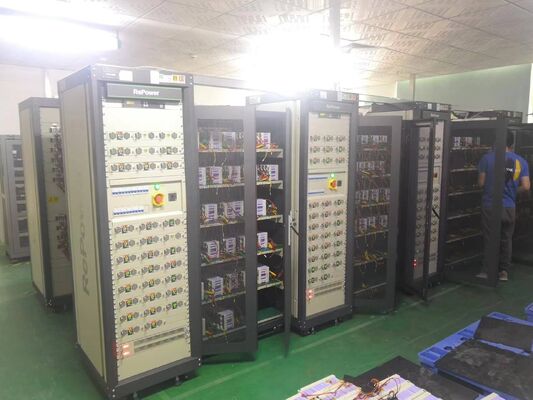

Details
