Battery Module / Pack Testing Solution Cycle Life & Capacity Tester Machine Charge & Discharge for Li-ion Battery Quality Control

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

0.01

Application:

Battery Testing

Customized Support:

OEM, ODM

Power:

Protection Class:

Ip56

Voltage:

380 V

Warranty:

Wiring Method:

AC Three-phase Five-wire

Power Supply Voltage:

380±10% VAC

Power Supply Frequency:

50±5% Hz

Power Factor:

> 0.99

Max. Power Feedback Efficiency:

≥ 75%

Output Current:

20A/30A/40A/60A

Single Channel Voltage Range:

60V~100V

Voltage Accuracy:

± 0.05% F.S

Voltage Resolution:

0.1mV

Cabinet Size (Optional):

600*850*1030 / 600*800*1980(W*D*H Mm)

Highlight:

Cycle Life Battery Module Testing Equipment

Capacity Battery Module Testing Machine

Li-ion Battery Module Testing Equipment

Product Description

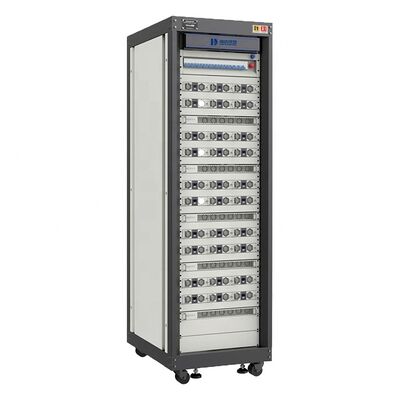

HD-H213-60/100

Battery Module/Pack

Test System

Applied in the testing and quality control of smart lithium batteries or battery packs such as e-bike, drones, medical equipment, balance-robot, and vacuum cleaner, and can realize the integration of charging and discharging data monitoring.

Specification

Functions

Battery capacity test Charge/discharge test Static/dynamic SOC test CAN/RS485

communication

Cycle life test Temp. performance test Overcharge/over-discharge DCIR test

test

Detailed Parameters

AC parameters
Wiring method	Three-phase ﬁve-wire system
Power supply voltage	380±10% VAC
Power supply frequency	50±5% Hz
Power factor	> 0.99
Max. power feedback efficiency	≥ 75%
THD	＜5%
DC parameters
Output current	20A/30A/40A/60A
Single channel voltage range	60V~100V
Voltage accuracy	± 0.05% F.S
Voltage resolution	0.1mV
Current accuracy	± 0.05% F.S
Current resolution	0.1mA
Current response time	10ms（10%~90% F.S）
Current switching time	20ms（-90%~90% F.S）
Upper computer software function
Charging mode	CC, CV, CCCV, CP etc.
discharge mode	CC, CV, CP, CR etc.
Other working mode	Still,Pause,Working condition test, Pulse test,DCIR
Test cut-of condition	Battey voltage, current, time, capacity, temperature
Data export format	Excel、TXT etc.
Time recording interval	10ms
Editable step	Max. 10000
Programmable step	Max. 10000
Nested loop	Max. 10 layers
Software protection	OCP/OVP/UVP/Reverse or wrong connection protection Protection for abnormal communication
Third-party device integration	Support linkage of temperature box, MTV/MTS, and pressure sensor
Other parameters
IP grade	IP20
Working temperature	0℃~40℃
Cooling method	Air Cooling
Noise	＜75dB
Cabinet size	6008501030 / 6008001980 （WDH mm）
Note: For specific models and parameters, please refer to the corresponding technical specifications

Advantages

* Support single battery voltage consistence test

* Support multi-channel charge-discharge curve comparison

* Support multi-channel parallel

* Power factor value up to 0.99

* Anti-reverse connection and data protection

* Battery discharge and energy feedback efficiency ≥90%

* Modular design, easy for maintenance

* Support RS485/CAN communication, baud rate is changeable

* Support DBC import at one-click

* Support user-defined BMS values as control/protection parameters

* BMS voltage and current following test

* User-defined login management rights are supported

Details

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
