Lithium Battery Capacity / Charge & Discharge / Cycle Life Test System for New Energy Battery Modules & Packs Performance Testing

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

0.01

Application:

Battery Testing

Customized Support:

OEM, ODM

Power:

Protection Class:

Ip56

Voltage:

380 V

Warranty:

Wiring Method:

AC Three-phase Four-wire

Power Supply Voltage:

380±10% VAC

Power Supply Frequency:

50±5% Hz

Power Factor:

> 0.99

Max. Power Feedback Efficiency:

≥ 96%

Output Current:

300A/400A/600A/1000A/2000A/4000A

Single Channel Voltage Range:

750V~1500V...2000V

Voltage Accuracy:

± 0.02% F.S

Voltage Resolution:

1mV

Cabinet Size (Optional):

(1600-2800)*1100*2000

Highlight:

Lithium Battery Capacity Test System

Lithium Battery Cycle Life Test System

Product Description

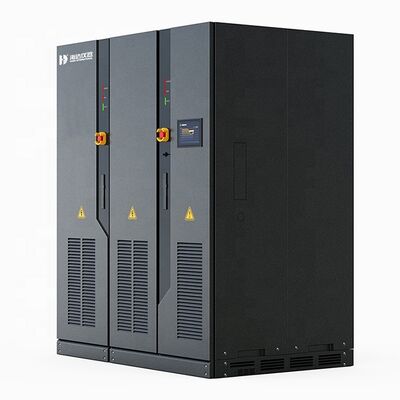

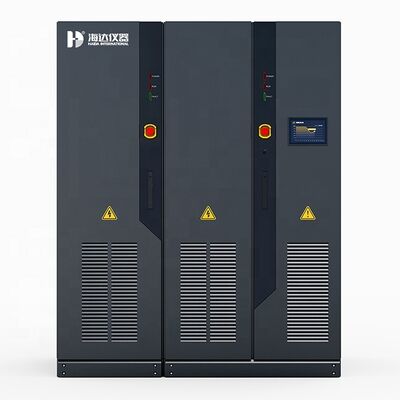

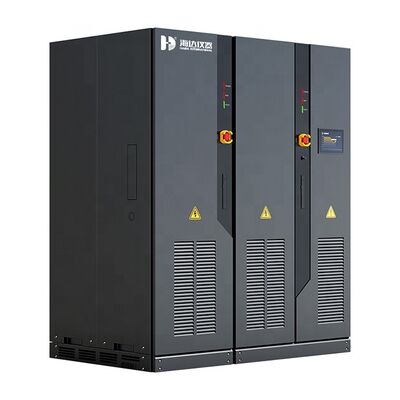

HD-H214-750/2000

High voltage and high current battery test system

Applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.

Specification

Functions

Battery capacity test Charge/discharge test Static/dynamic SOC test Charge retention test

Cycle life test Temp. performance test High-speed DCIR test

working condition pulse test

Detailed Parameters

AC parameters
Wiring method	AC three-phase four-wire
Power supply voltage	380±10% VAC
Power supply frequency	50±5% Hz
Power factor	> 0.99
Max. power feedback efficiency	≥ 96%
THD	＜3%
DC parameters
Output current	300A/400A/600A/1000A/2000A/4000A
Single channel voltage range	750V~1500V...2000V
Voltage accuracy	± 0.02% F.S
Voltage resolution	0.1mV
Current accuracy	± 0.02% F.S
Current resolution	1mA
Current response time	3ms（10%~90% F.S）
Current switching time	5ms（-90%~90% F.S）
Min. Working Condition Simulation Interval	10ms
Upper computer software function
Charging mode	CC, CV, CCCV, CP, Slope, etc.
discharge mode	CC, CV, CP, CR, Slope, etc.
Other working mode	Still,Pause,Working condition test, Pulse test,DCIR
Test cut-of condition	Battey voltage, current, time, capacity, temperature
Data export format	Excel、TXT etc.
Time recording interval	10ms
Editable step	Max. 10000
Programmable step	Max. 10000
Nested loop	Max. 10 layers
Software protection	OCP/OVP/UVP/Reverse or wrong connection protection Protection for abnormal communication
Third-party device integration	Support linkage of temperature box, MTV/MTS, and I/O control box, and chiller
Other parameters
IP grade	IP20
Working temperature	0℃~40℃
Cooling method	Air Cooling
Noise	＜75dB
Cabinet size	(1600-2800)11002000（WDH mm）
Note: For specific models and parameters, please refer to the corresponding technical specifications

Advantages

* Support single battery voltage consistence test

* Support multi-channel parallel

* Power factor value up to 0.99

* Anti-reverse connection and data protection

* Battery discharge and energy feedback efficiency ≥96%

* Three-level technology,wide voltage output, small current ripple

* Support RS485/CAN battery pack communication protocol

* CAN communication baud rate is changeable

* Support DBC import at one-click

* Support user-defined BMS values as control/protection parameters

* Support slope charging and discharging

* User-defined login management rights are supported

* National standard plug, simulate charging pile for charging(optional)

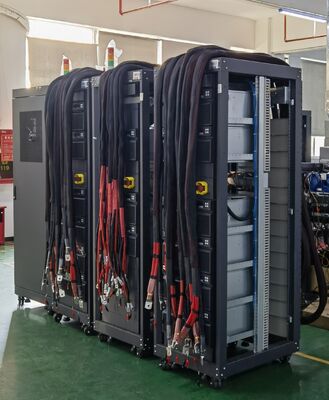

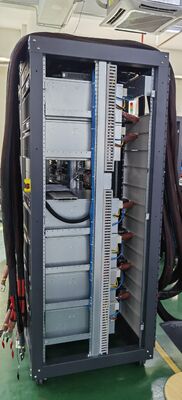

Details
