Power Battery Insulation & Charge & Current EOL Test Machine for E-vehicle , E-bus , Energy Storage Base Lithium Battery Pack & Module

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

0.01

Application:

Battery Testing

Customized Support:

OEM, ODM

Power:

3.5kw

Protection Class:

Ip56

Voltage:

220 V

Warranty:

Capacity:

60V~200V, 100V~1500V

Wiring Method:

AC Single-phase Three-wire

Power Supply Voltage:

220±10% VAC

Power Supply Frequency:

50±5% Hz

Rated Power:

3.5KW

IP Grade:

IP20

Working Temperature:

0℃~40℃

Cooling Method:

Air Cooling

Noise:

<75dB

Cabinet Size:

600*850*1980 (W*D*H Mm)

Highlight:

Energy Storage Base EOL Test Machine

E-bus EOL Test Machine

E-vehicle EOL Test Machine

Product Description

HD-H215-60/100/1500

Power Battery Pack

EOL Test System

Applied in e-vehicle, e-bus, energy storage base, battery pack EOL testing, and quality control.

Specification

Functions

Insulation detect Vehicle/CAN communication UDS communication Single battery/total

test charging function test function test voltage precision test

Fast charge/slow charge SOC function test Relay ON/OFF test Total current precision test

pre-charge function test

Detailed Parameters

AC parameters	Wiring method	AC single-phase three-wire
		Capacity	60V~200V, 100V~1500V
		Rated power	3.5KW
		Power supply voltage	220±10% VAC
		Power supply frequency	50±5% Hz
Safety performance test	Insulation resistance test
		DC voltage withstand test
		AC voltage withstand test
		DC Equipotential test
		AC Equipotential test
		High-voltage interlock function test
		Zero-drift testing
		Insulation leakage simulation test
		Collision signal test
Basic function test	OCV
		AC internal resistance
		Low voltage power consumption test
		BMS data reading and sending
		Relay ON/OFF test
		Program burning
		Slow charging signal test
		Fast charging signal test
		Balancing function test
		Heating function test
		SOC function test
		Current accuracy test
		DCIR test
Other parameters	IP grade	IP20
		Working temperature	0℃~40℃
		Cooling method	Air cooling
		Noise	＜75dB
		Cabinet size	6008501980mm（WDH ）
Note: For specific models and parameters, please refer to the corresponding technical specifications

Advantages

* Integrated high-precision meter, reliable and standard testing result

* Support production verification and research-oriented test for R&D

* High compatibility, satisfy different testing requirements on module mono box, and PACK unit

* Functional module is expandable as required

* Intelligent and automatic work process to save labors and improve testing efficiency

* Exclusive open software platform, support instruments and meters of other brands

* Software supports the analysis of various BMS communication protocols, pass-through analyze,

without any algorithm process

* Testing function and project development can be customized as required

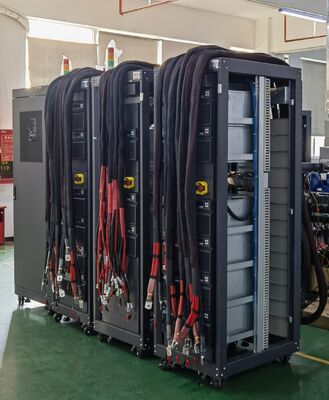

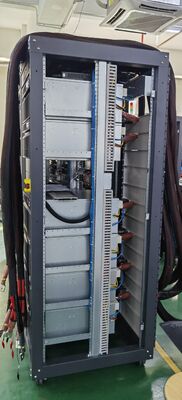

Details
