Battery Capacity & Charge and Discharge & Cycle Test Machine Digital 3C Battery Testing System for Laptop&Camera&Smartphone

Brand Name:	HAIDA
MOQ:	1
Price:	$9,500-12,000

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

0.01

Application:

Battery Testing

Customized Support:

OEM, ODM

Power:

Protection Class:

Ip56

Voltage:

220 V

Warranty:

Wiring Method:

AC 220V

Power Supply Voltage:

220±10% VAC

Power Supply Frequency:

50±5% Hz

Power Factor:

> 0.99

Max. Power Feedback Efficiency:

≥ 95%

Output Current:

5A/6A/10A/20A/30A

Single Channel Voltage Range:

5V~20V

Voltage Accuracy:

± 0.02% F.S

Voltage Resolution:

0.1mV

Cabinet Size (Optional):

770*722*1800(W*D*H Mm)

Highlight:

Laptop Battery Testing System

Digital 3C Battery Testing System

Battery Capacity Test Machine

Product Description

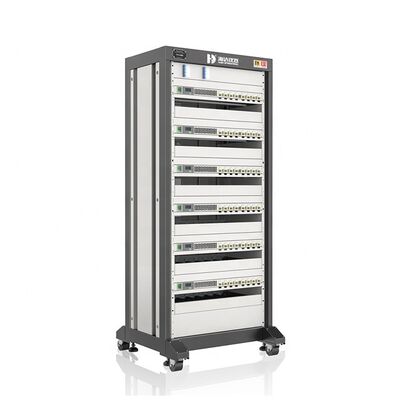

HD-H218-5/20

Digital 3C Battery Test

System

It is mainly used for aging, testing and intelligent data training of laptop batteries, digital camera batteries, smart phone batteries and other smart 3C battery production.

Specification

Functions

Battery capacity test Charge/discharge test Static/dynamic SOC test Charge retention test

Cycle life test Temp. performance test High-speed DCIR test

working condition pulse test

Details Parameters

AC parameters
Wiring method	AC 220V
Power supply voltage	220±10% VAC
Power supply frequency	50±5% Hz
Power factor	> 0.99
Max. power feedback efficiency	≥ 95%
THD	＜3%
DC parameters
Total output power	≤ 8000W
Output current	5A/6A/10A/20A/30A
Single channel voltage range	5V~20V
Voltage accuracy	± 0.02% F.S
Voltage resolution	0.1mV
Current accuracy	± 0.02% F.S
Current resolution	0.1mA
Current response time	10ms（10%~90% F.S）
Current switching time	20ms（-90%~90% F.S）
Upper computer software function
Charging mode	CC, CV, CP, Pulse, Slope etc.
discharge mode	CC, CV, CP, Pulse, Slope etc.
Other working mode	Still,Pause,Working condition test, Pulse test,DCIR
Test cut-of condition	Battey voltage, current, time, capacity, temperature
Data export format	Excel、TXT etc.
Time recording interval	10ms
Editable step	Max. 10000
Programmable step	Max. 10000
Nested loop	Max. 10 layers
Software protection	OCP/OVP/UVP/Reverse or wrong connection protection Protection for abnormal communication
Other parameters
IP grade	IP20
Working temperature	0℃~40℃
Cooling method	Air Cooling
Noise	＜75dB
Cabinet size	7707221800 （WDH mm）
Note: For specific models and parameters, please refer to the corresponding technical specifications

Advantages

● Support single cell voltage consistency test

● Support multi-channel charge and discharge curve comparison ● With protection functions such as anti-reverse connection and data loss ● Modular design, easy to maintain ● Support GGS communication, I2C, Smbus, HDQ and other protocols ● Support multi-chip (multi-address) communication function ● Support 100K/400K adjustable communication frequency and adjustable communication

platform voltage ● The same device can serve as multiple IC types at the same time ● Support custom/loaded battery unlocking, locking and other control commands
