PCB Battery Protection Board Testing System Power Battery Pack Test System Battery Current&Voltage Test Machine

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

0.01

Application:

Battery Testing

Customized Support:

OEM, ODM

Power:

Protection Class:

IP65

Voltage:

Warranty:

Capacity:

16~24S 100A/200A/300A

Function 1:

OCV Test

Function 2:

Normal Power Consumption Test

Function 3:

Sleep Power Test

Function 4:

Cell Over-voltage Protection And Recover Test

Function 5:

Cell Under-voltage Protection And Recover Test

Function 6:

Total Voltage Over-voltage Protection And Recover Test

Function 7:

Total Voltage Under-pressure Protection And Recover Test

Function 8:

Balance Voltage And Current Test

Function 9:

Charge And Discharge Over-current Protection And Recover Test

Highlight:

Power Battery Pack Test System

Battery Current&Voltage Test Machine

PCB Battery Protection Board Testing System

Product Description

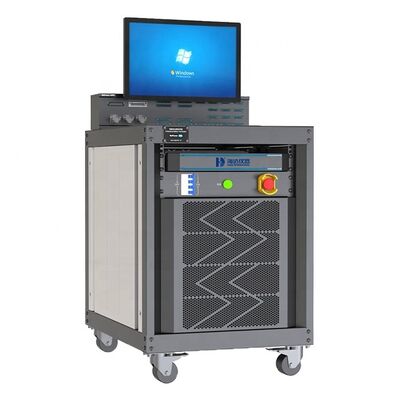

HD-H219

PCB Battery Protection Board

Testing System

Applied in the testing of power battery pack protection board system, testing PCB performance
and its technical items, and generated a complete testing report.

Specification

Functions

Equalizing current test Overcharge&overdischarge Quiescent current Delay protection time

voltage measurement verification measurement measurement

Charge and discharge On-resistance test Current limiting test Temp. protection test

protection current

Detailed Parameters

Models
HD-H219 Capacity: 16~24S 100A/200A/300A
Pack Voltage
Items	Parameters	Accuracy	Resolution
Voltage Measurement	5-180V	0.1% F.S	1mV
Simulated battery output
Items	Parameters	Accuracy	Resolution
Voltage range	100-5000 mV	0.01%R.D ± 0.02% F.S	0.1mV
uA current	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
mA current	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery sampling
Items	Parameters	Accuracy	Resolution
Voltage range	100-5000mV	0.01%R.D ± 0.02% F.S	0.1mV
uA current	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
mA current	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery's ability of absorbs current
Items	Parameters	Accuracy	Resolution
Current range	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Temperature simulation
Items	Parameters	Accuracy	Resolution
Temperature range	-50℃~+300℃	0.1%R.D ± 3% F.S	0.1℃
High precision constant current source
Items	Parameters	Accuracy	Resolution
Voltage range	1-5V	0.1%FS	0.1mV
Charge current	1-300A	0.05%RD±0.05%FS	0.1uA
Discharge current	1-300A	0.05%RD±0.05%FS	0.1mA
Recharger
Items	Parameters	Accuracy	Resolution
Voltage range	1-120V	0.1%FS	0.1mV
Current range	1-500mA	1%FS	0.1mA
Load
Items	Parameters	Accuracy	Resolution
Voltage range	1-120V	0.1%FS	0.1mV
Current range	1-500mA	1%FS	0.1mA
Functions
Basic function test	OCV test
		Normal power consumption test
		Sleep power test
		Cell over-voltage protection and recover test
		Cell under-voltage protection and recover test
		Total voltage over-voltage protection and recover test
		Total voltage under-pressure protection and recover test
		Balance voltage and current test
		Charge and discharge over-current protection and recover test
		Short-circuit protection and recover test
		High and low temperature protection and recover test
Signal function test	Voltage signal acquisition test
		Temperature signal acquisition test
		Resistance signal test
		IO signal input and output
Communication function	CANBUS / RS485 / RS232 / I2C / SUMBUS etc.
Note: For specific models and parameters, please refer to the corresponding technical specifications

Advantages

* Composed by virtual battery, short-circuit free, safety guaranteed

* Pluggable design of virtual battery enables it to be extended, range from 4S to 36S

* Software supports modular setting of testing projects, production validation and research and

development, research-oriented testing, and other modes, supporting secondary development

* Support manual start testing and one click start automatic testing, including button start, barcode

start, PLC start testing,etc

* Support multi-channel independent testing to improve efficiency and production capacity

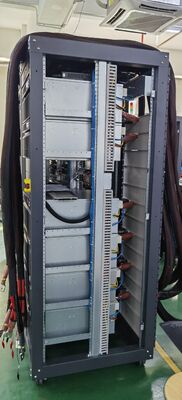

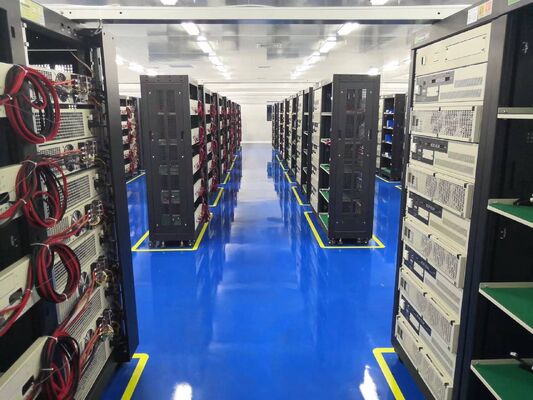

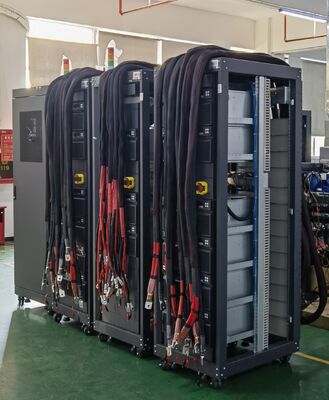

Details
