Finished / Semi-Finished Power Battery Testing System Battery Test Machine Resistance / Charge & Discharge Test Machine

Brand Name:	HAIDA
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

0.01

Application:

Battery Testing

Customized Support:

OEM, ODM

Power:

Protection Class:

IP65

Voltage:

Warranty:

Capacity:

60V~200V 60A~300A

Function 1:

OCV Test

Function 2:

Comparison Test Of OCV Difference

Function 3:

Normal Charging Test

Function 4:

Normal Discharge Test

Function 5:

Wake Up

Function 6:

Charging Current Accuracy Comparison Test

Function 7:

Discharge Current Accuracy Comparison Test

Function 8:

ACR AC Impedance Test

Function 9:

Load Impedance Test

Highlight:

Finished Power Battery Testing System

Resistance Power Battery Testing System

Product Description

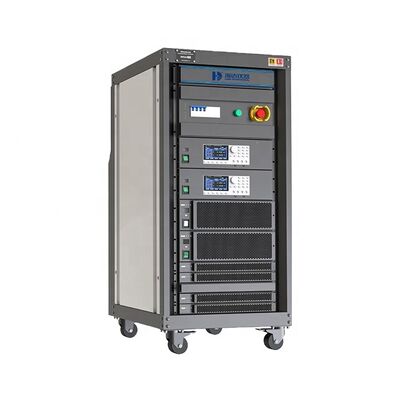

HD-H220-60

Finished&Semi Finished

Power Battery Testing System

Applied in performance testing and quality control of power battery pack of e-tool,e-bike,e-motorcycle, e-vehicle, and battery module of energy storage base.

Specification

Functions

OCV test NTC resistance test DCIR test ID resistance test

Charge/discharge AC impedance test Load capacity test Over current delay over-current protection test test

Detailed Parameters

Models
HD-H220-60 Capacity: 60V~200V 60A~300A
Charge Voltage
Iterms	Parameters			Accuracy	Resolution
Output Voltage	6-60V	12-200V	±0.05% F.S	1mV
Measuring voltage	6-60V	12-200V	±0.05% F.S	1mV
Discharge Voltage
Iterms	Parameters			Accuracy	Resolution
Measuring voltage	6-60V	12-200V	±0.05% F.S	1mV
Charge Current
Iterms	Parameters			Accuracy	Resolution
Output Current	0.1-60A	0.1-300A	±0.05% F.S	1mA
Readback Current	0.1-60A	0.1-300A	±0.05% F.S	1mA
Discharge Current
Iterms	Parameters			Accuracy	Resolution
Output Current	0.1-60A	0.1-300A	±0.05% F.S	1mA
Readback Current	0.1-60A	0.1-300A	±0.05% F.S	1mA
Charge and Discharge Overcurrent Protection Delay
Iterms	Parameters			Accuracy	Resolution
Time Range	0-60000mS	0-60000mS	0.1%	1mS
ACR
Iterms	Parameters			Accuracy	Resolution
Voltage	0-60V	0-300V	±（0.01%rdg+10dgt）	1mV
Resistance	0.001mΩ~3mΩ	3mΩ~3KΩ	±（0.5%rdg+10dgt）	0.001mΩ
Resistance Measurement
Iterms	Parameters			Accuracy	Resolution
IDR	0.01KΩ~1MΩ	0.01KΩ~1MΩ	0.1%	1Ω
NTC	0.01KΩ~1MΩ	0.01KΩ~1MΩ	0.1%	1Ω
Basic function test	OCV test
		Comparison test of OCV difference
		Normal charging test
		Normal discharge test
		Wake Up
		Charging current accuracy comparison test
		Discharge current accuracy comparison test
		ACR AC impedance test
		Load impedance test
		Charging overcurrent protection and recovery test (OCP)
		Discharge overcurrent protection and recovery test (OCP)
		Charge and discharge DCR test
		Single cell voltage reading test
		Cell temperature reading test
		SOC Read test
		Software and hardware version reading test
Communication function	CANBUS / Rs485 / Rs232 / I2C / SUMBUS etc.
Note: For specific models and parameters, please refer to the corresponding technical specifications

Advantages

* Soft-start for current output, avoid current shock.

* Current source open-circuit and voltage-limiting design, avoid high voltage output.

* Each channel is with independent and programmable constant voltage source

and constant current source.

* Support multi-channel independent testing simultaneously,

improving efficiency and production capacity.

* Support lithium battery pack solutions for the same port, different port,

hardware and software versions.

* Support to read, write and comparison of Gas Gauge data in protection board of

finished/semi-finished PACK.

* The software automatically detects the battery for testing, automatically records the test results,

and supports local data storage and uploading to MES.
