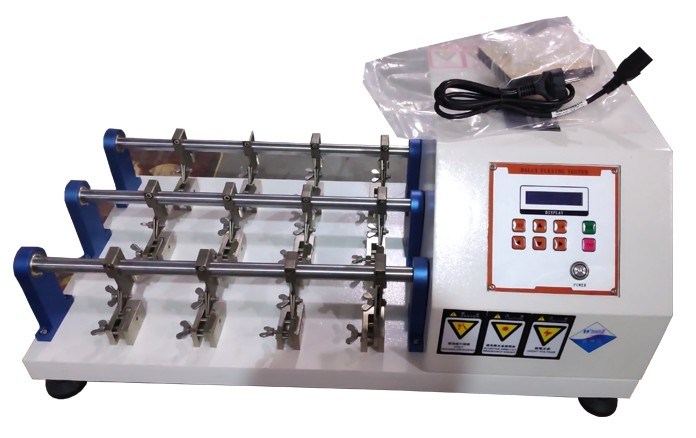

22.5 Degree Leather Flexing Tester Shoe Upper Testing Machine Automatic shutdown

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P301
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Weight: 80kg
Machine Size: (LxWxH)785x460x320mm Counter: LED,0~999,999
Bending Speed: 100±5cpm Bending Angle: 22.5±0.5°
Specimens: 70x45mm Fixture Option: 12 Groups
High Light:

22.5 Degree Leather Tester

,

ISO Leather Tester

,

22.5 Degree flexing tester


Product Description

22.5 Degree Leather Flexing Tester Shoe Upper Testing Machine Automatic Shutdown







PRODUCT INTRODUCTION



Shoe Upper Testing Machine is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.





TEST PRINCIPLE



The machine according to test standards : test method is one side face of the sample as the inner surface and the other side face as the outside surface and bend this surface back and forth, write down the times that the sample have broken; or set the breakage time, then take it out and observe the degree it broken.

Clamping the specimen in fixture, after flexing back and forth in 22.5°, observe the surface with a magnifying glass, record the damage degree to judge the resistance strength of flexing.





STANDARD FEATURES



Technical Index

HD-P301
Fixture option    12 Groups
Specimens 70x45mm
Bending Angle 22.5±0.5°
Bending speed 100±5cpm
Counter LED,0~999,999,Automatic shutdown
Machine Size (LxWxH)785x460x320mm
Power 1∮,AC220V/50HZ
Weight 80kg






WE WILL GIVE YOU



--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.

--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.

--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
