Insole Back Part Shoe Wear Tester , Bending Stiffness Tester

Brand Name:	HAIDA
Model Number:	HD-P810
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Power:

Electronic

Rotation Angle:

30°

Load:

200g, 4pcs

Controller:

Pointer Type

Weight:

Approx. 20kg

Size (W*D*H):

45x20x45cm

Product Name:

Insole Back-part Stiffness Tester

Use:

Shoes

Packaging Details:

ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Supply Ability:

30 Sets per Month Haida

Highlight:

Shoe Wear Bending Stiffness Tester

Shoe Bending Stiffness Tester

Shoe Bending Stiffness Test

Product Description

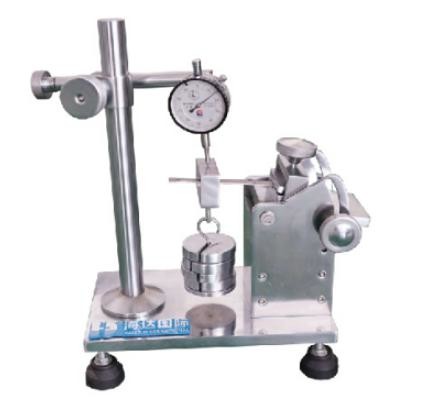

Insole Back Part Shoe Wear Tester , Bending Stiffness Tester

APPLICATION

This machine is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes. The shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward end. The amount of bending is measured and used to calculate the flexural rigidity of the shank.

STANDARD :QB/T 1813

STANDARD FEATURES

Rotation angle	30°
Length of measuring clip	60±0.02mm
Depth of clamp for front end	12mm
Load	200g, 4pcs
Controller	Pointer type
Weight	Approx. 20kg
Power	1 phase, AV 220V, 50/60HZ
Size (WDH)	45x20x45cm
