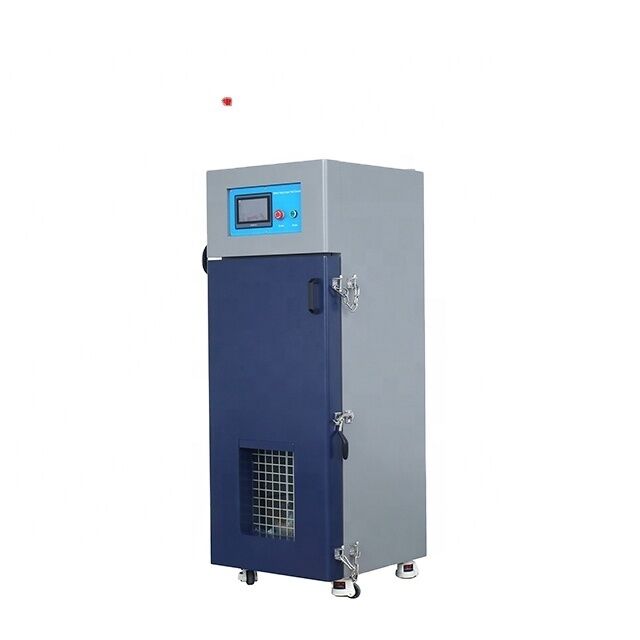

HD-H206 Battery Heavy Impact Test Chamber
Battery Impact Test Chamber tests the safety performance of battery through different weights from different heights and different stressed area to impact.
![]()
Technical parameters
| Item | Description |
|
Inner Box Size (W*D*H) |
490*520*1430mm |
|
Equipment Dimensions (W*D*H) |
700*1000*1720mm |
|
Weight |
9.1kg and 10kg |
|
Impact Height |
0-1000mm (Can be set) |
|
Height Display |
LED Meter Display |
|
Displacement Accuracy |
≤±5mm |
|
Impact Method |
Free Fall |
|
Control Mode |
PLC Touch Screen Control |
|

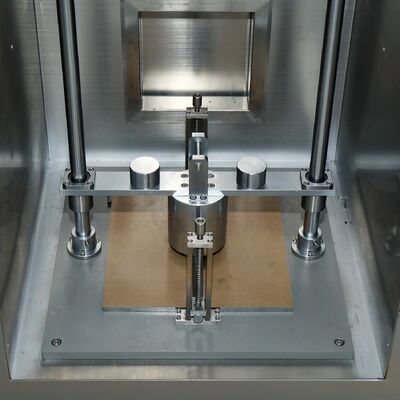

Impact Floor Material |
30mm No. 45 Steel |
|
Metal Rod |
15.8±0.2mm (5/8 inch) Steel Rod |
|
Pressure Relief Door Size |
200*200mm |
|
Smoke Exhaust Pipe |
Diameter φ100mm (Located at the back of the box) |
|
The Maximum Size of the Battery Tested (W*D*H) |
200*200*200mm |
| Equipment Weight | 85Kg |
| Power Supply | AC220V; 50Hz/60Hz |
| Internal Material |
1.2mm SUS#304 Stainless Steel Plate, Teflon Melt Adhesive Tape is Applied to 1/3 of the Place, High Temperature Resistance Corrosion Resistance, Insulation and easy to clean. |
| External Material | 1.5mm Thick Cold-rolled Steel Plate with Paint Treatment |
|
Impact Method |

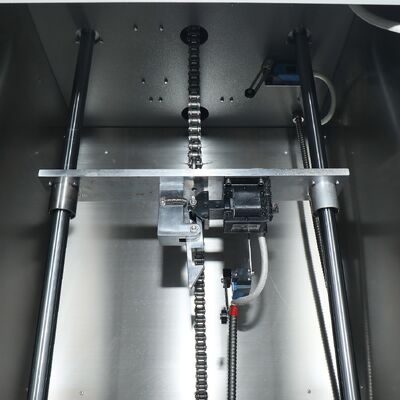

Lift the Falling Ball to a Certain Height and Release it, and the Falling Ball Falls Freely in the Vertical Direction, without Tilting or Shaking; |
|
Box Door |

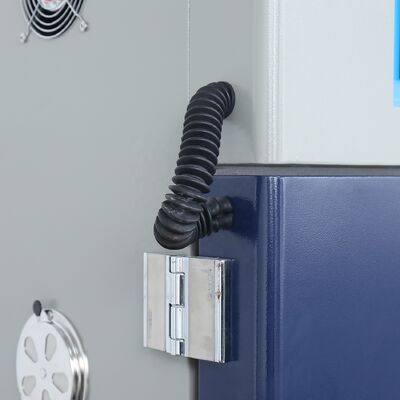

a Single Door Opens to the Left, and Explosion-proof Chain is Installed on the Side of Door |
![]()
![]()
![]()
![]()
![]()
