| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | ISO 9001:2000; ISO 9001:2008 |
| Model Number: | HD-P808 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Use: | Leather |
|---|---|---|---|
| Product Name: | Leather Rubbing Fastness Tester | Test Speed: | 40±2cpm |
| Count: | LCD,0~999,999 | Load: | 500g |
| High Light: | Automatic Counting rubbing fastness tester,IULTCS rubbing fastness tester,IULTCS leather testing equipment |
||

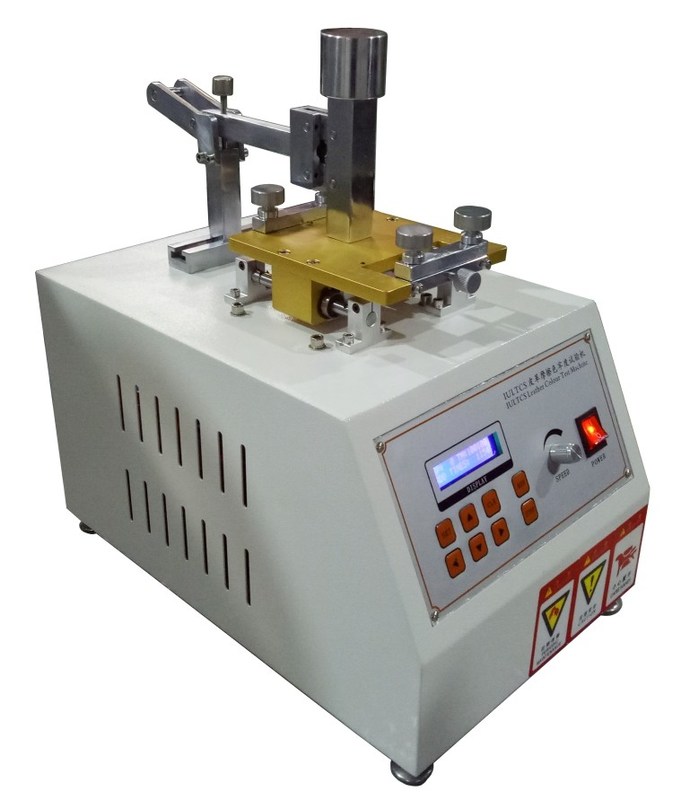

IULTCS Leather Rubbing Fastness Tester
APPLICATION
The machine in the test dyeing uppers, leather lining, after rubbing the extent of damage and Discoloration.
STANDARD
ISO-11640 DIN 4843, QB/T 2226 QB/T 2537, ISO 20344 7.3
STANDARD FEATURE
| Technical Index | HD-P808 |
| Specimen size | 120x20mm |
| Wool cloth area | 15mmx15mm |
| Test speed | 40±2cpm |
| Load | 500g |
| Rubbing distance | 35mm |
| Count | LCD,0~999,999 |
| Power | 1 phase, AV 220V, 50/60HZ |
| N.Weight | Approx 70kg |
| Volumn | 290x480x530mm |
A) Quality assurance items
The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)
B) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
1. please keep the guarantee letter, if you lost it, please connect with us in a month.
2. If the guarantee letter has been altered or it has no our stamp, it is useless.
C) The following conditions need to be paid reasonably even in the assurance period:
1. Natural reasons
2. Operating mistakes
3. Voltage is not fit for our operation instruction
4. Repack it without our guides
5. Damaged for borrowing to others
6. Damaged for authorized machine modification
7. Damaged for authorized calibration
8. Authorized transshipment mistake
9. Serve for long distance area
D) Attentions
1. Any service outside Guangdong, China, transport and travel fees shall be paid by customer.
2. The apparatus try not to be used in the following situations:
a. Vibration, rocking the occasion.
b. Direct sunlight.
c. Hot, dusty, damp places.
d. To ensure safe, AC supply of the machine should be well grounded.
e. Do not use strong solvents (such as: benzene, nitro oil) washing machine.
f. Do not inject water and debris into the machine; prevent damage to electrical components and electrical shock.
g. Instrument displays the disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
