AC 220 50Hz Power 150mm Stroke friction coefficient tester For Plastic Film

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W258
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Weight: 20kg
Size: 500*335*220mm Force Range: 0~5N
Slider Stroke: 0~150mm(adjustable) Slider Velocity: 100±10mm/mim
Test Stable Size: 170*225mm Test Range: 0.01~10N, Accuracy: 0.01N
High Light:

150mm Stroke Tensile Strength Testing Equipment


5N Tensile Strength Testing Equipment


150mm Stroke Friction Coefficient Tester

Product Description

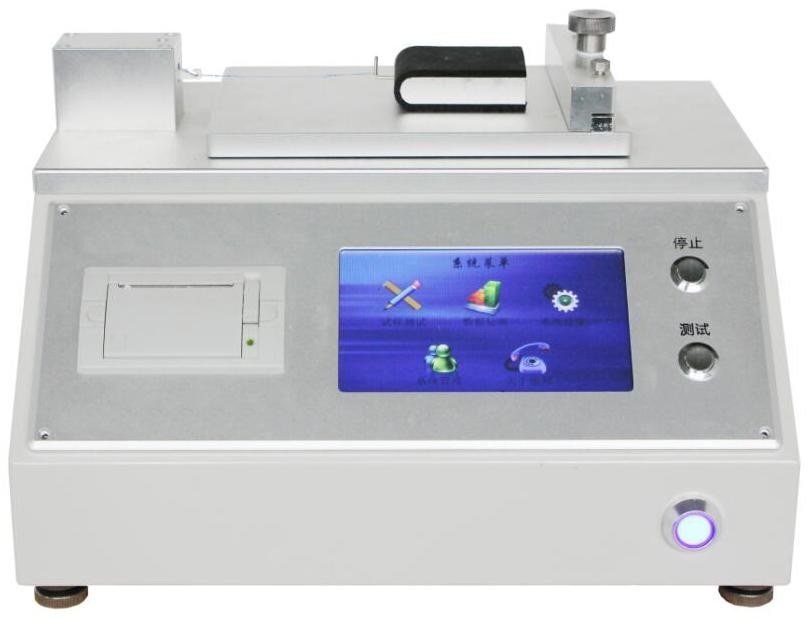

AC 220 50Hz Power 150mm Stroke friction coefficient tester For Plastic Film






The friction coefficient tester is mainly used to measure the static friction coefficient and dynamic friction coefficient of plastic film and thin sheet or other similar material. The matching control software can directly understand the films smoothness and opening, and show the distribution of the slipping agent through the curve. The smoothness measurement of material, production process quality indicators can control and adjust the packing bag opening, packing machine, package speed, meet the product requirements.


friction coefficient tester




Testing standard


GB/T 22895 ,GB 10006, ASTM D 1894 -01, ISO 8295, TAPPI 816




Technical parameters


Technical Index HD-W258
Test range 0.01~10N, accuracy: 0.01N
Thickness of the specimen ≤0.2mm
Slider size 63*63mm
Slider mass 200±2g
Test stable size 170*225mm
Slider velocity 100±10mm/mim
Slider stroke 0~150mm(adjustable)
Force range 0~5N
Size 500*335*220mm
Power supply AC 220 50Hz
Weight 20kg
