4 Groups ASTM D2099 Leather Dynamic Waterproof Tester 90degree cpm

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P305
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Weight: 55kg
Dimension: 49x45x45cm Speed: 90°±5cpm
Test Displacement: 30±1° Load: 3kpa, 9kpa And 12kpa
No. Of Specimens: 1~4 Use: Leather Or Others
High Light:

ASTM D2099 waterproof tester


90degree cpm waterproof tester


ASTM D2099 water resistance tester

Product Description

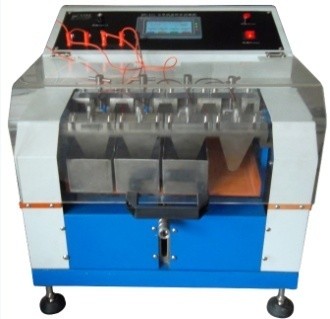

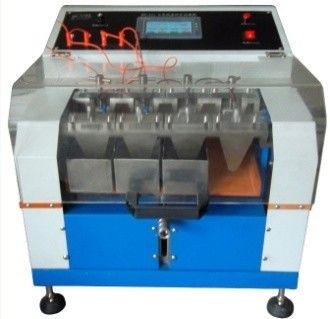

4 Groups ASTM D2099 Leather Dynamic Waterproof Tester 90degree cpm







Waterproof Tester is to test shoe upper material like leather, synthetic leather, against water penetration, the test method is to take the specimen immersing in water and flexing by a constant speed.






ASTM-D2099 or SATRA PM34






Model HD-P305
No. of specimens 1~4
Specimen size 4”x4”±0125 (101.6x101.6±3.2mm)
Load 3kpa, 9kpa and 12kpa
Rotational Speed Steel ball Total weight: 135±5g
Test displacement 30±1°
Speed 90°±5cpm
Dimension 49x45x45cm
Weight 55kg
Power supply 1∮AC220V,3A


How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
