| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-P307 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Machine Size: | (L×W×H)70×30×30cm |
|---|---|---|---|
| Abrasion Speed: | 0.32m/sec | Specimens Size: | 16mm, 6-15mm (D) |
| Fixture Load: | 2.5N | Use: | Leather And Others |
| High Light: | 5N DIN Abrasion Tester,DIN-53516 DIN Abrasion Tester,DIN-53516 rotary abrasion tester |
||

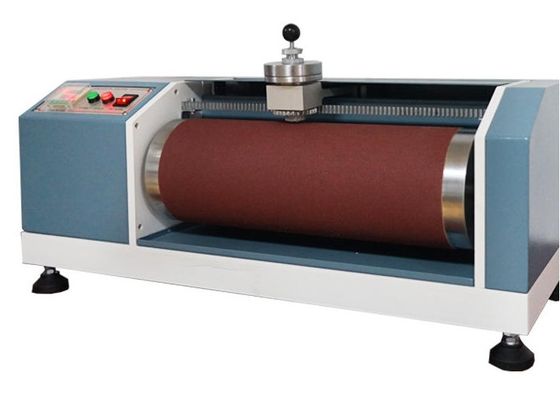

5N DIN-53516 DIN Abrasion Tester , Rotary Abrasion Tester For Leather And Shoe
APPLICATION
DIN Abrasion Tester is to measure the abrasion resistance of rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/frictional wear in their actual service, such as tires, conveyor drive belts, leather and shoe soles
TEST STANDARD
DIN-53516, ISO-4649, GB/T9867, ASTM D5963, ISO 20344 8.3
STANDARD SPECIFICATIONS
| Technical Index | HD-P307 |
| Specimens size | 16mm, 6-15mm (D) |
| Fixture load | 2.5N |
| Weight load | 2.5N,5N |
| Fixture lateral displacement | 4.2mm/wheel each lap |
| Wheel diameter | 150mm |
| Wheel length | 460mm |
| Wheel rotate speed | 40rpm |
| Travel reservations | 40m/20m |
| Abrasion speed | 0.32m/sec |
| Dip angle | 3°the angle of the specimen back shaft with vertical roller face |
| Machine Size | (L×W×H)70*30*30cm |
| Net Weight | 55KG |
QUALITY CONTROL
A) Quality assurance items
The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)
During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;
If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;
B) The following conditions need to be paid reasonably even in the assurance period:
1. Natural reasons
2. Operating mistakes
3. Voltage is not fit for our operation instruction
4. Repack it without our guides
5. Damaged for borrowing to others
6. Damaged for authorized machine modification
7. Damaged for authorized calibration
8. Authorized transshipment mistake
9. Serve for long distance area
