16N Tensile Strength Testing Tester Electronic Elmendorf Tearing Tester BS 4468

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-W812
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Tearing Distance: 43 ± 0.15m
Slit Size: 20 ± 0.2 Mm Display: LCD Display Backlight
Template Size: As Per ASTM Standard Dimensions: 490 X 430 X 680 Mm
Net Weight: 58KG Use: Woven Fabrics, Plastic Films, Paper
High Light:

16N Tensile Strength Testing Equipment


32N Tensile Strength Testing Equipment


16N Elmendorf Tearing Tester

Product Description

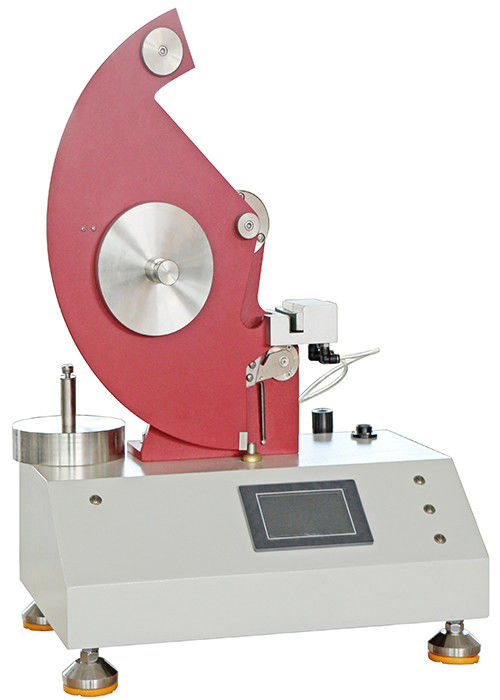

16N Tensile Strength Testing Tester Electronic Elmendorf Tearing Tester BS 4468



Standard Features

Technical Index HD-W812
Measuring pendulum range

32N (By adding Augmenting weight)
64N (By adding Augmenting weight)

Unit of measurement CN, N , gf , lbf
Distance between Clamps 7.0 ± 0.25 mm
Tearing Distance 43 ± 0.15m
Slit Size 20 ± 0.2 mm
Tollerance range 20-80 % of each full scale, settable range or full scale
Angular resolution high resolution digital optical encoder
Display LCD display backlight
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC.
Statistics Force min. max. mean, CV%, St. Deviation, Range%
Template Size As per ASTM standard
Dimensions 490 x 430 x 680 mm
Power supply 220V, 50Hz
Net Weight 58KG

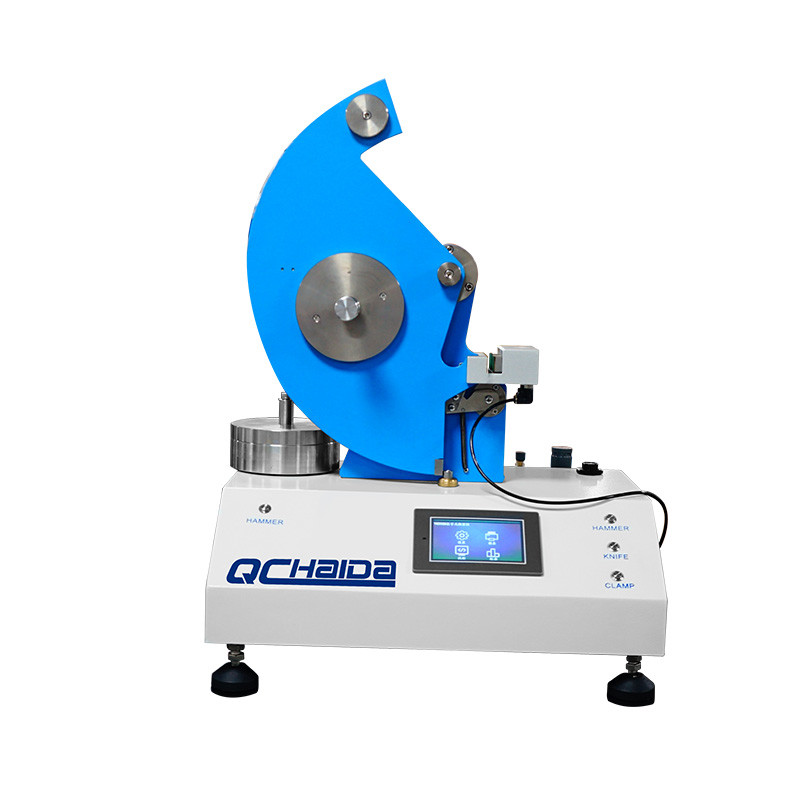

Elmendorf Tearing Tester to determine the ballistic tearing strength of woven fabrics, plastic films, paper, or other similar materials.

  • Embedded system
  • Touch screen operation
  • TFT real color display
  • Sample pneumatic clamping and release
  • Equipped with pendulums of multiple capacities
  • Digital level assist system


Textile: ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17
Plastics: ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141
Nonwovens: ASTM D5734, WSP 100.1
Paper: APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,ISO 1974
Are your company a trading one or a factory ?
We have our own factory and trading company, with more than 16 years of focus on the field of test instruments,As long as you provide us with your requirements, we will try our best to tailor it for you.
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damag
