Bending Angle 22.5 Degree Automatic Leather Flexing Tester For Shoes

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P301
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Fixture Option: 12 Groups
Specimens: 70x45mm Bending Angle: 22.5±0.5°
Bending Speed: 100±5cpm Machine Size: (LxWxH)785x460x320mm
Weight: 80kg Counter: LED,0~999,999,Automatic Shutdown
High Light:

Automatic Leather Flexing Tester


HAIDA flexing tester


22.5degree Bending Angle flexing tester

Product Description

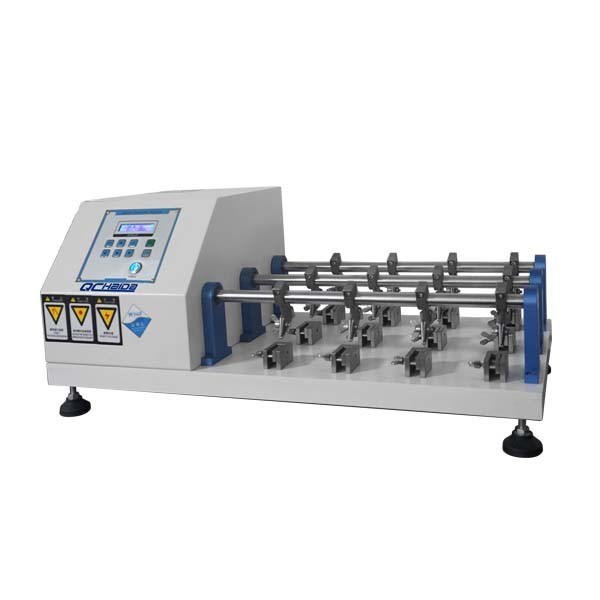

Bending Angle 22.5 Degree Automatic Leather Flexing Tester For Shoes





Leather Flex Tester is used to test the anti-flex performance of shoe upper leather, furniture leather, automobile interior leather, decorative leather. The lower end of the sample block is fixed and the upper end is folded. Record the bending times or reach a certain number of times, check the damage of the specimen.



Model HD-P301
Fixture option 12 Groups
Specimens 70x45mm
Bending Angle 22.5±0.5°
Bending speed 100±5cpm
Counter LED,0~999,999,Automatic shutdown
Machine Size (LxWxH)785x460x320mm
Power 1∮,AC220V/50HZ
Weight 80kg

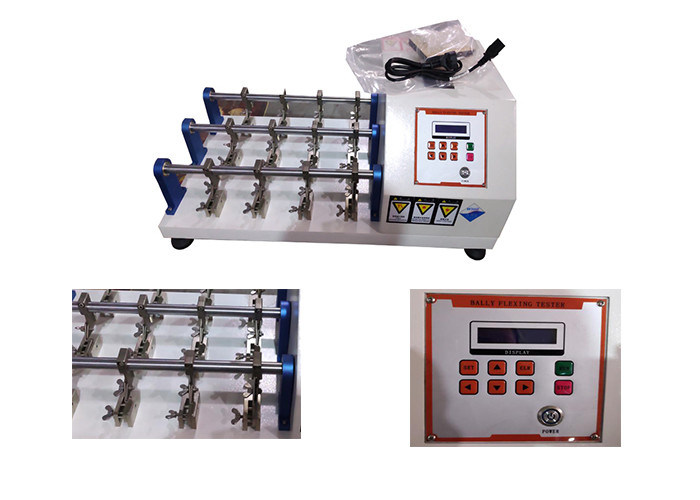

Bending Angle 22.5 Degree Automatic Leather Flexing Tester For Shoes 0


a,  Adopt high grade stainless steel appearance, beautiful and durable.
b, Adopt screw and bearing combined rotation to improve test accuracy.
c, The clamp is made of stainless steel or aluminum alloy, durable and strong.
d, LCD counting device, can set the test times freely.

e,Testing result is accurate.

f, Structure is simple and easy to operate.

g, Made according to related corresponding international standard.

h, Able to custom according to customer’s specific requirement.
