| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-P835 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Material: | Stainless Steel SUS#304 |
|---|---|---|---|
| Inner Capacity: | 50*50*60cm (L X H X D) | Safety Device: | Thermal ,Overheat, Overload Protection |
| Cooling Speed: | 1°C /min At Ave. | Compressor: | France Tecumseh |
| Sample Size: | 34mm | Fan Size: | 90x75mm(LxW) |
| High Light: | Upper Waterproof Test,Shoe Waterproof Test,Shoe Breathability Test |
||

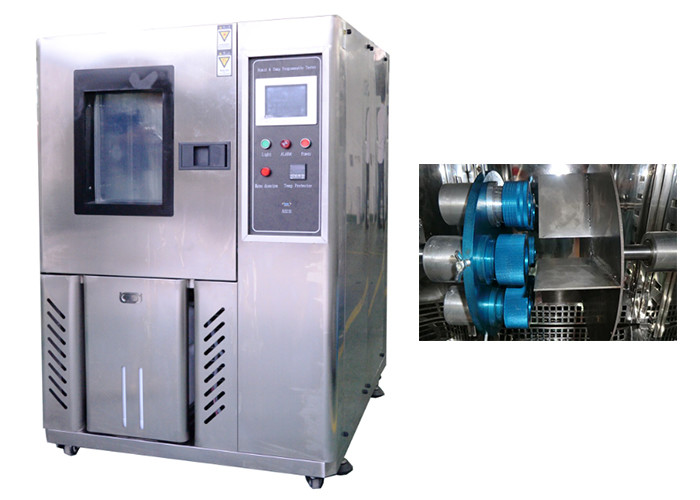

Electronic 75CPM TEMI 880 Controller Leather Tester Environmental Test Chamber
Product Introduction
This machine is mainly use to test water resistant vapor permeability characteristic for vamp and upper shoe materials ( including surface and lining) Under the standard stipulated 20℃ and the 65%RH environment.
Standard Features
| Model | HD-P835 |
| Temperate and humidity range | 20℃, 65%RH |
| Inner capacity | 50*50*60cm (L x H x D) |
| Temp Accuracy,uniformity | within 0.5°C,within 1°C |
| Cooling speed | 1°C /min at ave. |
| Refrigerant | R404 with environment protection |
| Compressor start delay time | 5min |
| Control ways | TEMI 880 controller, touch screen control |
| Sample size | 34mm |
| Bottle mouth diameter | 30mm |
| Test plate speed | (75±5)CPM |
| Blade angel | 120 degrees |
| Fan Blade Nos. | 3pcs |
| Fan speed | (1400±100) rpm. |
| Voltage | AC220V,10A |
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
