| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-P304 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Load: | 250gx2,500gx2, 750gx2 |
|---|---|---|---|
| Counter: | LED 0～99999999 | Rotating Speed: | 60~72r/min(adjustable) |
| Abrasion Paper( Optional): | S-42,width 12.7mm,length 160mm | Dimension: | 45×35×42cm |
| Net Weight: | 40Kg | Use: | Leather, Cloth, Coating, Paper. |
| High Light: | 60r/Min taber abrasion tester,EN438 taber abrasion tester,60r/Min paper towel tester |
||

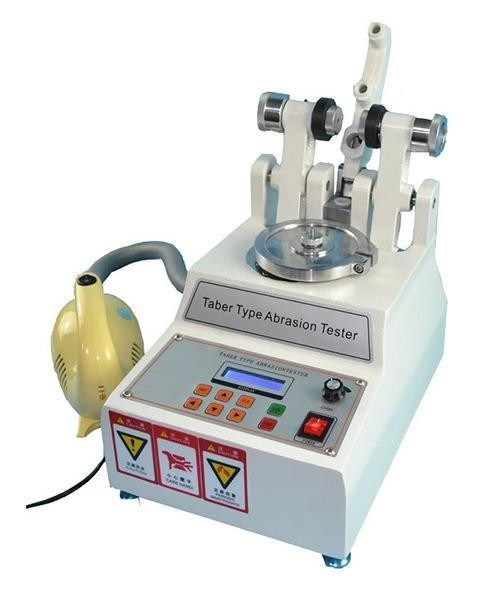

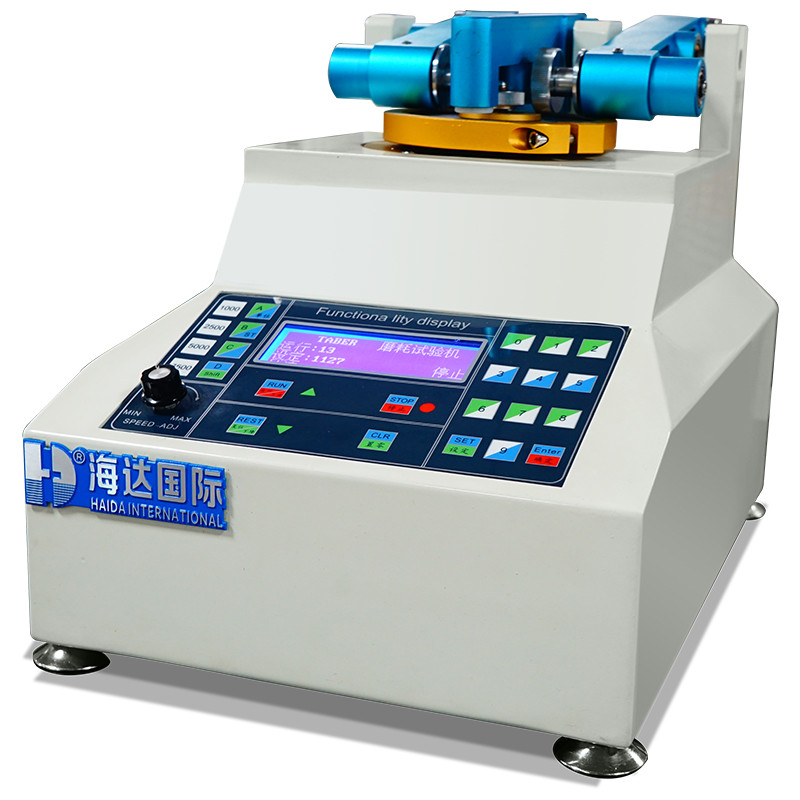

Rotary Taber Abrasion Tester For Leather Cloth Paper
Application
Abrasion Tester is suitable for measuring leather, fabric, coating, paper, floor tile, plywood, glass, natural rubber, etc. . Use the specified grinding wheel and apply the weight to the specimen cut with the knife. Set the scroll time. Then take out the specimen and observe the condition after the specimen is worn. Or calculate the different weights of the samples before and after the test to get the wear index meter.
Standard Features
| Technical Index | HD-P304 |
| Load | 250gx2,500gx2, 750gx2 |
| Specimen: outside dia | Ø130mm |
| Abrasion Wheel | Ø50mm |
| Thickness of abrasion wheel | 12.7mm |
| Space Between abrasion Wheels | 52.5mm |
| Abrasion Wheel and Plate`s Space: | 37~38mm |
| Rotating Speed | 60~72r/min(adjustable) |
| Counter | LED 0～99999999 |
| Distance Between Specimen and Hose | 3mm |
| Grinding wheel type( optional) | CS-0/CS-10 |
| Abrasion paper( optional) | S-42,width 12.7mm,length 160mm |
| Dimension | 45×35×42cm |
| Accessories(free) | 1set abrasion wheel, 1pc Dust collector, 1 book of English manual |
| Net Weight | 40Kg |
Test Standards
EN438,DIN53754,53799,53109,52347,TAPPI T476, ASTM D3884,ISO 54701, ASTM D 1175
