90degree Bending Angle 120W 140 T/Min Shoe Flex Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P805
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Bending Angle: 90°
Test Class Number: 3group Motor: DC,120W
Weight: 168kg Bend Speed: 140times Per Minute
Machine Size: 1000x450x540mm Counter: LED,0-999,999 Automatic Shutdown
High Light:

120W shoe flex tester


140 T/Min shoe flex tester


120W shoe flex tester

Product Description

120W Shoe Sole Flex Tester,Bend Speed 140 Times Per Minute And 3group Test Class Number




Product introduction

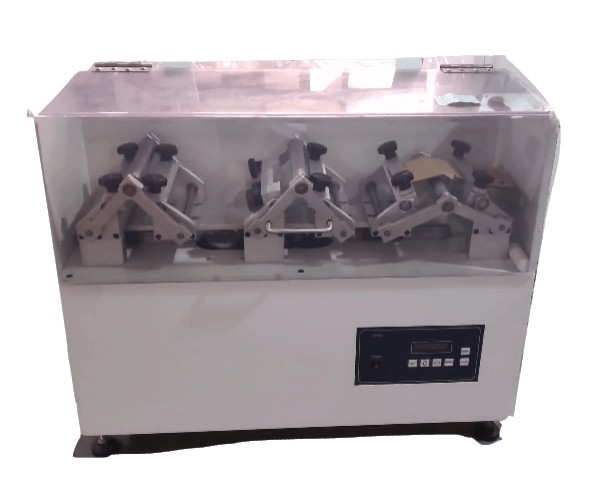

This product is to test the use life after the sole flexed. The sole may break or craze after long-time roller bending. When using this machine, impale several holes at the place where has max bending rate, then fix the two ends of the sole, with end fixed and the other movable. During test, make the circular shaft rise repeatedly, after banded enough times, check its stretch stage through magnifying





Test Standard: EN344 ,SATRA TM161,ISO 17707,GB/T20991




Standard Features


Bending Angle 90°
Bend speed 140times per minute
Test class number 3group
Counter LED,0-999,999 automatic shutdown
motor DC,120W
Machine size (LxWxH)1000x450x540mm
Weight 168kg
Power 1∮, AC220V, 3A

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
