7° Wedge Angle Footwear Testing Equipment Slip Resistance Tester 290kg Weight

Basic Information
Place of Origin: China
Brand Name: Haida
Certification: CE ISO
Model Number: HD-P936
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 15 days after order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Sets per Month Haida
Detail Information
Load Cell Capacity: Vertical Load Cell:100kg*1 Horizontal Load Cell: 100kg*2 Control Method: Computer With Software
Sliding Speed: 0.3±0.03m/s Wedge Angle:
Dimension: 175×65×170 Cm(W×D×H) Weight: 290kg
High Light:

7° Wedge Angle Footwear Testing Equipment


ISO Footwear Testing Equipment

Product Description

7° Wedge Angle Footwear Testing Equipment Slip Resistance Tester 290kg Weight



Product Description


The Slip resistance tester is used to measure the coefficient of friction(CoF) of footwear and the slip resistance performance of outsole, forepart and heel can be evaluated accordingly.



The Principle


The item of footwear to be tested is put on a surface, subjected to a given normal force, and moved horizontally relative to the surface( or the surface is moved horizontally relative to the item of footwear). Both the frictional force and normal force are measured and the dynamic CoF is calculated





1. Smart hardware control system with closed-loop control system capability.

2. The slipping device is driven by a high power servo motor, that can speed up to a specified value in a short time.

3. A variety of safety protection designs and warning signs, an emergency stop button is installed on the conspicuous place of the panel to ensure the safety of the operator's life.

4. The software can read test data curves, compare results, switch units, etc.


slip resistance tester


Standard: ISO 13287, GB/T 28287, ASTM F2913, SATRA TM 144, ISO 24267 ISO 20344 5.11



Standard Parameter


Model HD-P936
Load cell capacity

Vertical load cell:100kg*1

Horizontal load cell: 100kg*2

Vertical pressure

500±25N(UK size≥6.5)

400±20N(UK size<6.5)

Control Method Computer with software
Sliding speed 0.3±0.03m/s
Test normal force 500±25N, For footwear of European size 40 (UK size 6.5) and above
400±20N, For footwear of European size below 40 (UK size 6.5)
Wedge angle
Dimension 175×65×170 cm(W×D×H)
Weight 290kg
Test conditions for slip resistance

Ceramic plate -SRA

Steel plate -SRB

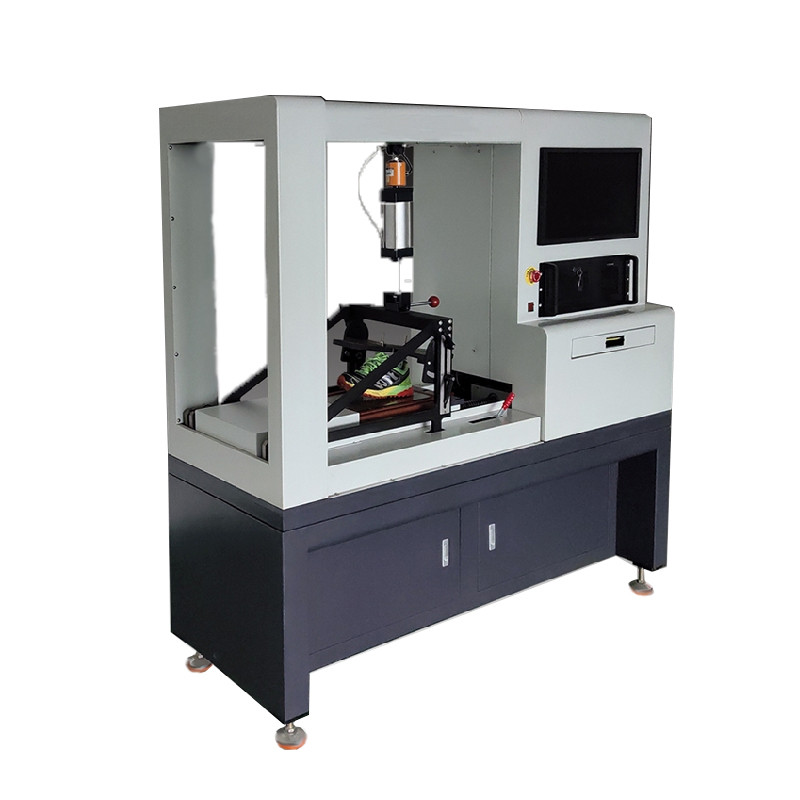

Slip Resistance Tester Image
