DIN-53516 DIN Abrasion Tester 2.5N 5N For Leather Shoe Soles

DIN-53516 DIN Abrasion Tester 2.5N 5N For Leather Shoe Soles

Brand Name: HAIDA
Model Number: HD-P307
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE,ISO
Power:
Electronic
Machine Size:
(L×W×H)70×30×30cm
Abrasion Speed:
0.32m/sec
Specimens Size:
16mm, 6-15mm (D)
Weight Load:
2.5N,5N
Use:
Leather And Others
Packaging Details:
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Supply Ability:
30 Sets per Month Haida
Highlight:

2.5N Abrasion Tester

,

DIN Leather Shoe Soles Abrasion Tester

Product Description

DIN-53516 DIN Abrasion Tester 2.5N 5N For Leather And Shoe Soles







TEST STANDARD



DIN-53516, ISO-4649, GB/T9867, ASTM D5963, ISO 20344 8.3







STANDARD SPECIFICATIONS



Technical Index HD-P307
Specimens size 16mm, 6-15mm (D)
Fixture load 2.5N
Weight load 2.5N,5N
Fixture lateral displacement 4.2mm/wheel each lap
Wheel diameter 150mm
Wheel length 460mm
Wheel rotate speed 40rpm
Travel reservations 40m/20m
Abrasion speed 0.32m/sec
Dip angle 3°the angle of the specimen
back shaft with vertical roller face
Machine Size (L×W×H)70*30*30cm
Net Weight 55KG







































APPLICATION



DIN Type Abrasion Tester is to measure the abrasion resistance of rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/frictional wear in their actual service, such as tires, conveyor drive belts, leather and shoe soles

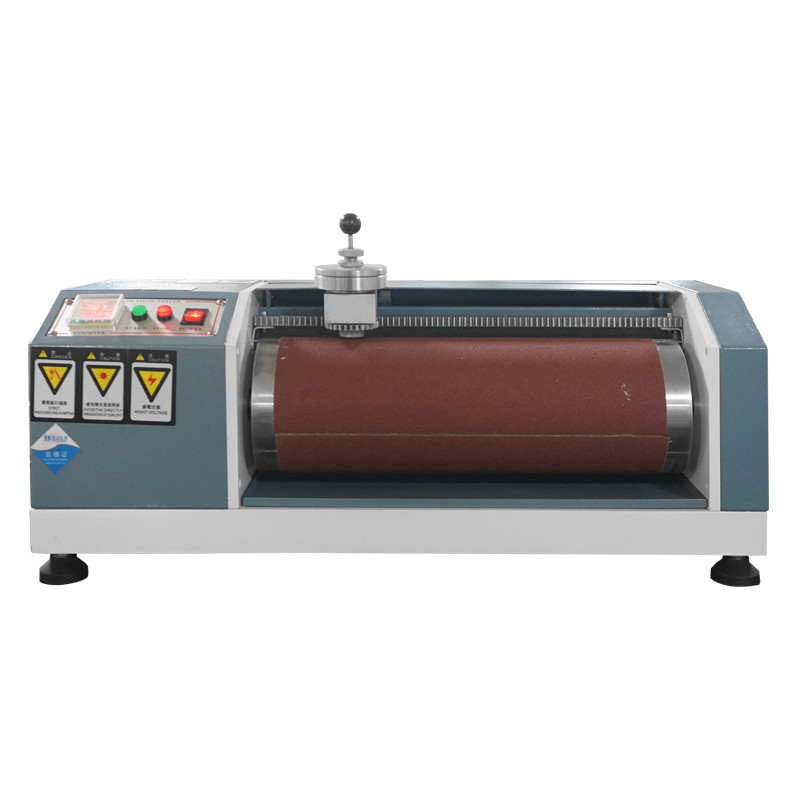

DIN-53516 DIN Abrasion Tester 2.5N 5N For Leather Shoe Soles 0    DIN-53516 DIN Abrasion Tester 2.5N 5N For Leather Shoe Soles 1
