| Place of Origin: | China |
|---|---|
| Brand Name: | Haida |
| Certification: | CE ISO |
| Model Number: | HD-P936 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 15 days after order |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 Sets per Month Haida |
| Wedge Angle Gauge: | 1 Each For 5° And 7° | Dimension: | 101 X 67 X 190 Cm |
|---|---|---|---|
| Weight: | 300kg | Motor Power: | 0.55 KW |
| Test Interface Speed: | 0.3 M/S (adjustable) | Compressed Air: | Minimum 6 Bar (user Self-provided) |
| High Light: | ISO 13287 Footwear Testing Equipment,Wedge Angle 7° Footwear Testing Equipment,COF Footwear Testing Equipment |
||
Shoe Slip Resistance Tester Related Outsole Materials Of Footwear Testing Equipment
Applications
This instrument is suitable for testing the anti-slip performance of the sole, heel or related outsole materials.
Working Principle
Apply the specified load through different media (glass, tile or specified). Set the specified friction times and speed. To measure the coefficient of friction of the sole to determine the slip resistance of the shoe. The method refers to the standard regulations.

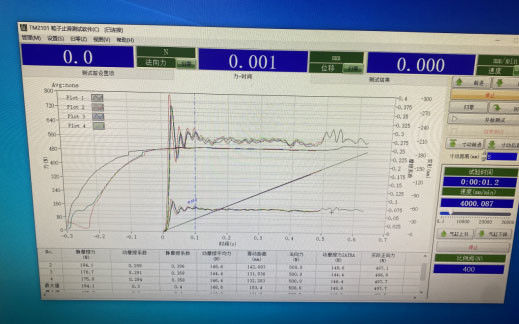

Test Report
A. Strength + time curve.
B. Friction coefficient + time curve.
C. Maximum static friction.
D. Maximum coefficient of static friction.
E. Kinetic friction.
F. Kinetic coefficient of friction.
Accessories of Shoe Anti-slip Testing Machine:
1. Articulated foot (diameter of contact disc is 40mm, center distance of contact disc is 2×70mm)
2. One pair of European size 40, 41, 42, 43, 44 shoe lasts
3. One piece of stainless steel test plate - for EN13287-2013
4. [Optional] SATRA STM 603R standard rubber block 1 piece (for tile and instrument calibration)
5. [Optional] SATRA STM 603T-2 version test standard tile 1 piece - for EN13287-2013
6. [Optional] A set of STM 603AC standard tiles - for SATRA TM144 and ASTM F2913
7. One computer and one printer each (built-in instrument)
Standard Parameter
| Model | HD-P936 |
| Weight | 300kg |
| Dimensions | 101 x 67 x 190 cm |
| Motor power | 0.55 kW |
| Wedge angle gauge | 1 each for 5° and 7° |
| Compressed air | minimum 6 bar (user self-provided) |
| Test interface speed | 0.3 m/S (adjustable) |
| Power source | 1∮ AC 220V |
| Sensor | vertical is 1KN±0.1%, horizontal is (1kN±0.1%) |
| Shoe last fixing device | 0～30° |
configuration | Built-in industrial computer, equipped with special anti-skid test control operating system |
| Vertical pressure | 0～1000N |
| Horizontal tension | 0～1000N |
| Static contact time | 0~5s |
| Test speed | 50～500mm/s±1% |

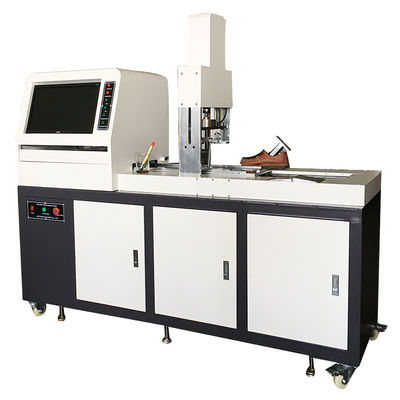

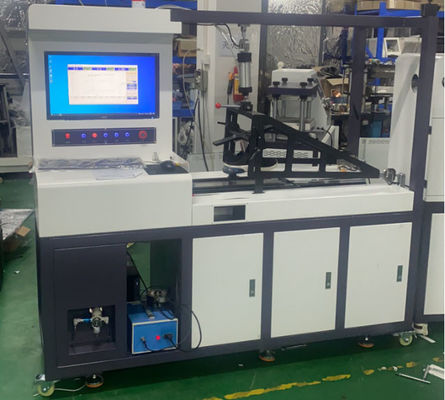

Slip Resistance Tester Image
