Water Absorption Desorption Shoe Wear Tester For Insole Insock LCD Display

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-P233
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Timer: LED, Accurate To 0.01s, 1 ~ 100 H He Number Of Specimens: 4 Groups
Roller Movement Frequency Reciprocating: 20 Times / Min Reciprocating Displacement: 50 ± 1mm
Water Flow Rate: 7.5 ± 2.5 Ml / Min Counter: 6-digit LCD Display
High Light:

Water Absorption Desorption Shoe Wear Tester


20 Times / Min Shoe Wear Tester

Product Description

LCD Display Water Absorption And Desorption Tester Of Insole And Insock AC220V




Product description:


Water absorption and desorption tester use for test the shoes upper raw materials,

such as: leather, artificial leather, fabric, etc., cut the test piece, the test piece placed on a wet floor to do a

certain pressure under repeated flexing action test, simulated walking, Shoes insole through the deflection

process to measure the material resistance to penetration index, shoe insole and insole of the water






Test standard:


ISO 20344 7.2 Determination of water absorption and desorption of insole and insock





Technical parameters:


Test chamber

Diameter of 120mm, 50mm wide roller

placed on the test piece, with the help of

compression force: 80 ± 5N spring or

pneumatic system so that the test piece

close to the drum, the roller along

the horizontal line in both directions to 50mm

amplitude for the level Scroll back and forth.

Roller movement frequency reciprocating 20 times / min
Reciprocating displacement 50 ± 1mm
Water flow rate 7.5 ± 2.5 ml / min
Timer LED, accurate to 0.01s, 1 ~ 100 h
Counter 6-digit LCD display
The number of specimens 4 groups
Power supply AC220V, 50Hz






Standard configuration:


Dies (optional): Compliant with dimensions of cut (110 ± 1) mm and width (40 ± 1) mm

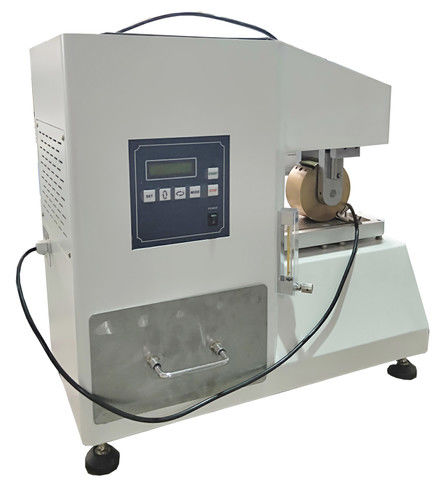

water absorption tester     Water Absorption Desorption Shoe Wear Tester For Insole Insock LCD Display 1






How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
