| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-P814 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Test Piece Size: | (64 X 64)mm | Number Of Test Pieces: | 12 Pieces |
|---|---|---|---|
| Fixture Close Distance: | 9.5+1.0) Mm | Counter: | LCD 0~999.999 |
| Machine Size: | (LxWxH)785x460x320mm | Volume: | Approx. 550x350x 300 Mm |
| High Light: | LCD 999 Counter Footwear Testing Equipment,SATRA TM25 Footwear Testing Equipment,12 Pieces Vamp Telescopic Tester |
||

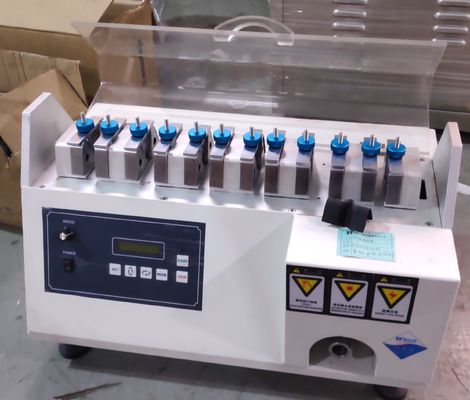

SATRA TM25 Vamp Telescopic Tester Footwear Testing Equipment LCD 999 Counter
INTRODUCTION
Vamp Telescopic Tester is a continuous telescopic quick action. It is used to simulate walking to observe how much the upper of the shoes is squeezed, stretched, folding and bent.
STANDARD
SATRA TM25, BS 3429, IS0-4643 etc.
STANDARA FEATURE
| Test piece size | (64 x 64)mm |
| Number of test pieces | 12 pieces |
| Fixture close distance | (9.5+1.0) mm |
| Counter | LCD0~999.999 |
| Fixture | V-shaped, angle horse (40±11° top radius room (6.4+0.5) mm arc shape |
| Machine Size | (LxWxH)785x460x320mm |
| Motor | AC 300W |
| Telescopic speed | (300 + 30) cpm |
| Volume | approx. 550x350x 300 mm |
| moving clamp stroke | (19 soil 1.5) mm |
| weight | approx. 200kg |
| Separation distance of the clamp | (28.5+2.51 mm |
| Power supply | 1∮,AC220V, 5A. |
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
