Automatic Textile Fabric Testing Equipment Hydraulic Diaphram Bursting Tester

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-A504
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Pressure Measurement Range: 2000kPa, L/C : 1kPa Distension Measurement Range: 2500N
Test Accuracy: Up To 75 ± 0.02 Mm Measuring Areas: 7.55cm² (Ø 31mm),50cm² (Ø 79.8mm)
Unit Of Measurement: KPa - Kgf/cm² - MmHg - Lb/in² - Atm Hydraulic System Rate Of Flow (adjustable): 20-600mL/min
Hydraulic Oil: Glycerine 85%, Distilled Water 15% Safety Sensor: Over Scale Auto-stop
High Light:

Automatic Textile Fabric Testing Equipment

,

2500N Textile Fabric Testing Equipment

,

2000kPa Textile Fabric Testing Equipment


Product Description

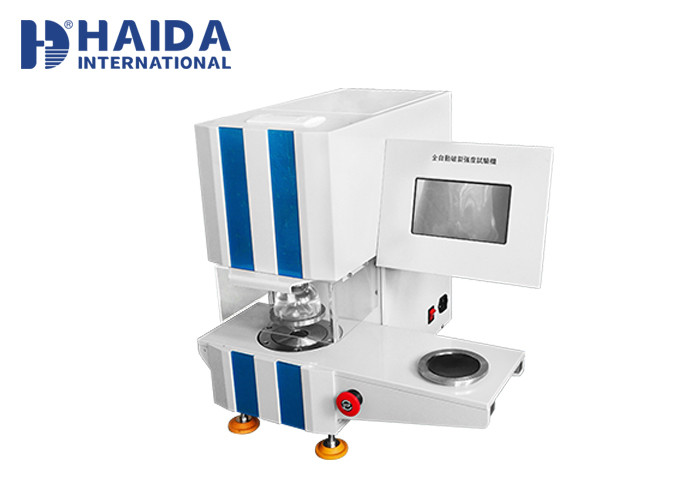

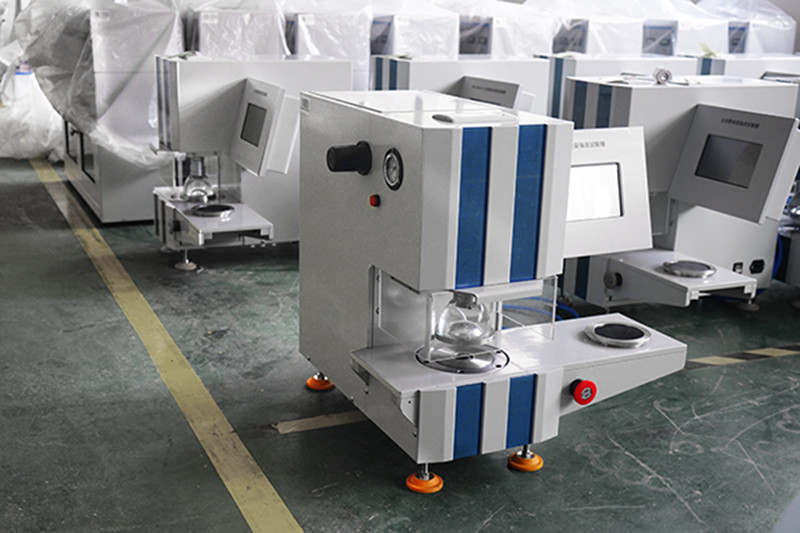

              Automatic Hydraulic Diaphram Bursting Tester Textile Fabric Testing Equipment


Introduction
Textile fabrics having no particular directions cannot be tested its strength in tensile testers;a multidirectional force generated by hydrostatic pressure is applied on fabric to check the strength of that
fabric, this phenomenon is called bursting strength testing.Automatic Hydraulic Diaphram Bursting Tester is specially designed to perform the bursting strength testing of kitted fabrics, with pneumatic control.It can also be used for leather, paper & card Boards etc.

Usage
To determine the bursting strength and distension at burst of woven and knitted fabrics as well as technical textiles,non-wovens,bonded fabrics,plastics,leather (artificial and natural) and cardboard.

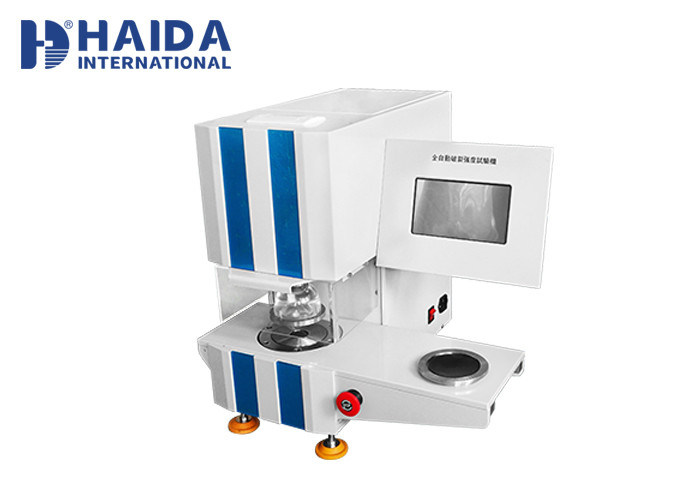

Automatic Textile Fabric Testing Equipment Hydraulic Diaphram Bursting Tester 0


Testing standard
ASTM D 3786 Standard Test Method for Hydraulic Bursting Strength of Textile Fabrics
Diaphragm Bursting Strength Tester Method
BS 4768 Determination of Bursting Strength and Bursting Distension
ISO 13938-1 Textiles - Bursting properties of fabrics, Hydraulic method for determination of bursting strength and bursting distension
ISO 2758 Paper - Determination of bursting strength
ISO 2759 Board - Determination of bursting strength
ISO 3303 Rubber - or plastics-coated fabrics - Determination of bursting strength - Hydraulic method
WSP 030.1.R3(12),BS 3424(PT6),ERT 80-4-20,EN 12332-2,IWS TM 29,ASTM D751,JIS L-1018



Automatic Textile Fabric Testing Equipment Hydraulic Diaphram Bursting Tester 1



Test procedure
The Burst Tester is designed for measuring the bursting strength of fabric materials subjected to an increasing hydrostatic pressure. This pressure is applied to a circular region of the specimen via an elastic diaphragm. The specimen is firmly held round the edge of this circular region by a pneumatic clamping device. When the pressure is applied, the specimen deforms together with the diaphragm. The bursting strength corresponds to the maximum pressure supported by the specimen before failure. Identical, in the principle to the multi-directional tensile test, Ball Burst Method for Fabrics, this measurement is independent from the cutting direction of the sample (machine or cross) since the failure naturally occurs in the least resistance direction.


Automatic Textile Fabric Testing Equipment Hydraulic Diaphram Bursting Tester 2



Procedure:
The fabric sample is clamped over the rubber diaphragm.
The pressure in the fluid increases at such a rate that the specimen bursts within 20 ± 3 sec. (P1).
The height (extension) of the diaphragm is noted.
Another test is carried out without a specimen.
The pressure to do this is noted and then deducted from the earlier reading.
(P1 - P2) is the actual bursting strength of the specimen.



Automatic Textile Fabric Testing Equipment Hydraulic Diaphram Bursting Tester 3Automatic Textile Fabric Testing Equipment Hydraulic Diaphram Bursting Tester 4


Technical details

Areas of Application

Textiles:Knitted and woven apparel, Technical textiles
Nonwovens:Wet wipes, surgical gowns/masks
Plastics:Food packaging, bin liners, sacks and various plastic products
Medical:Organ patches, hernia patches, wound dressings, animal skin

Paper:Kitchen paper, Toilet tissue, Other paper products

Pressure measurement range 2000kPa, L/C : 1kPa
Distension measurement range Up to 75 ± 0.02 mm
Measuring areas 7.55cm² (Ø 31mm),50cm² (Ø 79.8mm)
Unit of measurement kPa - kgf/cm² - mmHg - lb/in² - atm
  Constant Rate - Constant Pressure - Constant Distension –Timing
Hydraulic system rate of flow (adjustable) 20-600mL/min
Hydraulic oil Glycerine 85%, distilled water 15%
Safety sensor Over scale auto-stop
Diaphragm rubber thick ≤ 2 mm
Data port RS232 port for printer connection and 3 pin Mini-DIN connector for PC
Dimensions 550 x 450 x 700 mm
Power supply 220V,50Hz
Air requirements 600-800kPa
Weight 125kg


Automatic Textile Fabric Testing Equipment Hydraulic Diaphram Bursting Tester 5


Accessories supplied with the instrument
1.Main Unit:01 No.
2.Test Kit 7.55cm² (Ø 31mm) and 50cm² (Ø 79.8mm):01 No.(each)
3.Synthetic Rubber Diaphragms(Maufacturer:James Heal):02 Nos.
4.Diaphragm Unit Tightening wrench:01 No.
5.Air Pipe (To connect with compressor):01 No.
6.Glycerol (500mL):01 No.
7.USB software:01 No.
8.Power Cord:01 No.
9.This User’s Manual:01 No.
10. Inspection & Conformance Certificate:01 No.
