| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-P306-4 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Power: | Electronic | Interface: | LCD Display |
|---|---|---|---|
| Model: | HD-P306-4 | Stations: | 4 Stations |
| Count Display: | Projected Count: 0 ~ 999 999 Times; | Loading :: | A. Holder:200±1g |
| Highlight: | Textile Pilling Martindale Abrasion Tester,LCD Display Martindale Abrasion Tester,4 Stations Martindale Abrasion Tester |
||

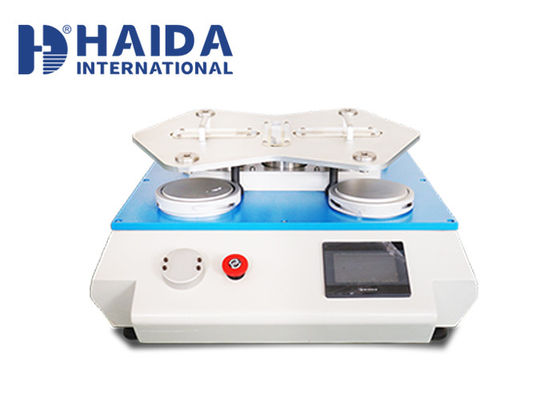

Textile Pilling Test Martindale Abrasion Tester Textileabrasion Resistance Test
Product Description
Martindale abrasion tester mainly applies to the pilling & abrasion resistance test of textile the similar fabric.
Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.
Test Standard
ASTM D4970, ISO12945-2 and other pilling degree test;
ASTM D4966, ISO12947 and other fabric abrasion tests.
Product Features
1. Adopt with LCD touch screen, clear and easy to operate;
2. With pill and abrasion testing progress, can meet various international standards;
3. Use reduce and increase counting testing method for easy operation;
4. With imported PLC, reliable and suitable for long time test.
Product Parameters
| Technical Index | HD-P306-4 | HD-P306-6 | HD-P306-8 |
| Consumables | Baize 4,Testing Cotton 4 | Baize 6,Testing Cotton 6 | Baize 8 ,Testing Cotton 8 |
| Interface | LCD display | ||
|
Count display |
Projected Count: 0 ~ 999 999 times; |
| Maximum stroke | 24 ± 0.5mm, 60.5 ± 0.5mm |
| Loading : | a. Holder:200±1g |
| b. Dress material counter weight: 395±2g | |
| c. Furnishings/Leather material counter weight: 594±2g | |
| d. Stainless steel butterfly slice: 260±1g | |
| Abrasion chunk effective rub diameter | A model: 200g(1.96N,9KPa)abrasion head￠ 28.8 -0.084mm |
| Pace speed of the holder | 50-2r/min |
| Sample loading pressure hammer | 2385±10g |
| consumables | Baize 4, Testing Cotton 4 |
| Diameter of abrasion fabric | 140mm |
| Diameter of Specimen | 38mm |
| Power | AC 220V/50Hz |
| Overall dimension: | 600x650x320mm |
| Weight | 76 KG |
Accessories kit:
|
|
Abrasion head for pilling test Abrasion head for abrasion test
