ISTA Test Package Pneumatic Impact Drop Testing Machine Packaging Paper Box Drop Impact Tester

Brand Name:	Haida
MOQ:	1
Price:	$1,500-2,500

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Drop Testing

Application:

Paper Testing, Impact Testing, Drop Testing

Customized Support:

OEM, ODM

Power:

AC220V,250W

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Control Method:

PLC Control

Display Method:

Touch Screen Display

Drop Height:

300-1800mm (can Be Customized)

Height Error:

≤1%

Max. Weight Of Sample:

0~100kg (can Be Customized)

Arm Size:

273mm *440mm (L*W)

Max. Size Of Sample For Face:

800*800*700mm (L*W*H)

Max. Size Of Sample For Edge:

800*800*700mm (L*W*H)

Max. Size Of Sample For Angle:

550*550*500mm (L*W*H)

Dimension:

1200*1700*2400mm (L*W*H)

Highlight:

Box Drop Pneumatic Drop Testing Machine

packaging Pneumatic Drop Testing Machine

Packaging Pneumatic Drop Testing Machine

Product Description

Products Description

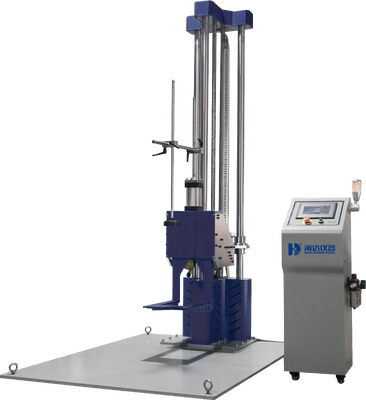

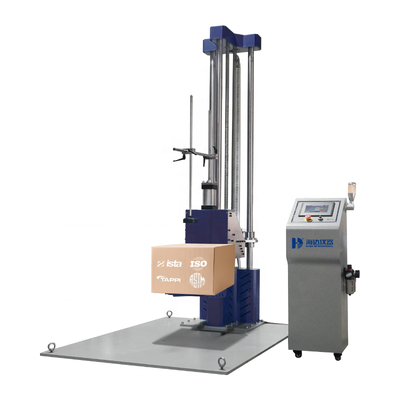

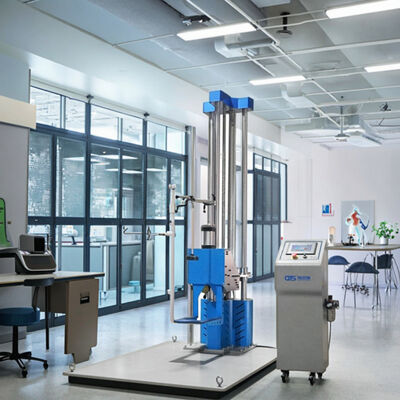

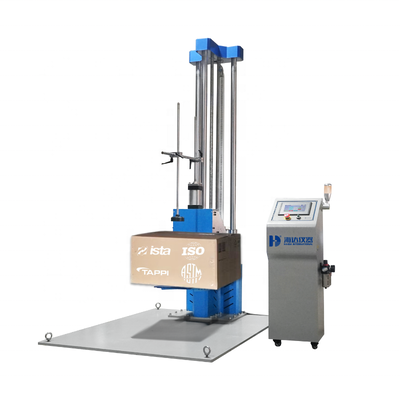

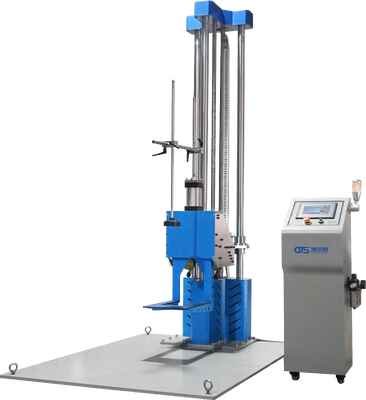

HD-A520-Q Pneumatic Single-Wing Drop Tester is suitable for testing the damage of product packaging when it is dropped, and assessing the strength of impact resistance during transportation and handling. This machine can perform free drop test on the surface, corner and edge of the package. It is equipped with a digital height display and an encoder for height tracking, so as to accurately give the data of the product drop height.

Product Specifications

Item	Description
Control method	PLC control
Display method	Touch screen display (can be customized)
Drop height	300-1800 mm
Height error	≤1%
Max. weight of sample	0~100kg
Arm size	273mm 440mm (LW)
Max. size of sample for face	800800700mm (LWH)
Max. size of sample for Edge	800800700mm (LWH)
Max. size of sample for Angle	550550500mm (LWH)
Motor	200W adjustable-speed motor
Dimension	120017002400mm (LWH)
Weight	600 kg ( Based on Specifications )
Air source	≥0.6Mpa
Power	1∮ AC220V,250W

Features
1. Adopt single-arm&Three-column structure, with functions of pneumatic reset, pneumatic control drop and electric lifting device;
2. Equipped with a buffer device to reduce damage to other parts of the instrument due to the impact of the sample holder, thereby increasing the life of the instrument.
3. Compared with the traditional chain up and down transmission, this machine adopts screw drive, so that the instrument becomes more stable and the test results are more accurate.

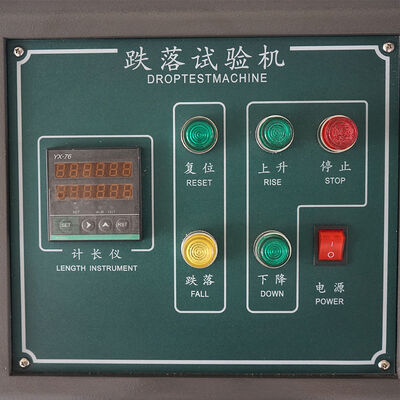

4. Touch screen and PLC control, can set the test height and the number of drops etc.
5. The stroke limit protection and leakage protection design ensure safe operation.

Applications

Recommend Products

Company Profile

Founded in 2004, Haida is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.

FAQ

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from
our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can
provide video-con

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
If you want to know more information...
Please leave a message below and click " CONTACT SUPPLIER "
Thanks for your time and attention!
