ISTA Carton Paper Box Compression Tester High Precision Box Carton Package Compressive Strength Testing Machine Equipment

Brand Name:	Haida
MOQ:	1
Price:	$6,973.04-9,762.26

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy Class:

High Accuracy

Accuracy:

±0.5%

Application:

Compression Testing, Strength Testing, Carton Box Testing, Compressive Strength Testing, Carton Testing

Customized Support:

OEM, ODM

Power:

1.5kw

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Max. Force:

5000KG (50KN)

Load Cell:

4 Load Cell For Highest Accuracy

Control System:

Windows 10, RS-232 Interface

Motor:

Pana.sonic Servo Motor W/ DC Variable Speed Drive System

Force Reading:

Kgf, Ibf, N, KN, T Etc

Load Cell Resolution:

1/250,000

Load Precision:

Within ±0.5%

Parallelism Of Platens:

Parallel Within ±2.5mm

Effective Test Area:

1300*1500*1500mm

Test Speed:

10 ±3mm/min (0.01~200mm/min Adjustable)

Highlight:

carton box compression tester

High Precision Carton Compression Tester

Product Description

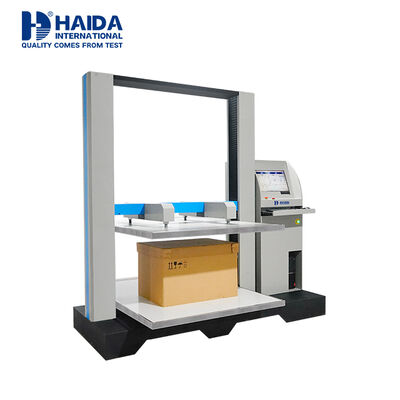

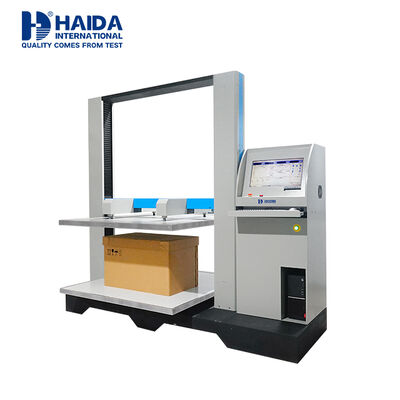

Box Compression tester

Product Description

This Box Compression Tester is specialized for testing the compression performance of cartons.

It is suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages.Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters,paper boxes, paper cans, container drums and etc.

Design Standard

ISO 12048; ISO 2872; ISO 2874; GB/T 16491; GB/T 4857.4; GB/T-4857.16; ASTM D642; ASTM D4169; TAPPI T804; JIS Z0212

Specification

Model	HD-A505S-1200	HD-A505S-1500
Capacity	20kN	50kN
*Test Space (LWH)*	100012001500 mm	130015001500 mm
Resolution	1/250,000	1/250,000
Power	AC 220V, 50 Hz, 1.5kW	AC 220V, 50 Hz, 1.5kW

Item	Description
Max. Force	5000kg(50KN)
Load cell	4 load cell for highest accuracy
Control system	Windows 10, RS-232 interface

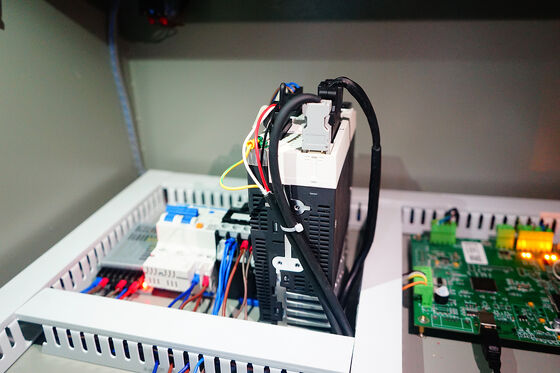

Motor	Pana.sonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Load cell Resolution	1/250,000
Load Precision	within ±0.5%
Effective test area	130015001500mm
Test speed	0.01~200mm/min
Software	Mtest HD-002-A(Independent R&D)
Data display	Load, displacement, speed, loading rate and elapsed time
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Features

1.Clear software interface with obvious icons, can real-time display of each test data and can monitor the test process at any time.
2. Multi-purpose - customer can choose compression test or stacking test as per their requirements
3. Double Ball guide rod design. ultra-high transmission accuracy, smooth operation and high power transmission efficiency.

Low failure, long life and low noise
4. Equipped with many intelligent configuration, such as limit stroke protection, overload protection, and fault prompts to
ensure the safety of users' operations

5. Chinese-English bilingual test system to meet more needs;

The Compression Testers can operate in five ways

1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates
2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates
3. Maximum load: test the maximum load of various corrugated cartons and beehive crates
4. Stacking test: stack test of various corrugated cartons and beehive crates
5. Cyclic test: dynamic strain according to strength & stroke

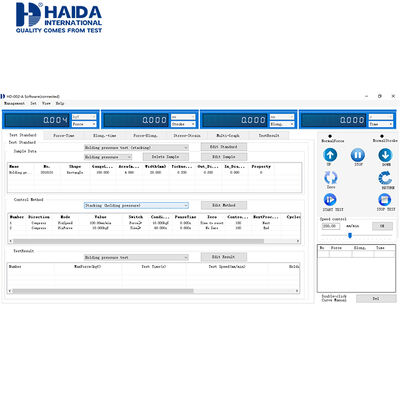

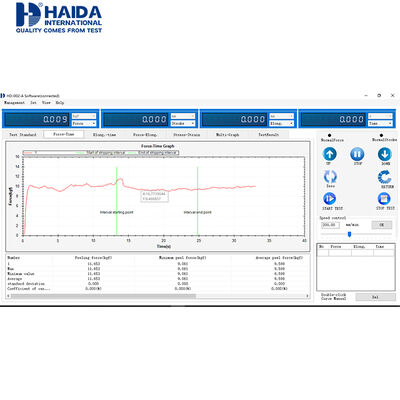

SOFTWARE – HD-002-A(Independent R&D)

Paper&Package Tester

Company Profile

Founded in 2004, Haida® is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.

FAQ

Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
12 months warranty.

Repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual.

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
If you want to know more information...
Please leave a message below and click " CONTACT SUPPLIER "
Thanks for your time and attention!
