ISTA Compression Tester 50kN/5000kg Computer Control High Accuracy Lab Concrete Compression Strength Testing Machine Equipment

Brand Name:	Haida
MOQ:	1
Price:	RM 26,236.41-30,272.78

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy Class:

Standard Accuracy

Accuracy:

±0.5%

Application:

Paper Testing, Strength Testing, Compression Testing

Customized Support:

OEM, ODM

Power:

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Max. Force:

50kN/5000kg

Load Cell:

1 Load Cell For Highest Accuracy

Control System:

Windows 10, RS-232 Interface

Motor:

Pana.sonic. Servo Motor W/ DC Variable Speed Drive System

Force Reading:

Kgf, Ibf, N, KN, T Etc

Load Cell Resolution:

1/250,000

Load Precision:

Within ±0.5%

Effective Test Area:

1300*1500*1500mm

Dimensions:

2180*17500*2240mm

Software:

HD-002-A(Independent R&D)

Highlight:

High Accuracy Concrete Compression Tester Machine

Lab Concrete Compression Strength Testing Machine

Product Description

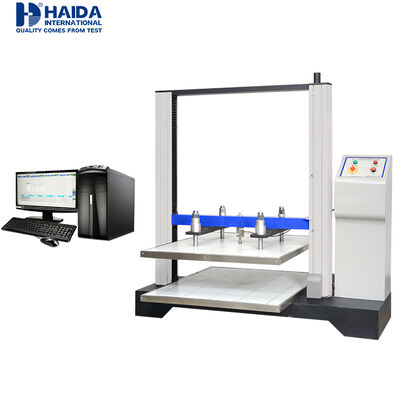

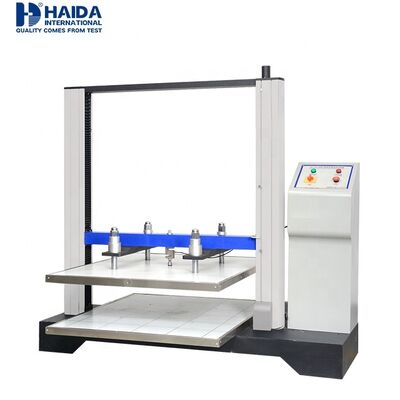

HD-A502S-1500 Computer Control Compression Test Machine

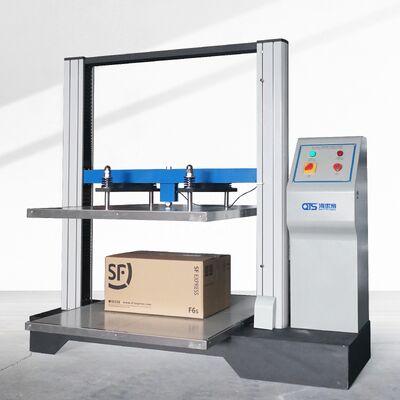

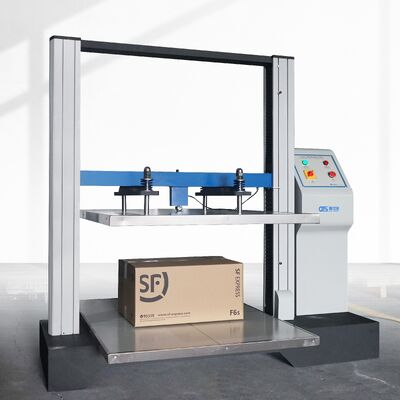

HD-A502S Series Computer control compression test Machine is specialized for testing the compression performance of cartons. It is suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages. Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc. This instrument can make compression tests of packages (boxes) or packing and determine their piling up resistance (for storage and transport). These tests are called B.C.T. (Box Compression Test).

Specification

Model	Capacity	*Test Space (LWH)*	*Dimension (LWH)*	Weight	Power
HD-A502S-900	10kN/1000kg	700900900mm	12009001450mm	350kg	500w
HD-A502S-1200	20kN/2000kg	100012001000mm	185012001700mm	700kg	550w
HD-A502S-1500	50kN/5000kg	130015001500mm	218015002240mm	1400kg	900w

Item	Description
Max. Force	50kN/5000kg
Load cell	1 load cell for highest accuracy
Control system	Windows 10, RS-232 interface
Motor	Pana.sonic. servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc (Switching Function)
Load cell Resolution	1/250,000
Load Precision	within ±0.5%
Parallelism of Platens	Parallel within ±2.5mm
Effective test area (LWH)	130015001500mm
Dimension (LWH)	218015002240mm
Weight	1400kg (Based on Specifications)
Power	single-phase, 220V±10%, 50/60Hz (can be appointed)
Test speed	10 ±3mm/min (0.01~200mm/min adjustable)
Software	Mtest HD-002-A(Independent R&D)
Data display	Load, displacement, speed, loading rate and elapsed time
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Machine Features

1.Clear software interface with obvious icons, can real-time display of each test data and can monitor the test process at any time.

2.Multi-purpose - customer can choose compression test or stacking test as per their requirements.
3.Double Ballguide rod design. ultra-high transmission accuracy, smooth operation and high power transmission efficiency. Low failure, long life and low noise.
4.Equipped with many intelligent configuration, such as limit stroke protection, overload protection, and fault prompts to ensure the safety of users' operations.
5.Chinese-English bilingual test system to meet more needs;

The Compression Testers can operate in five ways
1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates
2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates
3. Maximum load: test the maximum load of various corrugated cartons and beehive crates
4. Stacking test: stack test of various corrugated cartons and beehive crates
5. Cyclic test: dynamic strain according to strength & stroke
