Electronic Inhalation Devices Digital Suction Resistance Tester for Inhalation Machine

Brand Name:	Haida
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

±0.05MM

Application:

Vape Cartridge

Customized Support:

OEM, ODM

Power:

AC220V/50HZ

Protection Class:

Voltage:

220 V, 380 V

Warranty:

1 Year

Logo/graphic Design:

Control System:

Touch Screen

Suction Mode:

Sine Wave/trapezoidal Wave

Suction Speed:

0.1~60ml/s Can Be Set

Suction Volume:

1~100ml (accuracy ± 0.1%)

Each Puff Interval:

0.1~999 Seconds Can Be Set

Suction Interval:

0.1~999 Seconds Can Be Set

Puff No.:

1~999999 Can Be Set

Negative Pressure Sensor:

0~ -3000PA; 0.2%FS

Alarm Function:

If Product Is Unqualified, System Will Alarm.

Product Description

8019-HD

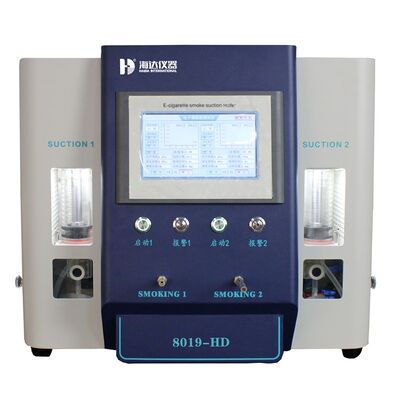

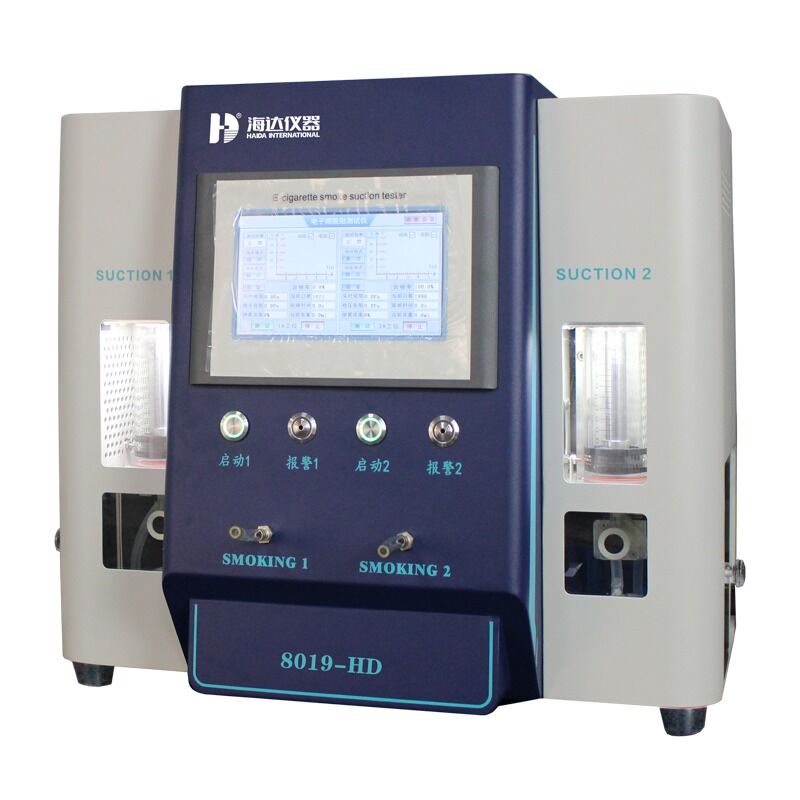

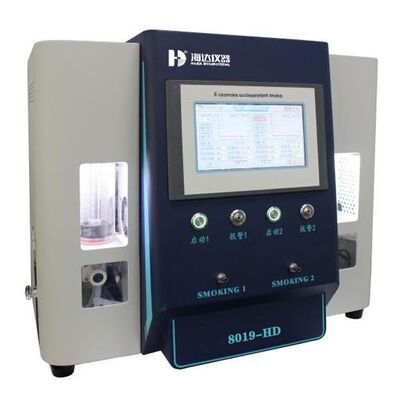

Suction Resistance Test Machine

Suction Resistance Test Machine measures inhalation resistance for aerosol products under quality control. It simulates human inhalation at 17.5ml/s flow rate, generating vacuum pressure to determine resistance.

Specification

Model	8019-HD
Control system	Touch screen
Suction mode	Sine wave/trapezoidal wave
Suction speed	0.1~60ml/s can be set
Suction volume	1~100ml (accuracy ± 0.1%)
Each puff interval	0.1~999 seconds can be set
Suction interval	0.1~999 seconds can be set
Puff No.	1~999999 can be set
Data storage	Can save 1000 group data and export to usb, use usb could save data directly.
Other function	Could set upper and lower limit parameters to automatically judge whether the product is qualified or not.
Negative pressure sensor	0~ -3000PA; 0.2%FS
Alarm function	If product is unqualified, system will alarm.
Product dimension	550430480mm
Power supply	AC220V, 50Hz

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
