HD Tobacco Stick Digital Suction Resistance Measurement Equipment for Heating Sticks 1Pa Resolution Airflow Pressure Drop Meter

Brand Name:	Haida
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy Class:

Standard Accuracy

Accuracy:

±0.05MM

Application:

Vape Cartridge, Tobacco Stick Testing, Air Resistance Test, Airflow Resistance Testing

Customized Support:

OEM, ODM

Power:

AC220V/50HZ

Protection Class:

Voltage:

220 V

Warranty:

1 Year

Measuring Range:

1 ~ 10 KPa

Resolution:

1 Pa

Measuring Accuracy:

<1%

Test Time:

20 Seconds On Average

Test Head Diameter:

12mm,18mm,20mm,22mm

Test Head Depth:

9 Mm

PC Communication:

USB Port Connection

Dimensions:

L520 X W280 X H300 Mm

Weight:

15 Kg

Product Description

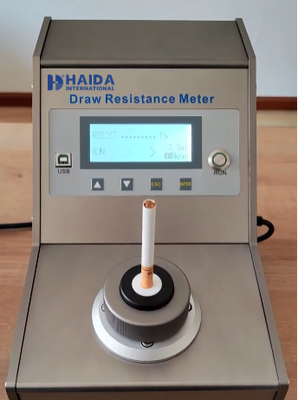

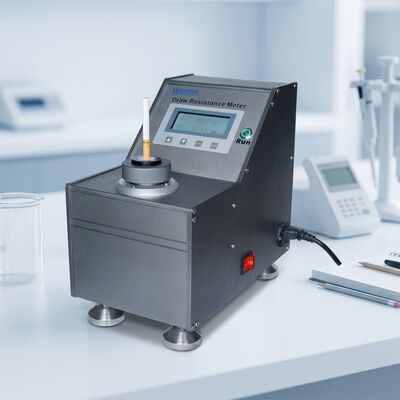

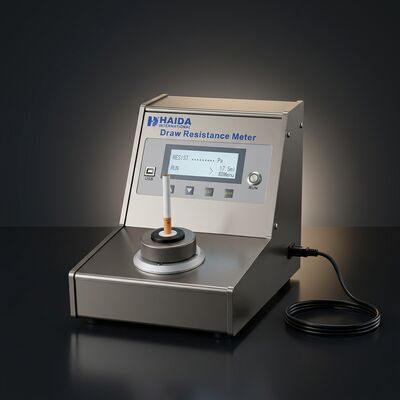

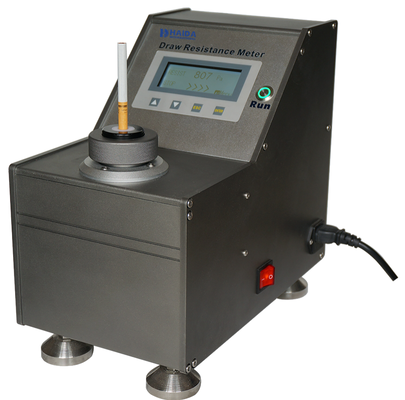

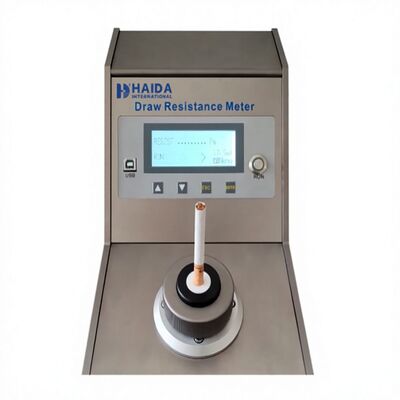

Draw Resistance Test Machine

8019-HD

The 8019-HD Airflow Performance Apparatus is a laboratory-grade instrument designed for precise physical property analysis of
cylindrical heating sticks and electronic vaporization devices. By simulating standardized inhalation patterns (17.5ml/s), it
accurately evaluates the internal pressure drop and suction consistency.

Test Standard

ISO6565,GB/T 22838.5,GB/T 18767

Test Principle

The instrument simulates a standardized inhalation process at a constant flow rate of 17.5ml/s. When air passes through the cylindrical specimen or vapor device, a specific vacuum pressure is generated at the suction end. This pressure characterizes the Airflow Resistance (commonly referred to as Pressure Drop). By precisely measuring this differential pressure, the suction performance of the sample is accurately evaluated.

Technical Advantages

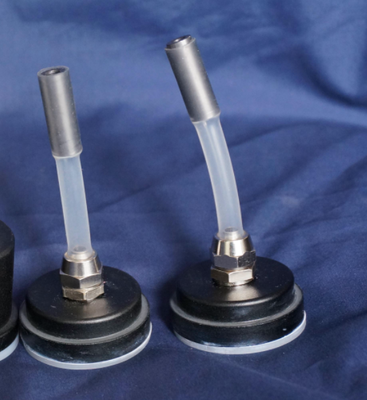

* Wide Compatibility: Supports multi-specification test heads (12mm, 18mm, 20mm, 22mm) for different product diameters.
* Data Integrity: Integrated digital display with automatic calculation of average values and standard deviation.
* Durable Build: Industrial-grade sensors ensure a long service life with a 24-month warranty support.

Specification

item	value
Type	Testing Machine
Protection Class	/
Voltage	220 V
Accuracy Class	Standard Accuracy
Accuracy	±0.05MM
place of origin	China
	Guangdong
customized support	OEM, ODM
power	AC220V/50HZ
brand name	Haida
Application	Vape Cartridge, Tobacco Stick Testing, Air resistance test, Airflow Resistance Testing
warranty	1 year
Measuring range	1 ~ 10 kPa
Resolution	1 Pa
Measuring accuracy	<1%
Test time	20 seconds on average
Test head diameter	12mm,18mm,20mm,22mm
Test head depth	9 mm
PC communication	USB port connection
Dimensions	L520 x W280 x H300 mm
Weight	15 kg

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

For over two decades Haida Equipment has been a trusted global partner in reliability testing solutions Headquartered in Dong Guan our modern 17 568 sq m manufacturing hub houses five specialized production lines integrating R D manufacturing and calibration services under one roof In addition to our hardware expertise we possess robust in house software development and upgrade capabilities supported by independent intellectual property rights This dual strength ensures seamless system integration advanced data management and future ready adaptability for our clients. Our testing equipment validates quality and durability across key industries including packaging electronics automotive aerospace new energy and certified laboratories This broad applicability is grounded in rigorous quality assurance Every stage from material sourcing to final assembly is governed by our ISO 9001 certified processes delivering consistent and reliable performance. To support our international clients we offer comprehensive services through a dedicated overseas team and local partners Services extend from remote technical support to on site installation training and maintenance all designed to minimize operational downtime. Our core product range includes material testing systems environmental simulation chambers packaging transport testing furniture testing machines battery testing equipment and vibration test systems We also engineer custom non standard solutions tailored to specific requirements All products comply with international standards such as CE UL and GSA meeting regional regulatory energy efficiency and environmental guidelines to facilitate global market access Guided by our mission to create value for customers and enhance happiness for employees Haida Equipment is committed to becoming a globally recognized brand in reliability testing equipment delivering trust innovation and excellence across industries.
