ASTM D2843 8 Station Electronic Atomizer Precision Testing Machine E-vaporizer Testing Equipment

Brand Name:	Haida
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

Testing Machine

Accuracy:

±0.05MM

Application:

Vape Cartridge

Customized Support:

OEM, ODM

Power:

AC220V/50HZ

Protection Class:

Voltage:

220 V, 380 V

Warranty:

1 Year

Logo/graphic Design:

Button Function:

With Fixture And Fire Button

Supply Air Source:

0.4~0.8MPa

Control System:

PLC+10.5 Inch Touch Screen

Suction Mode:

Sine Wave/trapezoidal Wave

Suction Speed:

0.1~60ml/s Can Be Set

Suction Volume:

1~100ml (accuracy ± 0.1%)

Each Puff Interval:

0.1~999 Seconds Can Be Set

Suction Interval:

0.1~999 Seconds Can Be Set

Puff No.:

1~999999 Can Be Set

Product Description

8021-HD

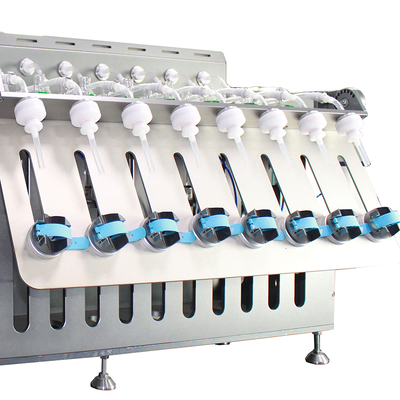

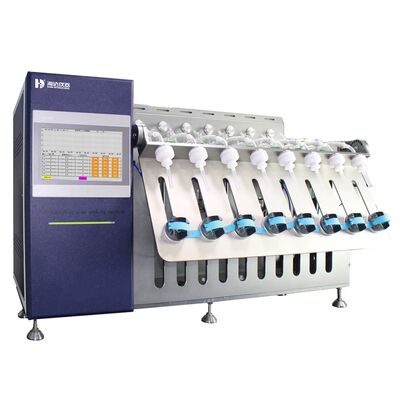

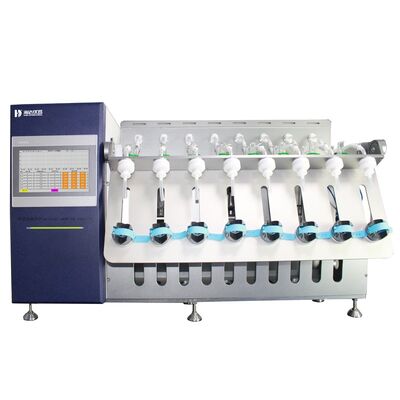

8 Station Electronic Atomizer Precision Testing Machine

This testing equipment for electronic atomizers employs pneumatic cylinder simulation to replicate human inhalation patterns. By configuring puff duration, vapor volume, and usage cycles, it evaluates atomizer performance parameters. The integrated vapor capture chamber collects aerosol samples for subsequent material analysis.

Specification

Product dimension	1200610730mm
Power supply	AC220V, 50HZ
Net weight	About 176kg
Button function	With fixture and fire button
Supply air source	0.4~0.8MPa

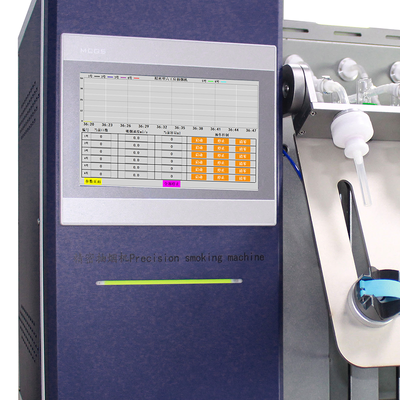

Control system	PLC+10.5 inch touch screen
Suction mode	Sine wave/trapezoidal wave
Suction speed	0.1~60ml/s can be set
Suction volume	1~100ml (accuracy ± 0.1%)
Each puff interval	0.1~999 seconds can be set
Suction interval	0.1~999 seconds can be set
Puff No.	1~999999 can be set
