| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-E711 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 150 Sets per Month Haida |
| Exposure Area Of Each Test Position: | ISO 65.25cm² (145 X 45) Mm | Water Spray System: | The Water Spray Time Can Be Set In 999 Minutes, And The Spray Stop Time Can Be Set In 999 Minutes |
|---|---|---|---|
| Accuracy Range: | Setting/indication Accuracy: Temperature 0.1℃, Humidity 1%RH | Temperature And Humidity Sensor: | Platinum Resistance.PT100Ω/MV |
| Heating System: | Fully Independent System, Nickel-chromium Alloy Electric Heating Heater | Humidification System: | External Isolation, All Stainless Steel Shallow Surface Evaporative Humidifier |
| Highlight: | ISO Color Fastness Testing Equipment,5r/min Color Fastness Testing Equipment,5r/min color fastness testing machine |
||

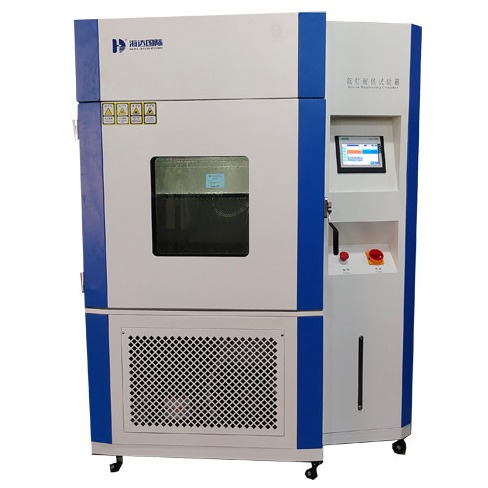

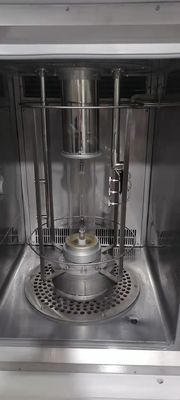

Xenon Weathering Chamber Automatic
Air Cooled Light Fastness Tester Color Fastness To Light
General Specifications
Package size: (W x D x H) 1280×1150×2200mm
Power supply: AC380V±10%, 50/60Hz (can be specified)
Gross weight: 400kg
Introduce
This machine is designed to meet the requirements of ISO 105 B02 and AATCC Test Method 16 standards. It has a rotating sample holder for precise control of key test parameters including spectrum, irradiance, relative humidity, chamber temperature and black standard temperature.
Usage
Determines the fading resistance of textile colors when exposed to artificial light (xenon arc lamps) representative of natural sunlight.
Standard Test
ISO 105-B02 Textiles -- Tests for colour fastness -- Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04 Textiles -- Tests for colour fastness -- Part B04: Colour fastness to artificial weathering: Xenon arc fading lamp test
AATCC TM 16 – Option 3 Colorfastness to Light: Xenon Arc
Feature
1. Xenon lamp ventilation and cooling device: The box temperature ventilation and cooling system adopts Taiwan's high temperature resistant turbo fan to cool down, and the cooling system in the box cools down.
2. Light box temperature alarm device: It can monitor the temperature in the light box through the PT100 high-precision sensor, monitor the over-temperature alarm and cut off the power of the xenon lamp.
3. The blackboard thermometer adopts wired transmission technology, which effectively improves the control accuracy. (using high temperature resistant isolation shielded communication line)
4. Optical fiber transmission is used to measure the radiation intensity of the xenon lamp to avoid measurement errors caused by temperature. (optional accessory)
5. The BPT (Black Panel Thermometer) or BST (Black Standard Thermometer) is mounted on the sample holder.

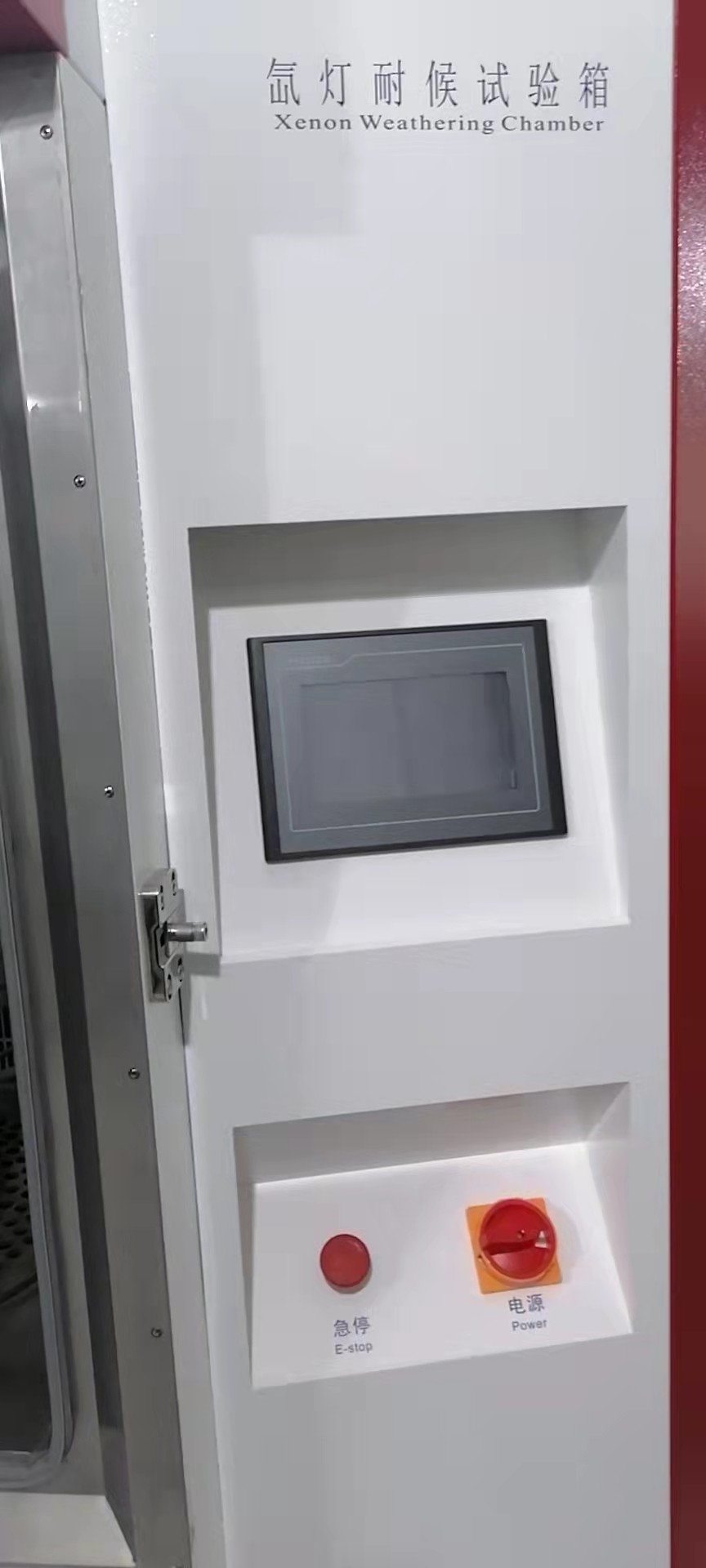

6. Device: In order to record the working time of each test, the device is equipped with a timer on the operation panel, which can control the time of the device, and the device will automatically shut down after the timer is over.
7. Protection device: In order to make the xenon arc lamp work normally without damage, the xenon lamp will automatically go out when the door is opened, and the whole machine will stop working.
Technical Parameters
| Internal Dimension (W*D*H) | 600×600×800 | |
| External Dimension (W*D*H) | 1220×1100×2100 | |
| performance indicators | Chamber temperature | 10～95℃ |
| Temperature accuracy | ±5℃ | |
| Black panel temperature | 30～110℃ | |
| Chamber humidity range | 15％RH～85％RH | |
| Humidity accuracy | ±5％RH | |
| Irradiance Range | 420nm | |
| Irradiance strength | 0.55～1.3W/m2 | |
| Irradiance accuracy | ±0.03W/m2/ | |

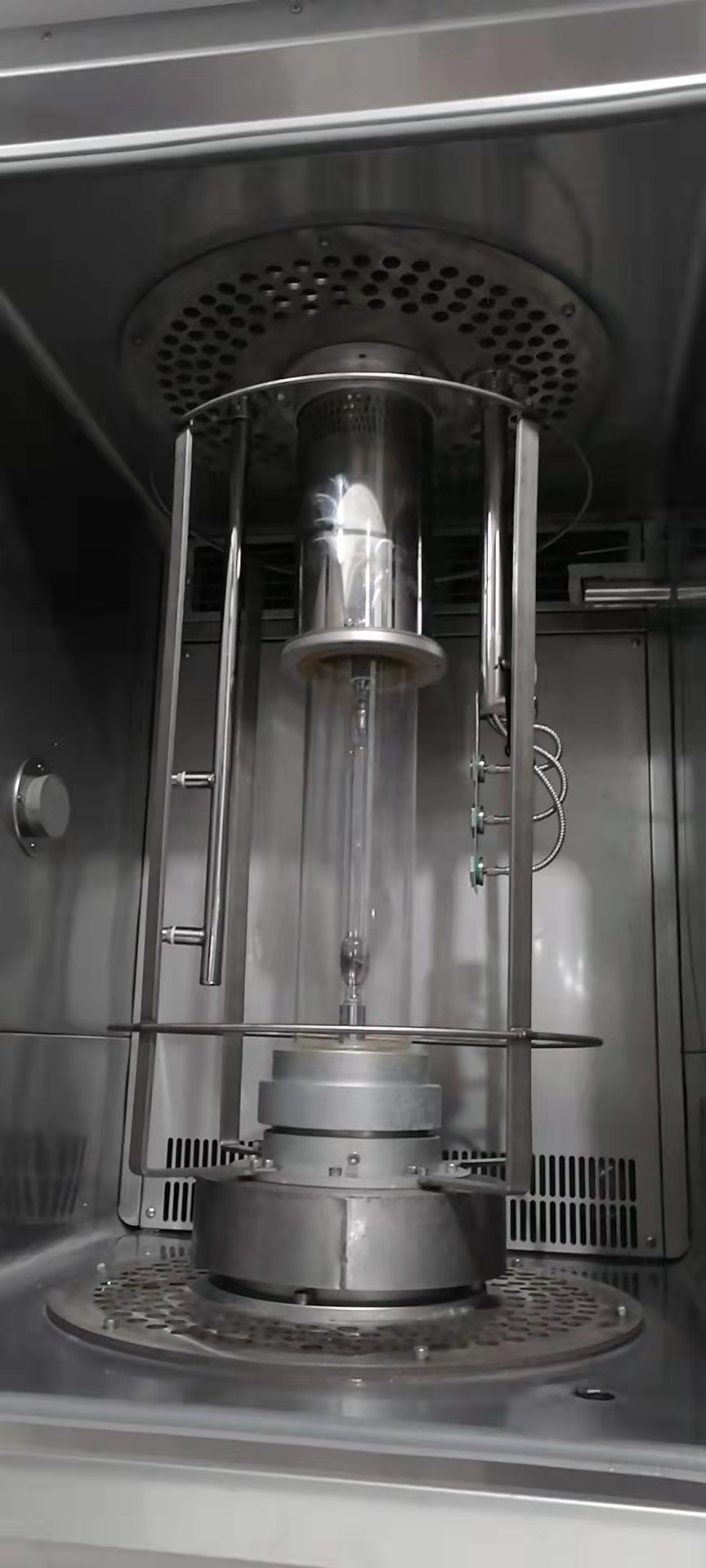

| Xenon lamp power | 2500W air-cooled xenon arc lamp (recommend replacing lamps every 1200 hours) | |
| Rack rotating speed | 5r/min | |
| Test Positions | 10 pieces of 145x 45mm, 5 pieces of 145x 75mm | |
| Exposure Area of each Test Position |
ISO 65.25cm² (145 x 45) mm AATCC 108.75cm² (145 x 75) mm |
|
| operation control system | water spray system | The water spray time can be set in 999 minutes, and the spray stop time can be set in 999 minutes |
| Accuracy range | Setting/indication accuracy: temperature 0.1℃, humidity 1%RH | |
| Temperature and humidity sensor | Platinum resistance.PT100Ω/MV | |
| Heating system | Fully independent system, nickel-chromium alloy electric heating heater | |
| humidification system | External isolation, all stainless steel shallow surface evaporative humidifier | |
| blackboard temperature | Bimetal Blackboard Thermometer | |
| circulatory system | Temperature-resistant and low-noise air-conditioning motor. Multi-blade centrifugal fan | |
| material | Internal chamber material | High-quality carbon steel plate, phosphating electrostatic spray treatment / stainless steel matte line hairline treatment |
| External chamber material | SUS 304 # Stainless Steel, anti-rust | |
| Sample holder material | SUS 304 # Stainless Steel, anti-rust | |
| Standard accessories | radiation-proof glass windows-1 set, Xenon lamp-1 PC | |
| safety protection | Leakage, short circuit, over temperature, water shortage, motor overheating, overcurrent protection | |
| Power supply | AC380V±10％ 50±0.5Hz,13W | |
About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Why Choose Us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: Do you accept customization service?
