Six Color Standard Light Source Check Light Box Color Assessment Cabinet

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-A825-1
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detail Information
Power: Electronic Inner Size: (L×W×H)650×450×350㎜
Dimension Size: (L×W×H)700×500×700㎜ Packaging Size: (L×W×H)850x670x540mm
Use: Textile Weight: 33KG
Standard: JIS-Z8724,CIE-30 Power Supply: 1∮,AC 220V,1.5A
High Light:

Six Color Check Light Box

,

Textile Color Check Light Box


Product Description

Six-Color Standard Light Source Color Check Light Box Color Assessment Cabinet





APPLICATION

Color Assessment Cabinet, suitable for all industries and applications where there is a need to maintain color consistency and quality-e.g. Automotive, Ceramics, Cosmetics, Foodstuffs, Footwear, Furniture, knitwear, Leather, Ophthalmic, Dyeing, Packaging, Printing, Inks and Textile.

Since different light source has different radiant energy, when they arrive on the surface of an article, different colors display. With regard to color management in industrial production, when a checker has compared the color consistence between products and examples, but there may exist difference between light source used here and light source applied by the client. In such condition, color under different light source differs. It always brings following issues: Client makes complaint for color difference even requires for rejection of goods, seriously damaging company credit.



To resolve the above problem, the most effective way is to check good color under same light source .For example ,international Practice applies Artificial Daylight D65 as standard light source for checking goods color.



Six Color Standard Light Source Check Light Box Color Assessment Cabinet 0





FEATURES

1.Provide several light sources, i.e. D65, TL84, UV, F/A

2.Apply microcomputer to switch between the light sources quickly.

3.Super timing function to record use time of each light source separately.

4.All fittings are imported, ensuring quality.

5.Product size is 675mm*455mm*415mm.

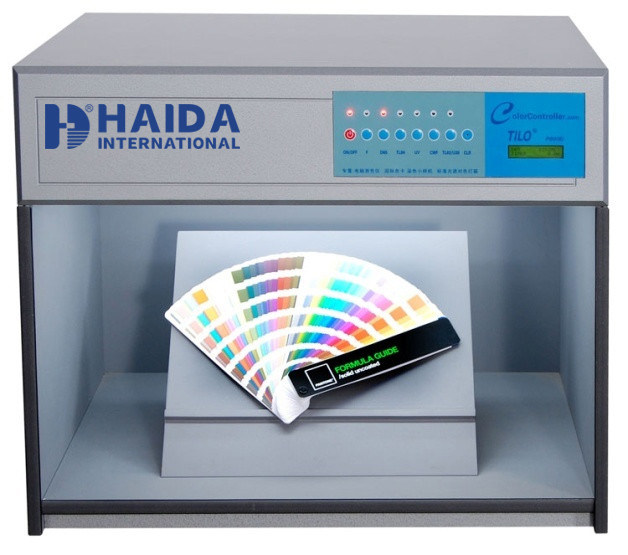

COLOR ASSESSMENT CABINET PRODUCT IMAGE



Six Color Standard Light Source Check Light Box Color Assessment Cabinet 1



INSTRUCTIONS FOR LIGHT SOURCE

Name kelvin watt Lamp Type Uses
D65 6500K 2×18W Fluorescent Artificial Daylight PHILIPS TLD18W/965 International Standard Artificial Daylight
TL84 4000K 2×18W Fluorescent PHILIPS TLD 18W/840 European,Japan Shop light Source
F/A 2700K 4×40W Incandescent PHILIPS E27 Sun-setting Light Yellow Light Source
UV / 1×18W Fluorescent PHILIPS 18W/BLBBLACK LIGHT Ultraviolet Lamp





LIGHT SOURCE:

D65, TL84, CWF, UV, F/A,U30.
