Place of Origin: | China |
---|---|
Brand Name: | Haida |
Certification: | CE ISO |
Model Number: | HD-E711-1 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
Delivery Time: | 20 days after order |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 set per month |
Internal Dimension (W*D*H): | 600×600×800 | External Dimension (W*D*H): | 1220×1100×2100 |
---|---|---|---|
Chamber Temperature: | 10~95℃ | Temperature Accuracy: | ±5℃ |
Black Panel Temperature: | 15 Liters | Humidity Accuracy: | ±5%RH |
Irradiance Range: | 420nm | Irradiance Strength: | 0.55~1.3W/m2 |
Highlight: | 5r/Min Weather Fastness Testing Equipment,15 Liters Color Fastness Testing Equipment |

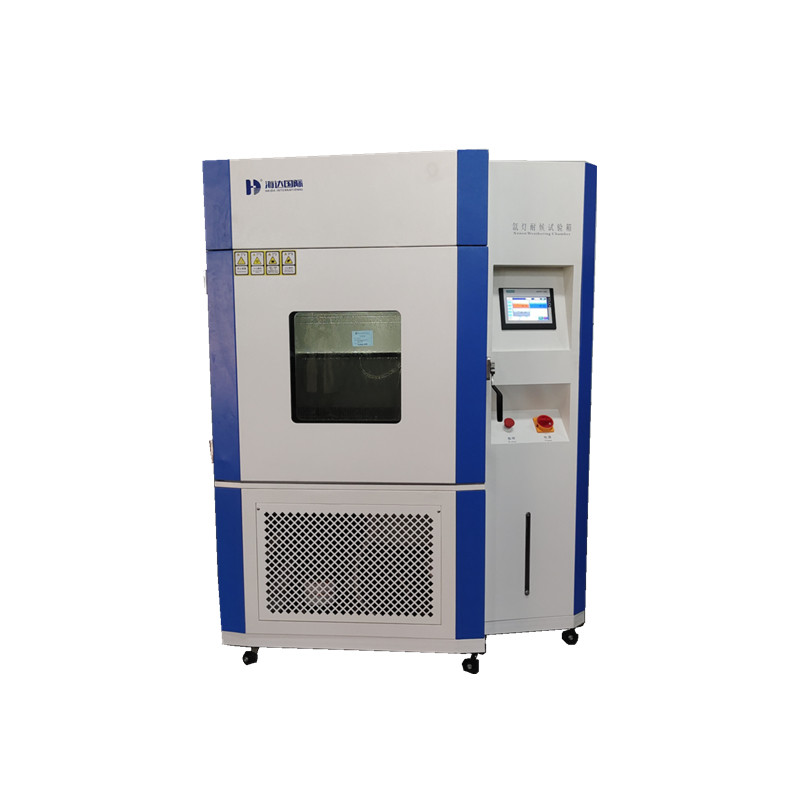

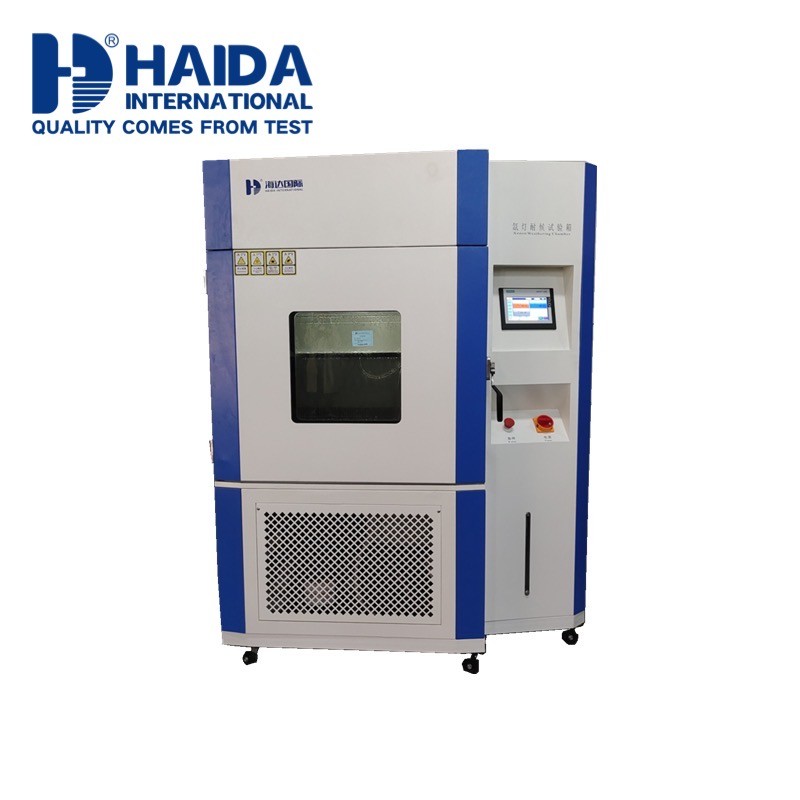

Xenon Weathering Chamber Air Cooling Light Fastness Tester Color Fastness To Light
General specifications
Packaging Dimensions: (W x D x H) 1280×1150×2200mm
Power supply source: AC380V±10%, 50/60Hz (can be appointed)
Gross Weight: 400kg
Introduction
This machine designed to meet the requirements of ISO 105 B02 and AATCC Test Method 16 standards. It has a rotating specimen rack and provides precise control of critical test parameters including spectrum, irradiance, relative humidity, chamber temperature and black standard temperature.
Usage
To determine the resistance of the color of textiles to fade when exposed to artificial light (xenon arc) which is representative of natural daylight.
Testing standards
ISO 105-B02 Textiles -- Tests for color fastness -- Part B02: Color fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04 Textiles -- Tests for color fastness -- Part B04: Color fastness to artificial weathering: Xenon arc fading lamp test
AATCC TM 16 – Option 3 Colorfastness to Light: Xenon-Arc
features
1. Xenon lamp ventilation and cooling device: The temperature ventilation and cooling system of chamber is cooled by Taiwan's high temperature resistant turbine fan, and the cooling system in the box is cooled.
2. Light box temperature alarm device: The temperature in the light box can be monitored by PT100 high-precision sensor to monitor the over-temperature alarm and cut off the power of the xenon lamp.
3. The blackboard thermometer adopts wired transmission technology, which effectively improves the control accuracy. (using high temperature resistant isolation shielded communication line)
Technical parameters
Internal Dimension (W*D*H) | 600×600×800 | |
External Dimension (W*D*H) | 1220×1100×2100 | |
performance indicators | Chamber temperature | 10~95℃ |
Temperature accuracy | ±5℃ | |
Black panel temperature | 30~110℃ | |
Chamber humidity range | 15%RH~85%RH | |
Humidity accuracy | ±5%RH | |
Irradiance Range | 420nm | |
Irradiance strength | 0.55~1.3W/m2 | |
Irradiance accuracy | ±0.03W/m2/ | |
Xenon lamp power | 2500W air-cooled xenon arc lamp (recommend replacing lamps every 1200 hours) | |
Rack rotating speed | 5r/min | |
Test Positions | 10 pieces of 145x 45mm, 5 pieces of 145x 75mm | |
Exposure Area of each Test Position |
ISO 65.25cm² (145 x 45) mm AATCC 108.75cm² (145 x 75) mm |
|
operation control system | water spray system | The water spray time can be set in 999 minutes, and the spray stop time can be set in 999 minutes |
Accuracy range | Setting/indication accuracy: temperature 0.1℃, humidity 1%RH | |
Temperature and humidity sensor | Platinum resistance.PT100Ω/MV | |
Heating system | Fully independent system, nickel-chromium alloy electric heating heater | |
humidification system | External isolation, all stainless steel shallow surface evaporative humidifier | |
blackboard temperature | Bimetal Blackboard Thermometer | |
circulatory system | Temperature-resistant and low-noise air-conditioning motor. Multi-blade centrifugal fan | |
material | Internal chamber material | High-quality carbon steel plate, phosphating electrostatic spray treatment / stainless steel matte line hairline treatment |
External chamber material | SUS 304 # Stainless Steel, anti-rust | |
Sample holder material | SUS 304 # Stainless Steel, anti-rust | |
Standard accessories | radiation-proof glass windows-1 set, Xenon lamp-1 PC | |
safety protection | Leakage, short circuit, over temperature, water shortage, motor overheating, overcurrent protection | |
Power supply | AC380V±10% 50±0.5Hz,13W |
