| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | HAIDA |
| Certification: | CE,ISO |
| Model Number: | HD-E711 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 30 Sets per Month Haida |
| Internal Dimension (W*D*H): | 600×600×800 | External Dimension (W*D*H): | 1220×1100×2100 |
|---|---|---|---|
| Chamber Temperature: | 10～95℃ | Temperature Accuracy: | ±5℃ |
| Black Panel Temperature: | 30～110℃ | Chamber Humidity Range: | 15％RH～85％RH |
| High Light: | Xenon Arc Light Fastness Tester,Lab Arc Light Fastness Tester |
||

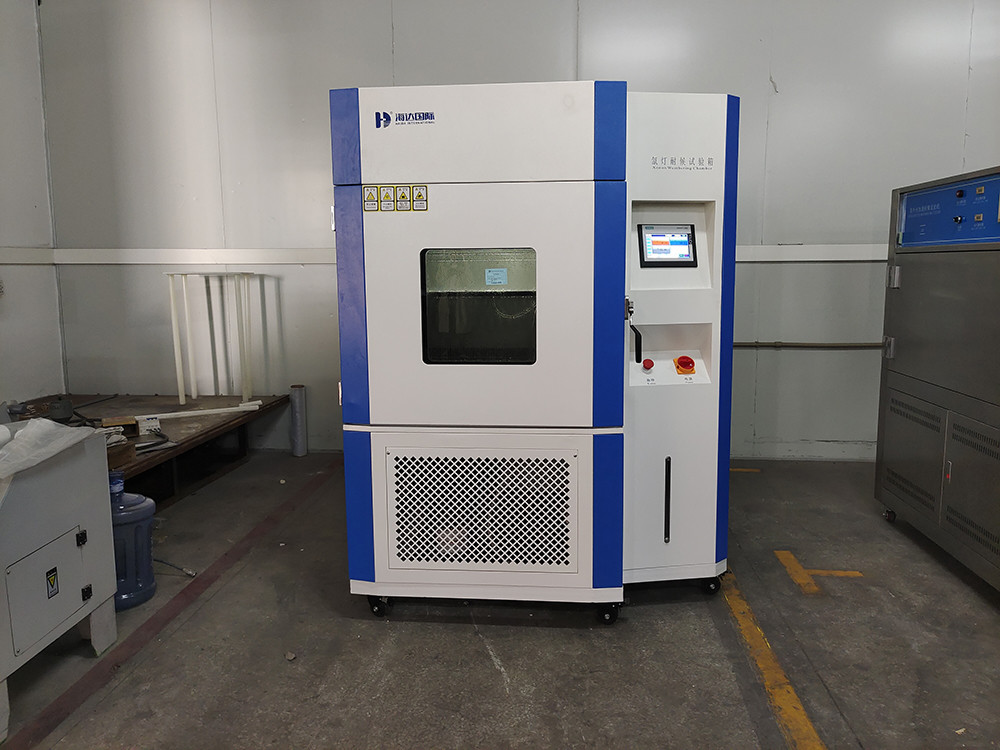

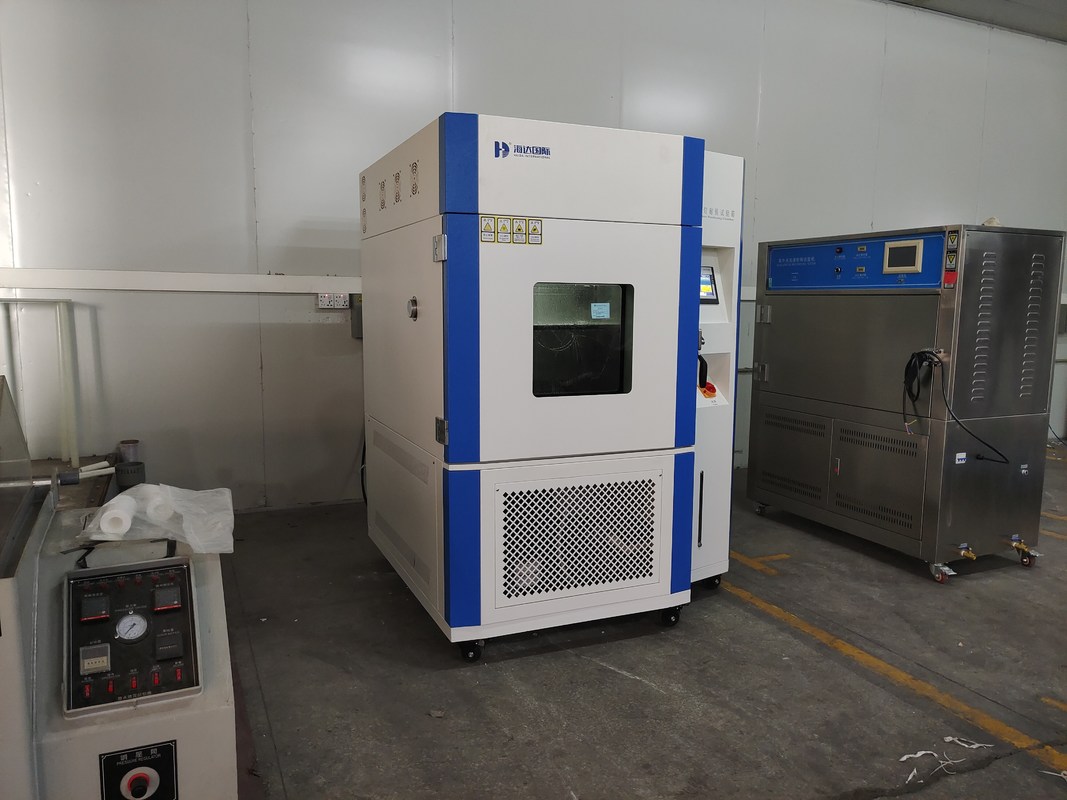

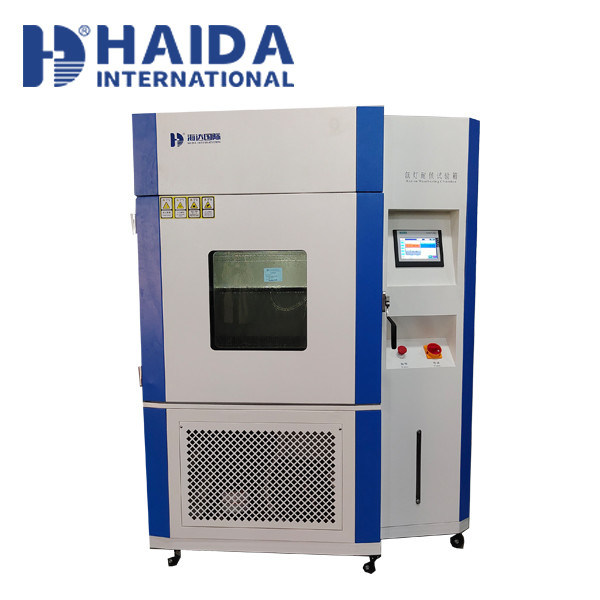

Lab Solar Simulator Xenon Arc Light Fastness Tester Textile Color Fastness To Light
Xenon Arc Light Fastness Tester is specifically designed for light colour fastness testing on textiles, leather and other materials after being exposed to the simulated conditions of nature weather (daylight, rain, temperature and humidity, etc.)
The xenon arc test chamber can test a range of standards test methods, including ISO105-B02 / B04, AATCC 16, etc.
APPLICATIONS AND STANDARDS
Our Xenon Arc Light Fastness Tester is designed to meet the requirements of ISO 105 B02/B04 and AATCC Test Method 16 standards. It has a rotating specimen rack and provides precise control of critical test parameters including spectrum, irradiance, relative humidity, chamber temperature and black standard temperature.
To determine the resistance of the color of textiles to fade when exposed to artificial light (xenon arc) which is representative of natural daylight.
Standard: A Standard can be selected from a pre-programmed list or the user can define their own method.
Featured
Standard
AATCC TM16
Colorfastness to Light
This test method provides the general principles and procedures which are currently in use for determining the colorfastness to light of textile materials.
Weather Resistance of Textiles: Xenon Lamp Exposure
This test method provides the procedure for the exposure of textile materials of all kinds, including coated fabrics and products made thereof, in an artificial weathering apparatus using controlled conditions of test.
ISO 105-B02 (EN) (DIN)
Textiles-Tests for colour fastness- Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04 (EN) (DIN)
Textiles - Tests for Colour Fastness - Part B04. Colour Fastness to Artificial Weathering: Xenon Arc Fading Lamp Test
GB/T 8427
Textiles-Tests for colour fastness-Colour fastness to artifical light:Xenon arc fading lamp test
This standard specifies a method to determine the color fastness of various types of textiles to the artificial light effect equivalent to sunlight (D65). This standard can also be used for white (bleached or fluorescent whitened) textiles.
Feature
Feature

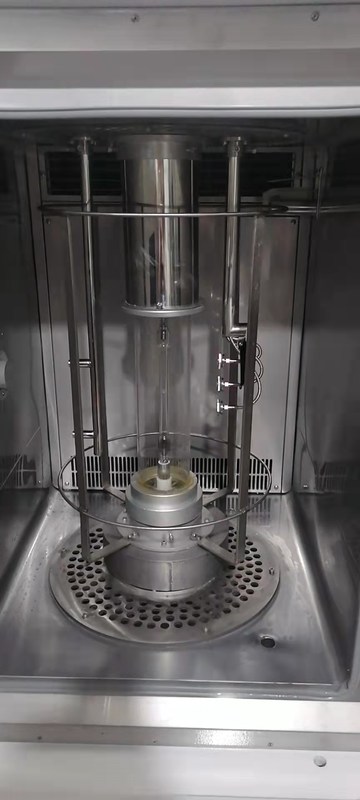

EASY TO ACCESS AND FIT THE LAMP
Specimen holders
All stainless steel material,
easy to install and remove, can meet various test standard
Xenon, Air-Cooled Lamp
The lamp is very easy to fit and replace for users.
With High performance, long lasting, air-cooled xenon lamp.
COMPACT INSTRUMENT WITH EXCELLENT CAPACITY
The rotary design of the specimen holder maximises
the available testing capacity, offering Irradiance 420nm Range at 0.550~1.3W/m2
ADVANCED SOFTWARE MADE SIMPLE Menu Screen
The user interface is clear and easy to navigate, and starting the testing easy and efficient.
Key Specification
| Internal Dimension (W*D*H) | 600×600×800 | |
| External Dimension (W*D*H) | 1220×1100×2100 | |
| performance indicators | Chamber temperature | 10～95℃ |
| Temperature accuracy | ±5℃ | |
| Black panel temperature | 30～110℃ | |
| Chamber humidity range | 15％RH～85％RH | |
| Humidity accuracy | ±5％RH | |
| Irradiance Range | 420nm | |
| Irradiance strength | 0.55～1.3W/m2 | |
| Irradiance accuracy | ±0.03W/m2/ | |
| Xenon lamp power | 2500W air-cooled xenon arc lamp (recommend replacing lamps every 1200 hours) | |
| Rack rotating speed | 5r/min | |
| Test Positions | 10 pieces of 145x 45mm, 5 pieces of 145x 75mm | |
| Exposure Area of each Test Position |
ISO 65.25cm² (145 x 45) mm AATCC 108.75cm² (145 x 75) mm |
|
| operation control system | water spray system | The water spray time can be set in 999 minutes, and the spray stop time can be set in 999 minutes |
| Accuracy range | Setting/indication accuracy: temperature 0.1℃, humidity 1%RH | |
| Temperature and humidity sensor | Platinum resistance.PT100Ω/MV | |
| Heating system | Fully independent system, nickel-chromium alloy electric heating heater | |
| humidification system | External isolation, all stainless steel shallow surface evaporative humidifier | |
| blackboard temperature | Bimetal Blackboard Thermometer | |
| circulatory system | Temperature-resistant and low-noise air-conditioning motor. Multi-blade centrifugal fan | |
| material | Internal chamber material | High-quality carbon steel plate, phosphating electrostatic spray treatment / stainless steel matte line hairline treatment |
| External chamber material | SUS 304 # Stainless Steel, anti-rust | |
| Sample holder material | SUS 304 # Stainless Steel, anti-rust | |
| Standard accessories | radiation-proof glass windows-1 set, Xenon lamp-1 PC | |
| safety protection | Leakage, short circuit, over temperature, water shortage, motor overheating, overcurrent protection | |
| Power supply | AC380V±10％ 50±0.5Hz, 13W | |
